Floor plan measurements in Vancouver serve different purposes depending on the property and project stage. A real estate agent may need MLS floor plans to help buyers understand layout and room flow. A homeowner planning a renovation may need accurate floor plans before speaking with a designer or contractor. An architect may need as-built CAD drawings before preparing permit drawings. A commercial landlord or tenant may need property measurement documentation to understand usable space, tenant boundaries, and lease planning. The key is that not all floor plans are created for the same purpose. Basic marketing plans are useful for sales and leasing presentation, but renovation, permit, design, and construction workflows often require more precise existing-condition documentation. For complex homes, commercial spaces, older buildings, or projects with structural and mechanical implications, 3D laser scanning or scan-to-CAD documentation may provide a stronger measured base. The practical takeaway is to define how the floor plan will be used before ordering measurements.

Floor Plan Measurements in Vancouver: MLS, Renovation, Permit, and Design Use Cases

What Floor Plan Measurements Vancouver Means

Floor plan measurements Vancouver refers to the process of measuring a property and creating floor plan documentation for a specific purpose. That purpose may be real estate marketing, MLS listing support, renovation planning, interior design, permit coordination, commercial leasing, or as-built documentation. A floor plan measuring service may produce simple PDF plans, dimensioned drawings, CAD files, area plans, or more detailed as-built drawings depending on the project. The practical rule is to match the measurement method and deliverable to the decision the floor plan must support.

Floor plan measurements are useful because they turn a physical property into a clear spatial record. Buyers, sellers, homeowners, designers, architects, contractors, landlords, and tenants all need to understand how a space is arranged. However, each group uses floor plans differently. A buyer may need room flow, while a contractor may need dimensions and scope clarity. This difference is why one generic floor plan does not fit every use case.

In Vancouver and Greater Vancouver, floor plan measurements are especially important because many properties have been renovated, reconfigured, or modified over time. A condo, house, retail unit, office, warehouse, or mixed-use building may not match old plans or marketing documents. Accurate property measurement Vancouver services help create a current record of what exists now. The practical takeaway is to measure the current property before relying on old drawings, listing plans, or assumptions.

MLS Floor Plans Vancouver: What They Are Used For

MLS floor plans Vancouver are usually created for real estate marketing and buyer orientation. These plans help potential buyers understand room layout, circulation, bedroom placement, kitchen relationships, outdoor access, and the general flow of the property. A clear floor plan can make a listing easier to understand than photos alone. The practical value is communication, not construction precision.

MLS floor plans are often simpler than renovation-grade as-built drawings. They may show room names, approximate dimensions, overall layout, and total area information depending on the service and listing requirements. This is usually enough for buyers comparing properties online. However, MLS floor plans are not usually intended to support structural changes, permit drawings, or detailed contractor estimates. Sellers and agents should not treat listing plans as technical construction documents.

MLS floor plans can still be valuable after a sale. A buyer may use the plan for early furniture planning, renovation discussions, or rough design ideas. But if the buyer plans a major renovation, the property should usually be measured again or verified at a higher level of detail. The practical takeaway is that MLS floor plans are excellent for marketing and orientation, but not always sufficient for design or permitting.

Renovation Floor Plan Measurements

Renovation floor plan measurements document the existing layout before a homeowner, designer, architect, or contractor begins planning changes. These measurements may include walls, room dimensions, doors, windows, stairs, ceiling heights, fixed elements, and other visible existing conditions depending on scope. For Vancouver renovations, accurate floor plans help the design team understand what is actually there before proposing what should change. The practical rule is to measure before redesigning.

Renovation floor plans are more technical than basic marketing plans because the drawings influence design and cost decisions. A kitchen layout, bathroom redesign, basement renovation, wall removal, or addition can all depend on current dimensions and existing constraints. If the floor plan is wrong, the proposed design may need to be revised later. Homeowners should order accurate floor plans before committing to detailed layouts, custom millwork, or contractor pricing.

Renovation floor plan measurements can also help contractors price work more consistently. Contractors use floor plans to understand room sizes, demolition scope, access, material quantities, and layout constraints. If several contractors receive the same measured floor plans, their estimates are easier to compare. The practical takeaway is that accurate floor plans support both design clarity and budget control.

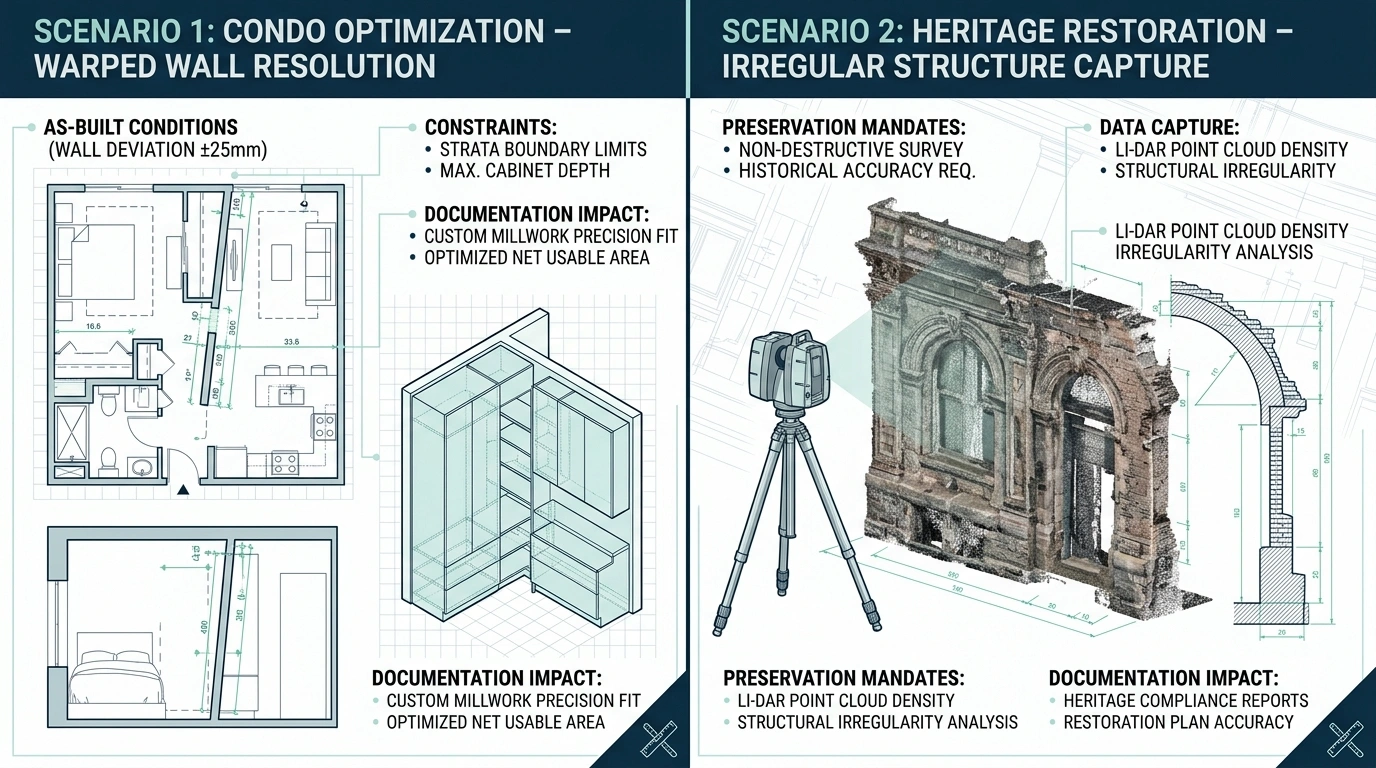

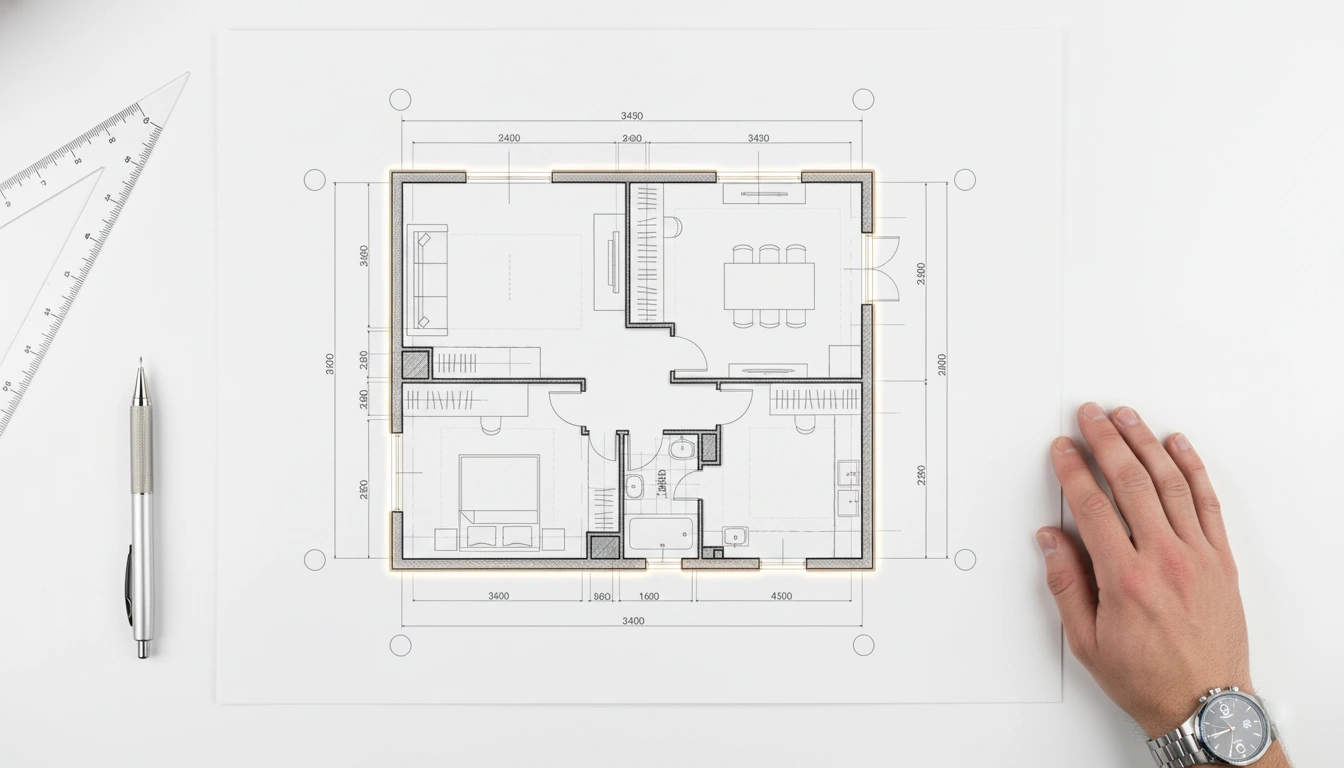

Floor Plan Measurements for Interior Design

Floor plan measurements for interior design help designers plan layouts, furniture, millwork, kitchens, bathrooms, lighting, circulation, and spatial relationships. Designers need more than general room names; they often need accurate wall lengths, opening locations, window positions, ceiling heights, and fixed elements. A room that looks flexible in photos may have constraints that only appear once it is measured. The practical recommendation is to give designers accurate existing floor plans before detailed design begins.

Interior design floor plans do not always need the same detail as permit or construction drawings. A furniture plan may only require room dimensions and openings, while custom cabinetry may require wall elevations, ceiling heights, and more precise measurements. The right level of detail depends on what the designer is planning. Clients should explain whether the drawings will support furniture placement, kitchen design, bathroom design, millwork, or full renovation planning.

Accurate floor plans also reduce the risk of ordering products that do not fit. Cabinets, appliances, furniture, fixtures, and built-ins can become expensive problems when measurements are wrong. A professional floor plan measuring service helps create a reliable base before design choices become purchases. The practical takeaway is that interior design measurements should be scoped around the decisions the designer must make.

Floor Plan Measurements for Permit Applications

Floor plan measurements for permit applications usually need to be more accurate and more structured than MLS plans. Permit-related documentation may need to show existing and proposed layouts, dimensions, stairs, openings, elevations, sections, structural changes, or other project-specific information. The exact requirements depend on the municipality, property type, and renovation scope. The practical rule is to confirm permit drawing needs before ordering measurements.

Accurate existing floor plans often come before permit drawings. If a designer or architect prepares proposed permit drawings from weak existing information, the drawing package may contain conflicts that need correction later. This can affect timelines, consultant coordination, and contractor pricing. Property owners should document existing conditions before preparing detailed permit applications.

Floor plan measurements do not guarantee permit approval. Permit outcomes depend on the proposed design, local review process, zoning, building code requirements, professional responsibility, and project-specific conditions. However, accurate floor plans can support clearer documentation because the design team is starting from verified existing conditions. The practical takeaway is to treat floor plan measurements as a documentation foundation, not as an approval guarantee.

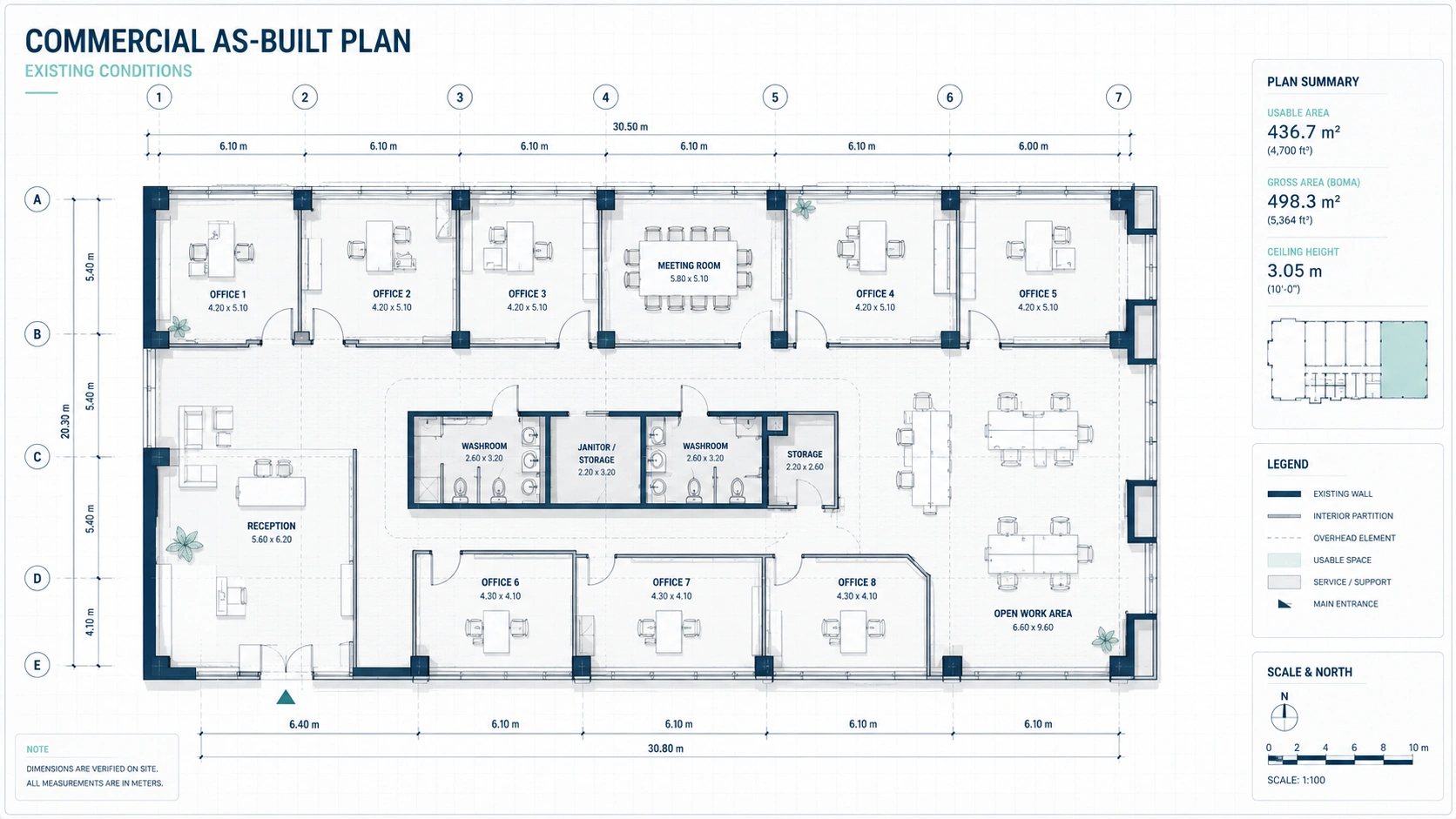

Floor Plan Measurements for Commercial Leasing

Floor plan measurements for commercial leasing help landlords, tenants, brokers, and property managers understand how a space is organized and used. Commercial plans may show offices, retail areas, storage rooms, service spaces, washrooms, demising walls, loading areas, circulation, and tenant boundaries. For leasing decisions, layout and usable area can be just as important as total square footage. The practical recommendation is to use current floor plans when discussing commercial space.

Commercial leasing floor plans can support early tenant improvement planning. A tenant may need to know whether a space can support offices, retail display, treatment rooms, warehouse storage, production areas, or customer circulation. A landlord may need to show existing layout, shared spaces, and possible division options. Accurate property measurement Vancouver services help both sides understand the current space before negotiations or improvements move forward.

Commercial leasing plans are not always the same as construction-ready drawings. A broker plan may be enough for marketing, but tenant improvements often require more technical documentation. If the tenant plans to build partitions, change services, add equipment, or apply for permits, the project may need as-built CAD drawings or a more detailed measurement package. The practical takeaway is to increase documentation detail when the lease use creates construction implications.

Real Estate Floor Plans vs Accurate Floor Plans vs As-Built Drawings

Real estate floor plans, accurate floor plans, and as-built drawings are related, but they serve different purposes. Real estate floor plans are usually used for marketing and layout communication. Accurate floor plans provide more reliable measurements for planning and decision-making. As-built drawings document existing building conditions in a more technical format for design, renovation, permitting, or construction coordination. The practical rule is to choose the drawing type based on use case.

The wrong floor plan type can slow a project down. A real estate floor plan may look professional, but it may not include the dimensions, file formats, or technical detail a designer needs. A full scan-to-BIM model may be unnecessary for a simple MLS listing. The practical takeaway is to avoid over-ordering or under-ordering by defining the purpose first.

Property Measurement Vancouver: What Can Be Measured

Property measurement Vancouver services can measure residential, commercial, industrial, and mixed-use spaces depending on the provider and scope. For residential projects, the measurement may include condos, townhomes, detached homes, basement suites, additions, garages, and exterior relationships. For commercial projects, it may include offices, retail units, restaurants, clinics, warehouses, and tenant improvement spaces. The practical recommendation is to choose a measurement team familiar with the property type.

The elements measured depend on the final deliverable. A basic floor plan may include room layout, doors, windows, and dimensions. A renovation package may include ceiling heights, stairs, fixed cabinetry, plumbing fixture locations, and wall relationships. A commercial package may include demising walls, service areas, shared corridors, and tenant boundaries. A permit-support package may need more structured existing and proposed information. Clients should define which elements matter before measurement begins.

Property measurement can also include digital deliverables. Depending on the project, clients may need PDF plans, DWG files, CAD drawings, Revit models, point clouds, elevations, sections, or area plans. The best deliverable depends on who will use the files. Homeowners may need readable PDFs, while architects may need editable CAD or BIM files. The practical takeaway is to ask the end user what format is required.

When Simple Measuring Is Enough

Simple measuring may be enough for low-risk use cases. A basic MLS plan, furniture planning exercise, cosmetic room update, or early space review may not need 3D laser scanning or detailed as-built documentation. Manual measurement or a basic floor plan measuring service can provide enough information when the decision is simple and the cost of error is low. The practical rule is to match measurement effort to risk.

Simple measuring may also be enough when the space is small, regular, and easy to access. A simple rectangular room, small condo, or basic office layout may not justify advanced scanning. If the floor plan is only being used for visual communication, a lighter measurement package can be practical. Clients should avoid paying for technical deliverables that no one will use.

Simple measuring becomes less appropriate when the project moves toward renovation, permit coordination, contractor pricing, or commercial improvements. In those cases, missing dimensions or inaccurate layout information can create redesign, pricing gaps, or site conflicts. The practical takeaway is that simple measuring is good for simple decisions, while accurate floor plans are needed for higher-risk decisions.

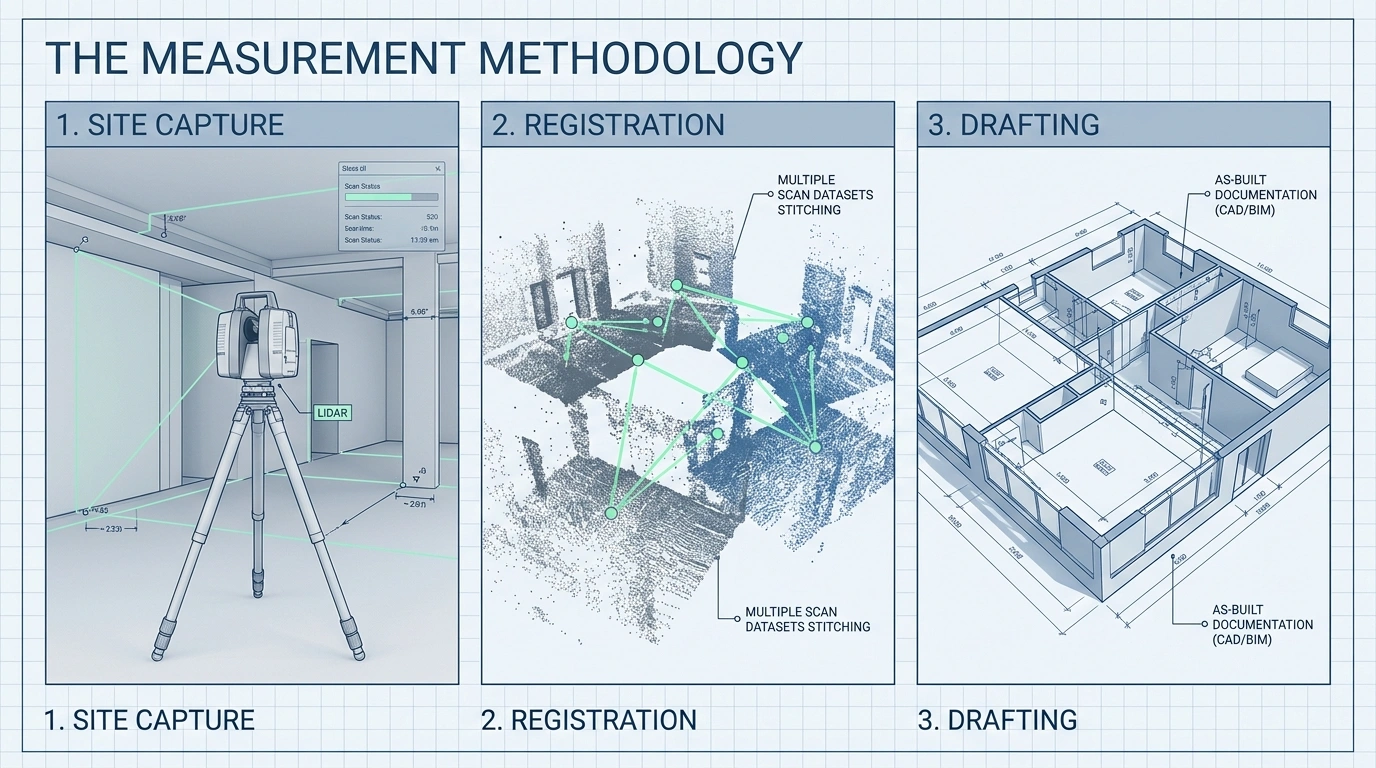

When 3D Laser Scanning or Scan-to-CAD Is Worth It

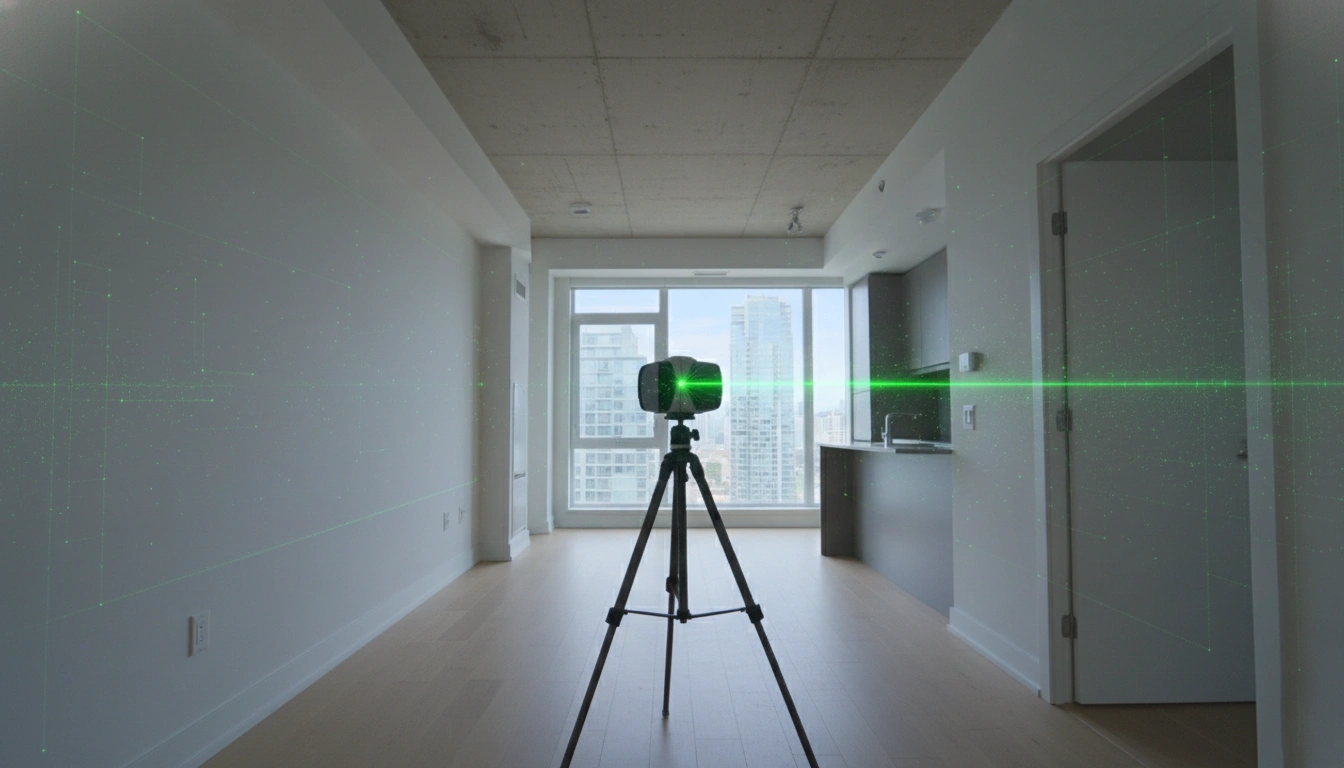

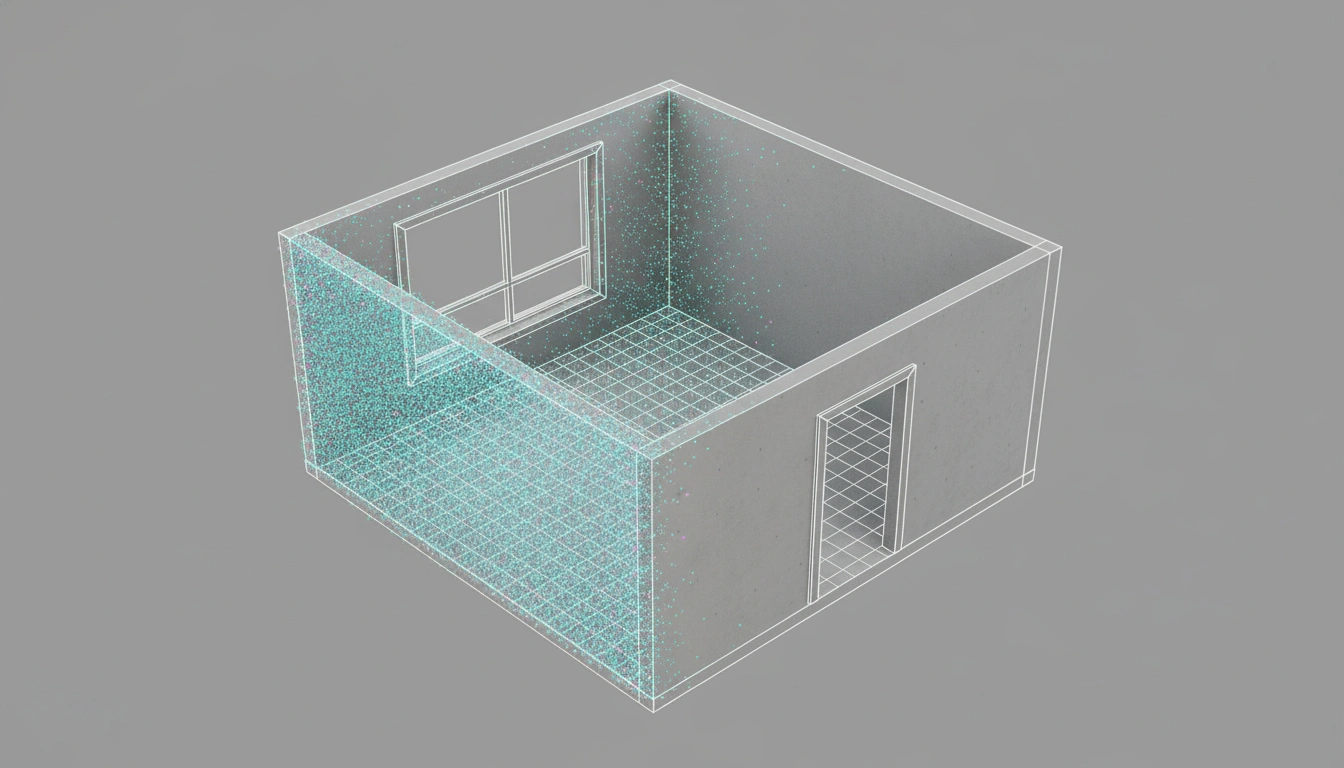

3D laser scanning or scan-to-CAD is worth it when the building is complex, older, irregular, multi-level, or difficult to measure manually. Laser scanning captures visible building geometry as point cloud data, which can then be converted into CAD drawings, floor plans, elevations, sections, or BIM models. This can be useful for older Vancouver homes, heritage properties, commercial tenant improvements, industrial spaces, and buildings with complex geometry. The practical rule is to use scanning when measurement gaps could become expensive later.

Scan-to-CAD is useful when designers or architects need editable drawings from accurate existing conditions. A point cloud can be converted into DWG files that support renovation planning, proposed layouts, permit-support drawings, and contractor coordination. Scan-to-CAD may be more practical than scan-to-BIM when the project needs accurate 2D drawings rather than a full Revit model. Clients should ask their design team whether CAD files are required.

3D laser scanning can also reduce repeated site visits. When a building is captured more comprehensively, the drafting or design team may be able to reference the scan data later instead of returning to site for every missed dimension. This can be especially useful for commercial, occupied, or hard-to-access properties. The practical takeaway is that scanning is often worth it when site access is limited or future measurement questions are likely.

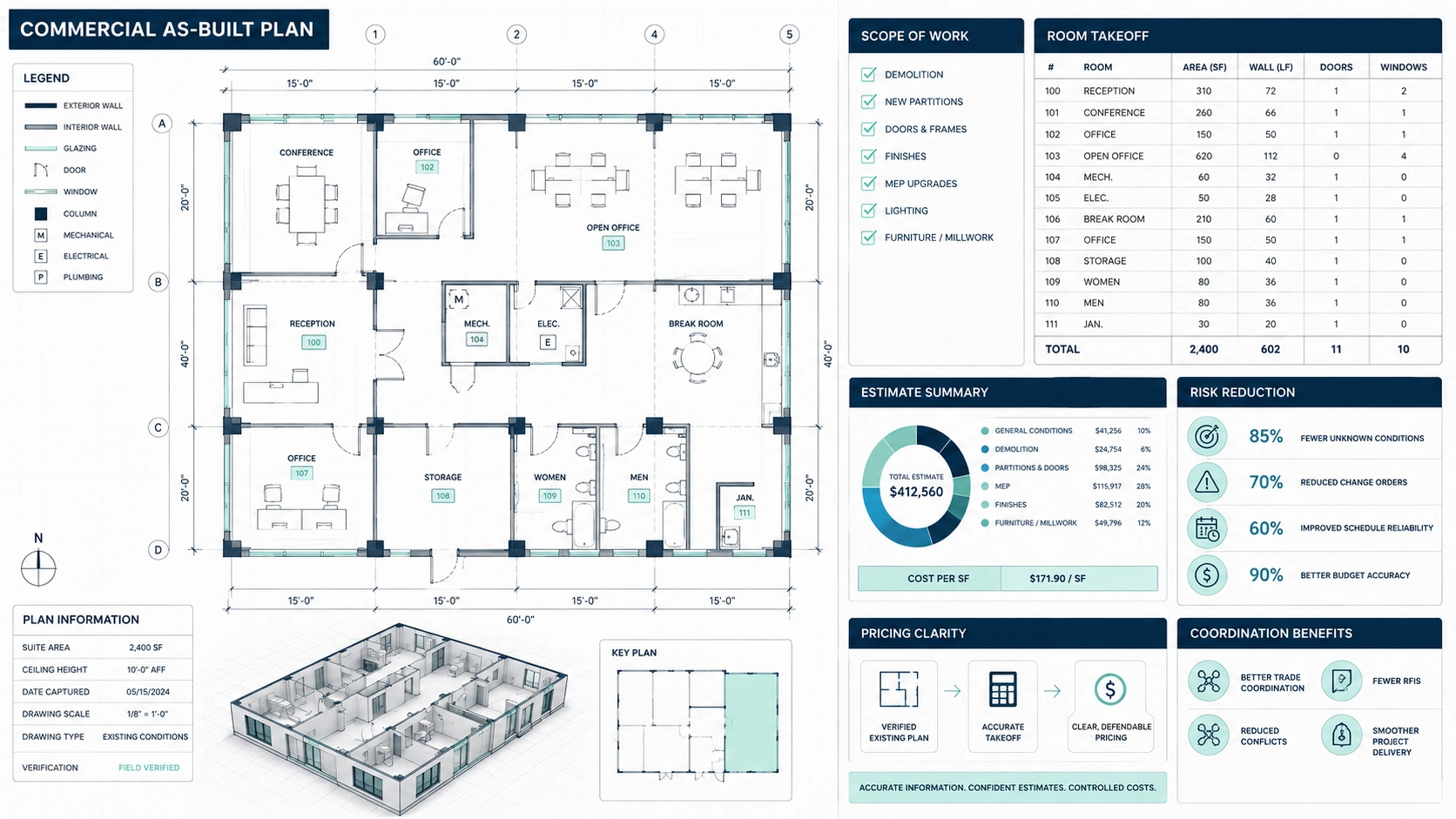

How Accurate Floor Plans Affect Contractor Estimates and Change Orders

Accurate floor plans affect contractor estimates because contractors rely on dimensions and layout information to price work. Floor areas, wall lengths, openings, stairs, demolition scope, finish quantities, and access conditions can all affect cost. If the drawings are vague or inaccurate, contractors may add contingencies or exclude uncertain work. Owners should provide the same accurate floor plans to all bidding contractors.

Accurate floor plans can reduce change order risk by identifying visible existing-condition constraints earlier. If a proposed renovation is based on wrong dimensions, problems may appear during demolition, fabrication, or installation. Accurate floor plans help the design and construction team resolve more issues before construction begins. The practical takeaway is that better measurement can move some risk into planning instead of the field.

Accurate floor plans do not eliminate every change order. Hidden structure, concealed services, hazardous materials, owner scope changes, and code-related revisions can still affect a project. The value of accurate measurement is that it reduces avoidable errors related to visible building conditions. Owners should treat floor plan measurements as one part of renovation risk control.

How Floor Plan Measurements Support Permit and Design Coordination

Floor plan measurements support permit and design coordination by creating a reliable existing-condition base. Designers and architects can use measured floor plans to develop proposed layouts, prepare demolition plans, coordinate consultants, and create permit-support drawings. If the existing base is wrong, the proposed drawings may inherit the same errors. Property owners should verify the existing layout before detailed design or permit preparation begins.

Permit applications may require different documentation depending on the project. A small interior change may need limited drawings, while an addition, suite conversion, structural alteration, or commercial tenant improvement may require more detailed plans, elevations, sections, or consultant information. Floor plan measurements do not replace professional design review, but they can support clearer documentation. The practical recommendation is to ask the design team what drawings are needed before measurement.

Floor plan measurements also help design communication. Homeowners, designers, architects, contractors, and consultants may all need to understand the same space. A measured floor plan gives everyone a common reference. This reduces confusion when discussing layout options, budget, permit needs, or construction scope. The practical takeaway is that accurate floor plans make project conversations more productive.

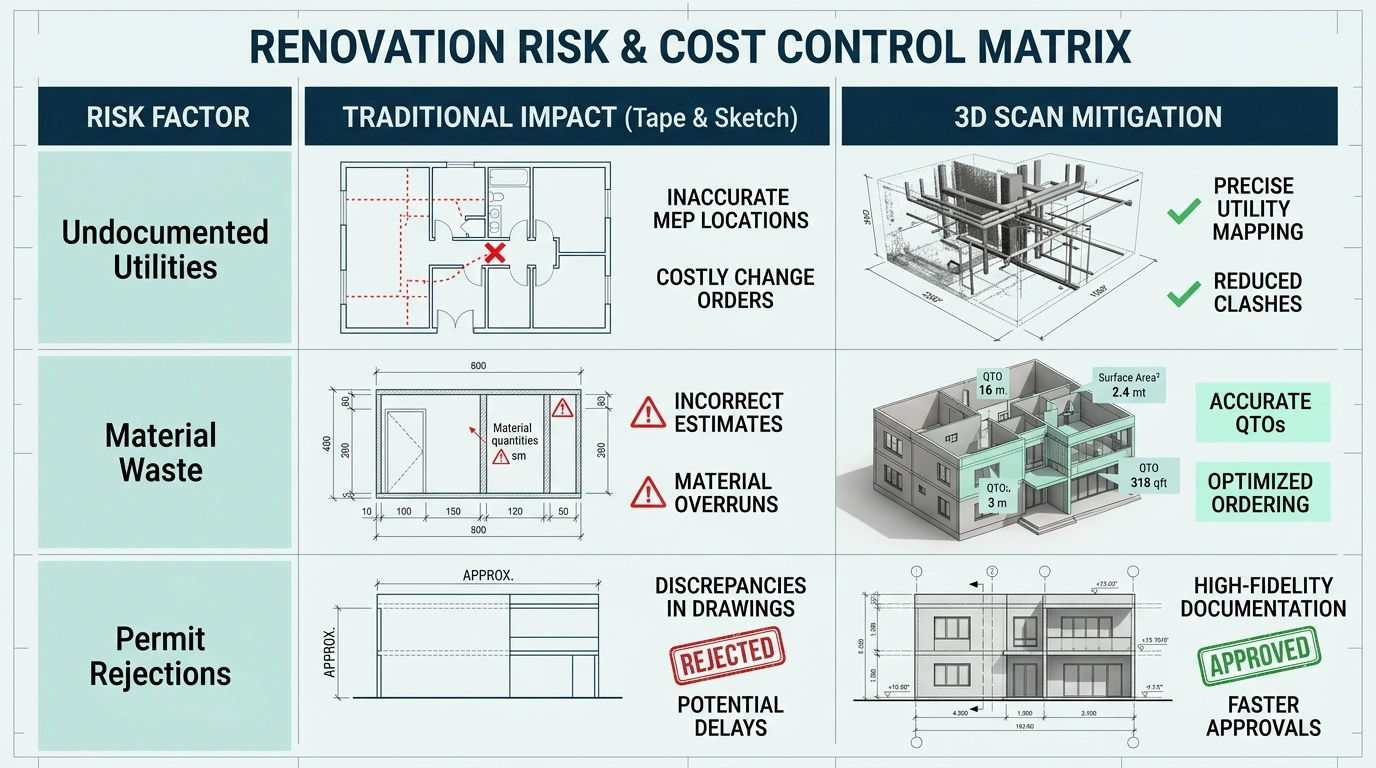

Risk and Cost Control Matrix for Floor Plan Measurements

A risk and cost control matrix helps clients choose the right measurement level. The cheapest floor plan is not always the best choice if the drawing will be used for design, permit coordination, or contractor pricing. At the same time, a full scan-to-BIM model may be unnecessary for a simple MLS listing. The practical rule is to match documentation cost to project risk.

The matrix should be reviewed before choosing a floor plan measuring service. Clients should ask whether the floor plan is for marketing, design, permit support, contractor pricing, or lease documentation. The answer determines the required level of accuracy, detail, and file format. Good measurement is not only about measuring correctly; it is about measuring for the right purpose.

Common Mistakes When Ordering Floor Plan Measurements

A common mistake is ordering MLS floor plans and then trying to use them for renovation or permit work. MLS plans may be clear and useful, but they are usually created for marketing. Renovation and permit work may require more detail, more precision, and different file formats. Clients should avoid using marketing drawings as technical documentation unless the scope confirms they are suitable.

Another mistake is not telling the measurement provider how the plans will be used. If the provider does not know the floor plans are for a kitchen renovation, commercial lease, permit application, or contractor bid, they may produce the wrong level of detail. A good floor plan measuring service should ask about the use case before quoting. Clients should explain the purpose clearly at the beginning.

A third mistake is ignoring file formats. A PDF may be enough for a homeowner, but an architect may need DWG files or a Revit model. A contractor may need dimensioned drawings, while a commercial landlord may need area documentation. If the wrong format is delivered, the project may require extra drafting later. The practical takeaway is to confirm file formats with the end user.

A fourth mistake is relying on old plans without verification. Old blueprints, strata plans, real estate plans, and previous renovation drawings may be helpful references, but they may not match the current property. If the project depends on current dimensions, the building should be measured. Clients should treat old plans as background information, not confirmed existing conditions.

Practical Decision Guide: Which Floor Plan Measurement Do You Need?

The right floor plan measurement depends on the next project decision. A seller needs a plan that helps buyers understand the listing. A designer needs a plan that supports layout decisions. A contractor needs a plan that helps price work. A municipality may require drawings that communicate proposed changes. A landlord may need plans that explain leasable or usable space. The practical rule is to choose the measurement package based on the user.

The decision guide should be used before the appointment is booked. If a client orders a basic plan but later needs CAD files or elevations, additional work may be required. If the measurement team knows the final use upfront, they can capture the right information during the first visit. The practical takeaway is to define the deliverable before measuring.

How to Prepare for a Floor Plan Measuring Appointment

Clients should prepare for a floor plan measuring appointment by making the required spaces accessible. The measurement team may need to access rooms, closets, garages, basements, balconies, exterior areas, commercial service spaces, tenant areas, or mechanical rooms depending on scope. Locked doors, stored items, blocked walls, or restricted areas can create incomplete documentation. The practical recommendation is to clear access before the appointment.

Clients should gather available documents before the visit. Old floor plans, strata plans, real estate plans, renovation sketches, lease plans, and permit records can help the measurement team understand the property. These documents should be treated as reference material, not verified current conditions. A good measurement process can compare existing records with what is actually present.

Clients should explain the intended use of the floor plan. A plan for MLS, interior design, renovation, permit coordination, or commercial leasing may require different information. If ceiling heights, exterior elevations, tenant boundaries, or CAD files are needed, those requirements should be known before measurement begins. Good preparation helps the floor plan measuring service produce the right deliverables.

Key Takeaways

Floor plan measurements Vancouver services support multiple use cases, including MLS listings, renovation planning, interior design, permit applications, commercial leasing, and property documentation. The most important decision is not whether to order a floor plan, but what type of floor plan the project actually needs. Marketing plans, accurate floor plans, as-built CAD drawings, and scan-to-CAD deliverables serve different purposes.

MLS floor plans Vancouver are useful for property marketing and buyer orientation, while renovation and permit workflows often need more accurate existing-condition documentation. Commercial leasing may require area plans and tenant layout documentation. Interior design may need dimensions and elevations. Contractor pricing may require clear, accurate, and consistent drawings.

The best next step is to define the floor plan use case before measurement begins. Ask who will use the drawings, what file format is needed, what level of detail is required, and whether simple measuring or 3D laser scanning is appropriate. Good floor plan measurements reduce confusion by giving every stakeholder a clearer understanding of the property.

FAQ

What are floor plan measurements Vancouver services?

Floor plan measurements Vancouver services measure properties and create floor plans for real estate, renovation, interior design, permit coordination, commercial leasing, and property documentation. Deliverables may include PDF floor plans, DWG files, area plans, as-built drawings, scan-to-CAD files, or BIM models depending on the project. The right service depends on how the floor plan will be used.

What are MLS floor plans Vancouver used for?

MLS floor plans Vancouver are used to help market a property and show buyers the layout. They usually communicate room flow, room names, approximate dimensions, and overall space relationships. MLS floor plans are useful for listings and buyer orientation, but they are not always detailed enough for renovation, permit applications, or construction documentation.

Can I use MLS floor plans for renovation?

MLS floor plans can help with early renovation ideas, but they should not automatically be used as technical renovation drawings. Renovation planning often requires more accurate floor plans, CAD files, elevations, or as-built drawings. If the project involves layout changes, contractor pricing, permits, or custom millwork, the property should usually be measured at a higher documentation level.

What is the difference between property measurement and floor plans?

Property measurement is the process of capturing dimensions and spatial information from the property. Floor plans are one of the deliverables created from that measurement. Depending on the scope, property measurement may also support area plans, CAD drawings, elevations, sections, Revit models, or commercial leasing documentation. The deliverable should match the project purpose.

When do I need accurate floor plans?

You need accurate floor plans when the drawings will affect design, contractor estimates, permit coordination, tenant improvements, commercial leasing, or construction planning. Basic plans may be enough for marketing or early review, but more accurate documentation is needed when decisions depend on current dimensions. Accurate floor plans help reduce assumptions before larger commitments are made.

Do floor plan measurements help with permit applications?

Floor plan measurements can support permit applications by providing a reliable existing-condition base for the design team. Many permit-related projects require drawings that show existing and proposed conditions. Floor plan measurements do not guarantee permit approval, because approval depends on design, zoning, building code requirements, municipal review, and professional responsibility. They help by improving documentation clarity.

What floor plans are needed for commercial leasing?

Commercial leasing may require floor plans that show the current layout, usable areas, tenant boundaries, service rooms, shared spaces, offices, retail areas, loading areas, or storage zones. The level of detail depends on the leasing discussion and intended tenant use. If tenant improvements are planned, as-built CAD drawings may be needed in addition to marketing floor plans.

When should I choose 3D laser scanning for floor plans?

Choose 3D laser scanning for floor plans when the building is complex, older, irregular, large, multi-level, or difficult to measure manually. Scanning is also useful when the project requires CAD files, BIM models, elevations, sections, or detailed as-built documentation. Simple measuring may be enough for small, low-risk spaces, but scanning is stronger when measurement errors could be expensive.

What file formats should I ask for?

Ask for file formats based on who will use the plans. Real estate and owner review may only need PDFs. Architects and designers often need DWG files. BIM teams may need Revit or IFC files. Technical teams may need point clouds. Before ordering floor plan measurements, ask your agent, designer, architect, contractor, or landlord what format they need.

How should I prepare for a floor plan measuring appointment?

Prepare by making all required spaces accessible, clearing major obstructions, unlocking rooms, and sharing any old plans or records. Explain whether the plans are for MLS, renovation, interior design, permit applications, or commercial leasing. The measurement team can capture better information when they understand the final use case before the appointment.

Conclusion

Floor plan measurements in Vancouver can support property sales, renovation planning, interior design, permit applications, commercial leasing, and long-term property documentation. The key is choosing the right level of measurement for the right use case. MLS floor plans help buyers understand a listing, but renovation and permit workflows often need accurate floor plans or as-built CAD drawings. Commercial leasing may need area documentation and tenant layout plans. Complex buildings may benefit from 3D laser scanning or scan-to-CAD deliverables. Before ordering a floor plan measuring service, define who will use the drawings, what decision they support, and which file formats are required. That is how floor plan measurements become useful project documentation instead of just another drawing.

Industrial as built floor plans are essential existing-condition documents for warehouses, manufacturing areas, logistics facilities, service buildings, and large commercial spaces in British Columbia. These drawings help project teams understand how a facility is actually configured before renovation, tenant improvement, equipment installation, racking changes, safety upgrades, or building permit coordination. In industrial buildings, small documentation gaps can affect equipment clearances, storage layouts, forklift circulation, structural coordination, egress planning, loading areas, and contractor estimates. For complex or large facilities, industrial 3D scanning in Vancouver and across BC can provide a stronger measured baseline than manual measurement alone. The practical takeaway is that facility documentation should be treated as operational infrastructure: accurate floor plans help owners control space, reduce renovation risk, and give designers, engineers, and contractors a reliable digital record of existing conditions.

Industrial As-Built Floor Plans in BC: Warehouses, Facilities, and Large Commercial Spaces

What Industrial As Built Floor Plans Mean for BC Facilities

Industrial as built floor plans are measured drawings that show the current physical layout of an industrial or large commercial facility. These drawings typically document walls, structural columns, grid lines, openings, loading areas, stairs, mezzanines, service rooms, fixed equipment zones, major access paths, and usable floor areas. For warehouses, production spaces, and facilities in BC, industrial as built floor plans provide the factual baseline that comes before renovation planning, leasing review, contractor pricing, or digital facility management. The practical rule is to document the existing facility before changing how the facility operates.

Industrial as built floor plans are different from original construction drawings because original drawings may not show the facility as it exists today. Industrial buildings often change over time through tenant improvements, equipment installations, racking changes, wall removals, office build-outs, mezzanine additions, or service upgrades. If the facility team relies only on old drawings, the renovation plan may be based on outdated assumptions. Owners and facility managers should update as built documentation before making decisions that depend on space, access, safety, or construction coordination.

Industrial as built floor plans are also different from basic leasing or marketing plans. A leasing plan may show rentable area and general layout, but facility documentation for renovation or operational planning often needs more detail. Designers, engineers, contractors, and operations teams may need accurate dimensions, column locations, clearance zones, service areas, circulation routes, and file formats such as PDF, DWG, or BIM-ready data. The practical takeaway is to match the floor plan detail to the decision being made.

Why Accurate Floor Plans Matter More in Warehouses and Facilities

Accurate floor plans matter in warehouses because warehouse layouts depend on movement, clearance, storage density, and operational flow. A small dimensional error can affect racking placement, forklift aisles, loading zones, emergency access, staging areas, or equipment positioning. For facility managers, warehouse floor plans are not just drawings; warehouse floor plans are tools for controlling how people, goods, vehicles, and equipment move through the building. The practical recommendation is to verify floor plans before changing storage systems or operational layouts.

Accurate floor plans matter in production spaces because production layouts often depend on fixed equipment, utilities, workflow sequences, and safety clearances. If a machine line, service corridor, electrical panel, ventilation route, or structural column is documented incorrectly, the proposed layout may become difficult or unsafe to implement. Industrial as built floor plans help operations teams and designers understand where physical constraints exist before equipment is purchased or construction begins. Facility teams should use verified documentation before committing to major operational changes.

Accurate floor plans matter in large commercial spaces because larger buildings multiply the cost of small errors. A single incorrect wall location may be manageable in a small office, but inaccurate documentation across a warehouse, logistics facility, or multi-tenant industrial property can affect many trades and stakeholders at once. Contractors may price from assumptions, consultants may request additional site verification, and tenants may discover layout conflicts late. The practical takeaway is that larger facilities need stronger existing-condition documentation because the cost of uncertainty scales with the building.

How Industrial Building Measurement Supports Safer Facility Planning

Industrial building measurement supports safer facility planning by identifying the real physical conditions that affect circulation, access, and construction work. Facility teams need to understand where columns, exits, doors, stairs, loading areas, equipment zones, and restricted spaces are located before layout changes are approved. Accurate documentation does not replace safety review or code analysis, but accurate documentation gives safety professionals and designers a clearer base to review the facility. Owners should treat industrial building measurement as a first step before operational or construction planning.

Industrial building measurement helps reduce conflict between design intent and existing constraints. A proposed racking layout may look efficient until the existing column grid, door swing, dock position, floor slope, or service clearance is measured. A production area may appear flexible until fixed equipment, electrical rooms, or access routes are documented. Industrial as built floor plans help facility teams test proposed changes against the actual building instead of a simplified sketch. The practical next step is to measure the facility before approving layout-dependent investments.

Industrial building measurement also helps communication between owners, tenants, consultants, contractors, and facility managers. Each stakeholder may understand the building differently, especially in older or modified facilities. A shared set of accurate floor plans creates a common reference point for discussions about leasing, renovation, maintenance, code coordination, equipment planning, and contractor scope. Facility managers should keep updated as built drawings available for both current operations and future projects.

When Industrial 3D Scanning in Vancouver Is Better Than Manual Measurement

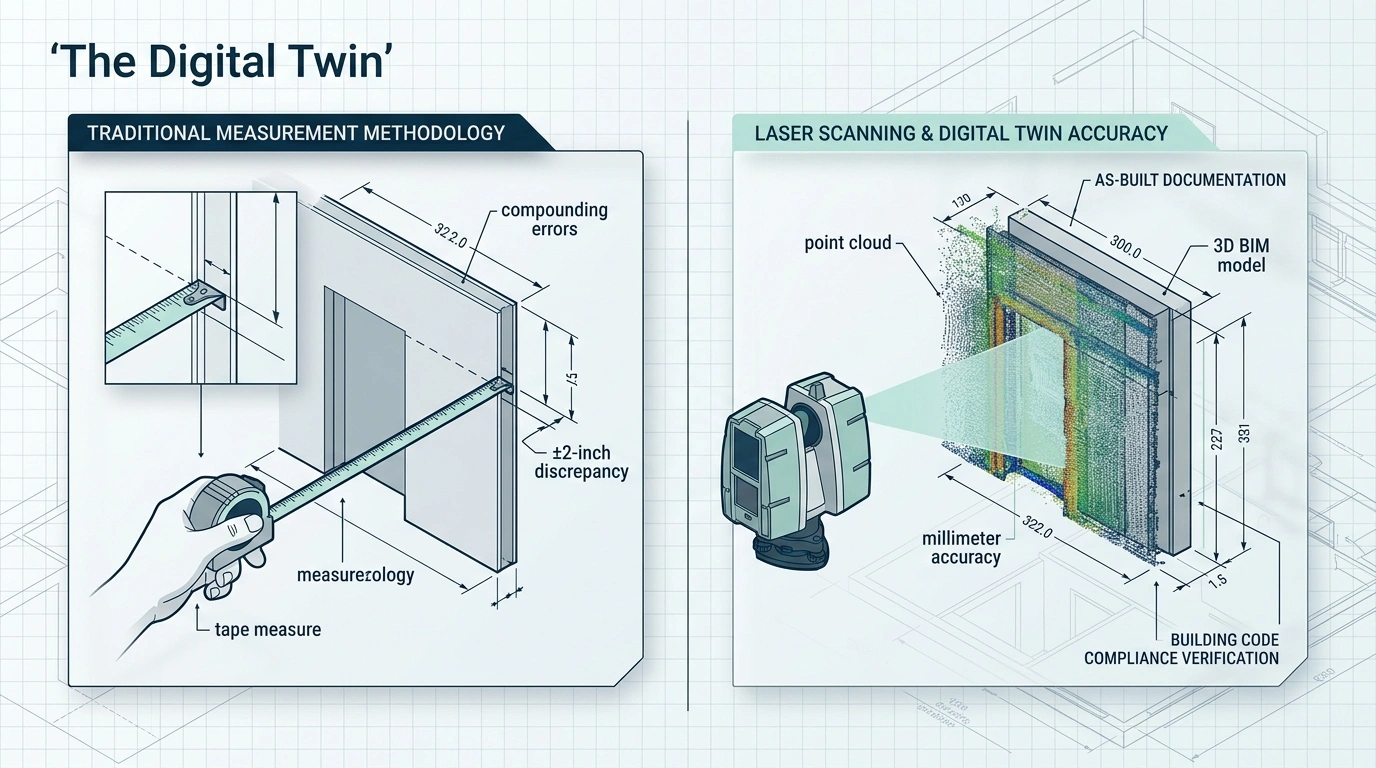

Industrial 3D scanning in Vancouver is often better than manual measurement when a facility is large, active, irregular, multi-level, or filled with structural and mechanical complexity. A 3D laser scanner captures dense spatial data that can be used to create accurate floor plans, sections, elevations, point clouds, CAD drawings, or BIM models. This approach is especially useful when manual measurement would require repeated site access or would miss overhead elements, complex geometry, or difficult-to-reach areas. The practical rule is to use scanning when missing information could create construction or operational risk.

Industrial 3D scanning is useful for warehouses because warehouses often contain wide spans, high ceilings, loading docks, racking zones, office inserts, structural grids, and changing tenant improvements. Manual measurement can capture simple wall-to-wall dimensions, but manual measurement may not capture the relationships between columns, dock doors, mezzanines, equipment areas, and overhead services efficiently. Laser scanning can create a more complete record of the facility’s geometry. Facility managers should consider scanning when a warehouse layout will be redesigned, leased, upgraded, or used for detailed contractor pricing.

Industrial 3D scanning is also useful for facilities that must remain operational during measurement. Active industrial buildings may have limited access windows, moving equipment, pallet storage, vehicle traffic, or areas that cannot be shut down for long periods. Laser scanning can often capture site conditions more efficiently than manual survey workflows, although access planning is still important. The practical takeaway is that scanning can reduce measurement disruption when the facility has operational constraints.

Manual Measurement vs 3D Scanning for Industrial As Built Documentation

Manual measurement can be appropriate for simple industrial spaces with limited complexity and low documentation risk. A small storage unit, basic open warehouse, or straightforward commercial space may only require basic dimensions, door locations, and room areas for early planning. If the project does not involve major construction, detailed equipment coordination, or permit drawing preparation, manual measurement may be sufficient. Facility owners should use manual measurement only when the building is simple and the consequence of measurement gaps is low.

3D scanning becomes more appropriate when the facility has complex geometry, high ceilings, exposed services, mezzanines, irregular walls, multiple tenant areas, or detailed renovation requirements. In these conditions, manual measurement can miss information that later affects layout, trades, or operations. A point cloud from industrial 3D scanning can give drafters and consultants a stronger source of dimensional information. Facility managers should choose scanning when several teams will rely on the documentation for decisions.

The decision between manual measurement and industrial 3D scanning should be based on how the documentation will be used. If the floor plans are only needed for rough internal discussion, a lighter measurement approach may work. If the floor plans will support contractor estimates, tenant improvements, equipment installation, building permit drawings, or facility lifecycle documentation, stronger measurement is usually safer. Owners should connect the measurement method to the financial and operational risk of being wrong.

How Warehouse Floor Plans Support Space Control and Operational Decisions

Warehouse floor plans support space control by showing how much usable area exists and how that area is organized. Facility teams can use warehouse floor plans to review storage zones, staging areas, circulation paths, dock access, office areas, service rooms, and tenant boundaries. This is especially important when a warehouse is being leased, subdivided, reconfigured, or upgraded. The practical takeaway is that accurate warehouse floor plans help owners understand not only total area, but how the area can actually function.

Warehouse floor plans support racking and storage planning because racking layouts depend on dimensions, columns, doors, clearances, and movement paths. A racking plan based on incomplete floor plans may conflict with existing columns, dock doors, fire access routes, or operational circulation. Accurate as built floor plans give the planning team a better base before detailed racking or logistics design begins. Facility managers should verify the existing layout before committing to storage density changes.

Warehouse floor plans also support leasing and tenant improvement discussions. Landlords, tenants, brokers, and contractors may each need different levels of documentation to understand how the space can be used. A basic leasing plan may support early negotiation, while renovation-grade industrial as built floor plans may be needed before a tenant installs equipment, adds offices, changes storage layouts, or modifies loading operations. The practical rule is to increase documentation detail when the tenant’s intended use creates construction or operational implications.

How Facility Documentation in BC Supports Digital Building Records

Facility documentation in BC supports digital building records by creating a reliable reference for future renovation, maintenance, leasing, and operational planning. Industrial buildings often change over decades, and undocumented changes can make future work slower and riskier. Updated as built floor plans, CAD files, point clouds, and BIM models help facility teams preserve institutional knowledge instead of relying only on staff memory. Owners should view facility documentation as a long-term asset, not only a one-time renovation expense.

Facility documentation helps maintenance and operations teams understand the relationship between space, access, and fixed building elements. Even when the documentation is not a full maintenance model, accurate floor plans can help locate rooms, equipment areas, service zones, access paths, and tenant boundaries. For larger industrial properties, this digital record can support planning conversations long after the first renovation is complete. Facility managers should keep documentation organized and updated as the building changes.

Facility documentation also reduces friction when new consultants or contractors join a project. Without current drawings, each new professional may need to repeat site verification before making decisions. With a reliable existing-condition package, new team members can understand the facility faster and ask more precise questions. The practical takeaway is that good documentation shortens the learning curve for every future project.

Scan-to-CAD vs Scan-to-BIM for Industrial Facilities

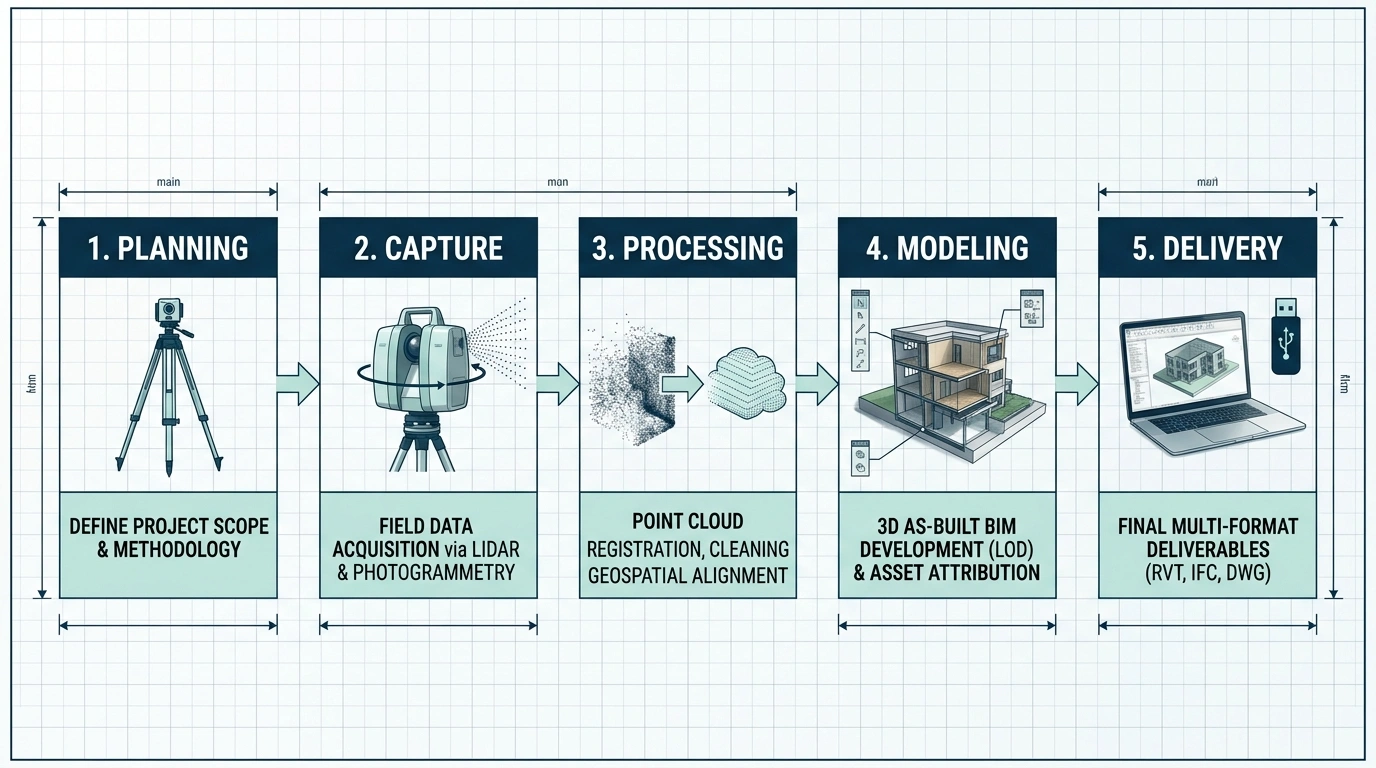

Scan-to-CAD documentation converts measured site data into CAD drawings that project teams can use for design, estimating, permit coordination, and facility planning. For many warehouses and industrial buildings, scan-to-CAD is a practical deliverable because 2D drawings can show floor plans, column grids, openings, dock locations, mezzanines, office areas, and other key existing conditions. CAD files are commonly useful for architects, designers, contractors, and facility teams. Owners should choose scan-to-CAD when 2D documentation is enough for the project workflow.

Scan-to-BIM documentation converts measured site data into a 3D model that can support more complex coordination. BIM may be useful when an industrial facility has complicated vertical relationships, dense mechanical systems, significant structural coordination, or a design team that works in a model-based environment. A BIM model can help consultants understand spatial relationships that are harder to communicate in 2D drawings alone. Owners should choose scan-to-BIM when the project complexity or consultant workflow justifies the additional modelling effort.

The choice between scan-to-CAD and scan-to-BIM should be made before the scanning appointment whenever possible. Different deliverables may require different levels of site capture, drafting scope, and modelling detail. If the project team waits until later to define deliverables, the owner may need additional processing or site verification. Facility managers should ask the architect, engineer, or contractor what format they need before ordering industrial as built documentation.

How Industrial As Built Floor Plans Affect Contractor Estimates

Industrial as built floor plans improve contractor estimates by giving contractors a more reliable picture of existing conditions. Contractors use floor plans to understand quantities, access, phasing, demolition scope, material needs, equipment movement, and coordination with existing structures. If the documentation is incomplete, contractors may include larger allowances or exclude uncertain work from the initial price. Owners should provide the same accurate floor plans to all bidders so pricing is based on the same facility information.

Industrial as built floor plans can reduce change order risk by identifying spatial conflicts before construction begins. A contractor may discover during construction that a column, door, service area, or equipment clearance does not match the assumed layout. When that conflict is found late, the project may require redesign, schedule changes, or additional cost. Accurate existing-condition drawings help the team resolve more issues during planning instead of during active work. The practical takeaway is that better documentation can move risk from the construction phase into the pre-construction phase.

Industrial as built floor plans also help owners compare bids more intelligently. If one contractor assumes major access constraints and another contractor does not, their estimates may look different for reasons that are not obvious. Accurate facility documentation gives owners a clearer basis for asking questions about scope, exclusions, staging, and assumptions. Facility managers should use as built drawings as part of the bid package whenever the project involves layout-dependent work.

How Industrial As Built Floor Plans Support Building Permit Coordination

Industrial as built floor plans support building permit coordination by documenting the existing facility before proposed changes are designed. For renovations, tenant improvements, mezzanine changes, occupancy-related upgrades, or major alterations, the design team may need to distinguish existing conditions from proposed work. If the existing base is inaccurate, the permit drawing package may require corrections or additional site verification. As built floor plans do not guarantee permit approval, but they can support clearer coordination.

BC industrial and commercial renovation projects may involve review of life safety, accessibility, structural, fire separation, energy, ventilation, or occupancy-related requirements depending on the project scope. Accurate existing-condition documentation helps architects, engineers, and code consultants understand what is currently present before preparing proposed drawings. The exact requirements depend on the municipality, building type, use, and scope of work. Owners should treat industrial as built floor plans as a documentation foundation, not as legal or permit advice.

Industrial as built floor plans are especially useful when a facility has changed over time. A building that has been subdivided, expanded, reconfigured, or adapted for different tenants may not match old drawing records. Permit coordination becomes harder when the design team cannot clearly establish the existing condition. Facility managers should update as built drawings before major applications or consultant work begins.

Industrial As Built Floor Plans for Leasing, Tenant Improvements, and Area Control

Industrial as built floor plans support leasing by giving owners and tenants a clearer understanding of the space being discussed. In warehouses and facilities, the usable value of space depends on more than square footage; column spacing, dock access, ceiling zones, office build-outs, loading areas, and circulation paths can all affect how the tenant uses the building. Accurate floor plans help leasing conversations move from rough assumptions to practical space evaluation. Owners should use current drawings when marketing or negotiating complex industrial space.

Industrial as built floor plans support tenant improvements by documenting what the tenant is starting with. A tenant may need offices, washrooms, storage zones, production areas, equipment pads, demising walls, or service upgrades. If the base plan is wrong, the tenant improvement design may need revisions once construction begins. Landlords and tenants should confirm existing conditions before finalizing improvement scopes, budgets, or schedules.

Industrial as built floor plans also support area control across multi-tenant facilities. When a building contains shared corridors, service areas, warehouse bays, loading areas, office components, or changing tenant boundaries, clear documentation helps reduce confusion. Facility teams can use updated drawings to track how space is divided and used. The practical takeaway is that accurate floor plans help owners manage industrial space as a measurable asset.

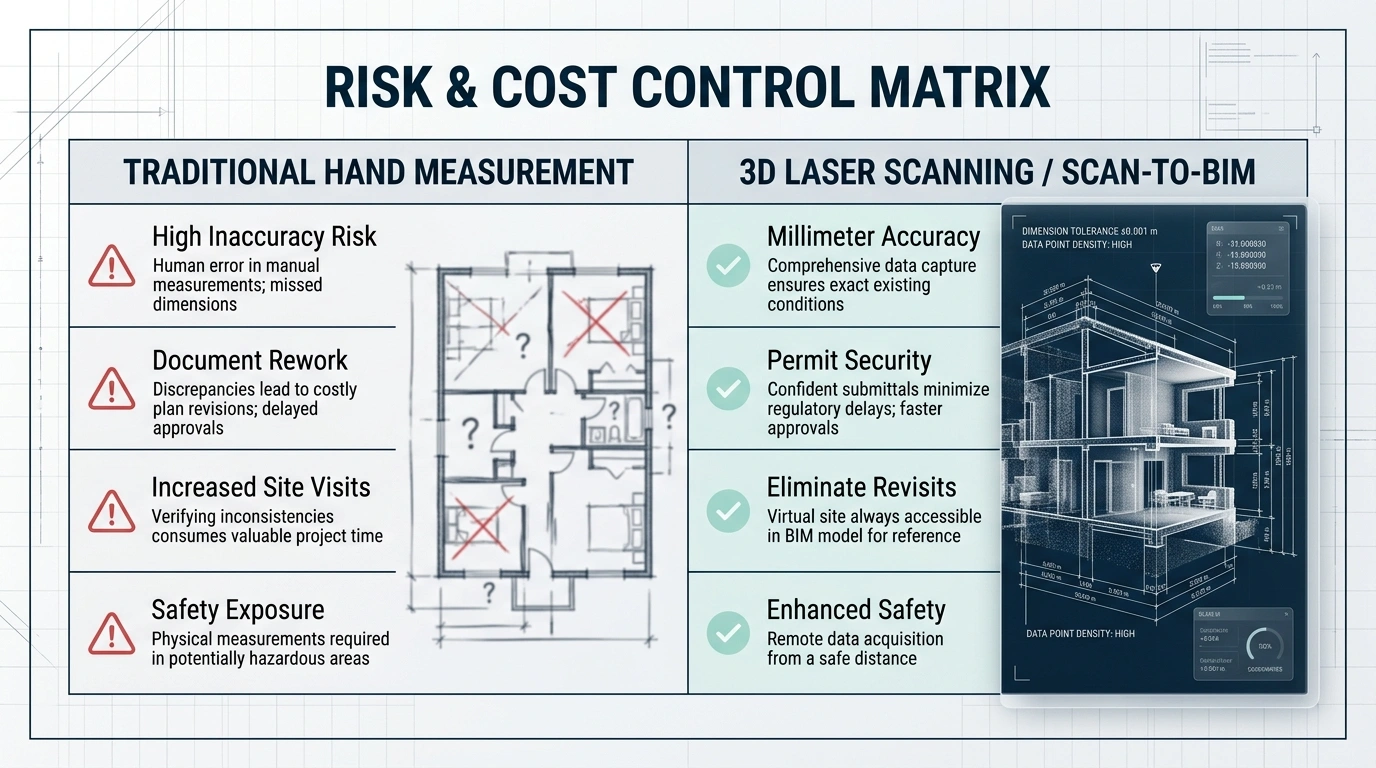

Risk and Cost Control Matrix for Industrial Documentation

A risk and cost control matrix helps facility owners decide how much documentation is appropriate before construction or operational changes. The right documentation level depends on how the facility will be used, how many stakeholders rely on the drawings, and how expensive errors would be. Industrial as built floor plans are most valuable when the cost of wrong assumptions is high. Owners should connect documentation effort to project risk.

Industrial as built floor plans help control cost by improving early information quality. These drawings do not remove all construction risk, and they do not replace engineering, code review, or contractor due diligence. However, accurate existing-condition documentation can reduce avoidable uncertainty in pricing, design, logistics, and facility planning. The practical recommendation is to invest in stronger documentation when several teams will make costly decisions from the same floor plan.

Common Mistakes in Industrial Facility Documentation

Facility owners should avoid assuming that original construction drawings still match the building. Industrial buildings often evolve through tenant improvements, equipment upgrades, interior partitions, loading changes, office additions, and service modifications. Even when original drawings are available, those drawings may not reflect current use or current geometry. Owners should verify the facility before using old drawings for renovation or operational planning.

Facility teams should avoid measuring only the obvious rooms and ignoring operational constraints. In industrial buildings, important constraints may include loading docks, circulation routes, structural columns, mezzanines, service rooms, electrical panels, fire exits, overhead doors, and equipment zones. A floor plan that only shows walls may not be enough for planning a functional facility change. Facility managers should define the intended use of the documentation before measurement begins.

Owners should avoid ordering the wrong deliverable format. A broker may need a PDF plan, a designer may need DWG files, an engineer may need sections or structural context, and a BIM-based team may need a model. If the final deliverable does not match the team’s workflow, the project may require rework. Facility owners should confirm the required output before the site scan or measurement appointment.

Project teams should avoid waiting until construction to confirm existing conditions. If documentation is incomplete, conflicts may appear after materials are ordered, tenants are scheduled, or contractors are mobilized. At that stage, corrections are more disruptive. The practical takeaway is to complete industrial as built documentation during feasibility or early design, not after the project has already become expensive to change.

How to Prepare for Industrial 3D Scanning or Building Measurement

Facility managers should prepare for industrial 3D scanning by making critical areas accessible. Scanning requires line-of-sight to capture visible geometry, so blocked walls, parked vehicles, stacked pallets, closed rooms, or inaccessible mezzanines can create documentation gaps. The scanning team may need access to warehouse bays, offices, loading areas, service spaces, mechanical rooms, exterior perimeters, and vertical circulation. A clear access plan helps produce more complete facility documentation.

Facility managers should identify operational restrictions before the measurement appointment. Active warehouses and production spaces may have safety procedures, shift schedules, restricted zones, equipment movement, or areas that cannot be interrupted. If the scanning team understands these restrictions in advance, the site visit can be planned more efficiently. Owners should coordinate measurement work with operations, safety, and security staff before the appointment.

Facility managers should clarify the required deliverables before the site visit. A project that needs only warehouse floor plans may be scoped differently from a project that needs scan-to-CAD drawings, sections, elevations, point cloud files, or a BIM model. Clear deliverable requirements help the measurement team capture the right level of detail. The practical recommendation is to hold a short pre-scan briefing with the project team before fieldwork begins.

Practical Decision Guide: What Documentation Does an Industrial Facility Need?

An industrial facility needs basic floor plans when the goal is general orientation, early leasing discussion, or simple internal planning. These plans can help owners understand space division, room layout, access points, and general areas. Basic plans are less appropriate for detailed construction, complex tenant improvements, or equipment coordination. Owners should choose basic floor plans only when the use case is low-risk.

An industrial facility needs scan-to-CAD documentation when the project involves design, contractor pricing, tenant improvement planning, or permit drawing support. CAD files give designers and contractors an editable base that can be used for proposed layouts, demolition plans, phasing, and consultant coordination. For many warehouse and facility projects in BC, scan-to-CAD provides a practical balance between detail and usability. Owners should choose scan-to-CAD when professionals need to work directly from the measured drawings.

An industrial facility needs scan-to-BIM documentation when the project involves complex spatial coordination, dense building systems, major upgrades, or long-term model-based facility management. BIM may be useful for facilities with complicated mechanical systems, multi-level relationships, or teams that already work in Revit or similar platforms. BIM requires more modelling effort, so the value should be connected to project complexity. Owners should choose scan-to-BIM when the model will be actively used, not just because it sounds more advanced.

Key Takeaways

Industrial as built floor plans provide the measured baseline for warehouses, facilities, production spaces, and large commercial buildings in BC. These drawings help owners and project teams understand the current facility before renovation, leasing decisions, tenant improvements, equipment installations, or building permit coordination. The main value is practical: accurate floor plans reduce uncertainty before costly decisions are made.

Industrial 3D scanning in Vancouver and across BC is most useful when a facility is large, complex, active, or difficult to measure manually. Laser scanning can support scan-to-CAD, scan-to-BIM, point clouds, and more complete digital documentation. The best measurement method depends on the facility’s complexity, the project team’s workflow, and the risk of missing existing-condition information.

FAQ

What are industrial as built floor plans?

Industrial as built floor plans are measured drawings that show the current layout and existing conditions of warehouses, facilities, production spaces, and large commercial buildings. These drawings can document walls, columns, openings, loading areas, mezzanines, service rooms, fixed equipment zones, and usable floor areas. Facility teams use industrial as built floor plans before renovation, leasing, tenant improvements, contractor pricing, or digital documentation work.

Why are industrial as built floor plans important for warehouses?

Industrial as built floor plans are important for warehouses because warehouse planning depends on accurate dimensions, column locations, dock access, racking zones, circulation paths, and usable areas. If a warehouse floor plan is outdated or approximate, storage layouts and contractor estimates may be based on wrong assumptions. Accurate warehouse floor plans help owners, tenants, and contractors plan from verified existing conditions.

What is the difference between warehouse floor plans and industrial as built drawings?

Warehouse floor plans usually focus on the layout and use of a warehouse space, while industrial as built drawings can include a broader existing-condition record for renovation, construction, or facility documentation. Industrial as built drawings may include more detail about structural grids, openings, mezzanines, service areas, equipment zones, and CAD or BIM deliverables. The right option depends on how the documentation will be used.

When should a facility use industrial 3D scanning in Vancouver?

A facility should use industrial 3D scanning in Vancouver when the building is large, complex, active, irregular, multi-level, or difficult to document manually. 3D scanning is useful for warehouses, production spaces, facilities with exposed services, tenant improvement planning, equipment coordination, and scan-to-CAD or scan-to-BIM workflows. Manual measurement may work for simple spaces, but scanning is stronger when missed information could create risk.

Do industrial as built floor plans help with contractor estimates?

Industrial as built floor plans help contractor estimates by giving contractors a reliable existing-condition base for pricing. Contractors can review dimensions, access, demolition scope, layout constraints, and material quantities with fewer assumptions. Accurate floor plans do not remove every construction unknown, but they make bids easier to compare because each contractor can price from the same facility documentation.

Can industrial as built floor plans support building permit drawings in BC?

Industrial as built floor plans can support building permit drawings in BC by documenting the existing facility before proposed changes are prepared. These drawings help architects, engineers, and consultants distinguish existing conditions from proposed work. As built floor plans do not guarantee permit approval, because approval depends on the proposed design and municipal review, but accurate documentation can support clearer permit coordination.

What is facility documentation in BC?

Facility documentation in BC refers to the drawings, digital records, CAD files, point clouds, BIM models, and related information that describe a building’s current condition. For industrial properties, facility documentation can support maintenance, renovations, leasing, tenant improvements, safety planning, and future consultant work. Updated documentation helps owners manage the facility as a long-term asset instead of relying on memory or outdated files.

What is the difference between scan-to-CAD and scan-to-BIM for industrial buildings?

Scan-to-CAD converts measured site data into editable CAD drawings such as floor plans, elevations, sections, or layout files. Scan-to-BIM converts measured site data into a 3D model that can support more complex coordination and model-based workflows. Many industrial projects only need scan-to-CAD, while complex facilities with dense systems, major upgrades, or BIM-based teams may benefit from scan-to-BIM.

Are old construction drawings enough for industrial renovation planning?

Old construction drawings may be useful as reference material, but they are not always enough for industrial renovation planning. Warehouses and facilities often change through tenant improvements, equipment installations, racking changes, office additions, or service upgrades. Industrial as built floor plans verify the current condition of the building, which makes them more reliable for renovation, contractor pricing, and operational planning.

How should facility managers prepare for industrial 3D scanning?

Facility managers should prepare for industrial 3D scanning by clearing access to key areas, identifying restricted zones, coordinating with operations staff, and confirming required deliverables before the site visit. The scanning team may need access to warehouse bays, loading areas, offices, mezzanines, service rooms, mechanical rooms, and exterior areas. Good preparation helps create more complete and useful facility documentation.

Conclusion

Industrial as built floor plans are a practical foundation for managing warehouses, facilities, production spaces, and large commercial buildings in BC. Accurate documentation helps owners and facility teams understand existing conditions before renovation, leasing, tenant improvements, equipment installation, contractor pricing, or permit coordination. Manual measurement may be enough for simple spaces, but industrial 3D scanning is often stronger when the facility is large, active, irregular, or coordination-heavy. The best next step is to define the project scope, confirm whether PDF, DWG, point cloud, or BIM deliverables are needed, and create facility documentation before major decisions depend on incomplete information.

Residential as built floor plans give Vancouver homeowners a reliable dimensional baseline before a renovation, addition, basement conversion, or major interior redesign. These drawings document the existing home as it stands today, including room sizes, wall locations, door and window openings, ceiling conditions, stairs, and other relevant fixed elements. In Greater Vancouver, where many homes have older construction, undocumented changes, additions, sloped floors, or altered interiors, accurate floor plans help prevent design decisions from being based on outdated blueprints or real estate diagrams. Designers, architects, engineers, and contractors use residential as built floor plans to prepare layouts, estimate work, coordinate permit drawings, and reduce site surprises. The practical takeaway is simple: before paying for design or contractor pricing, homeowners should confirm that the existing house has been measured accurately enough for the renovation scope.

Residential As-Built Floor Plans for Vancouver Home Renovations: What Homeowners Should Know

What Residential As Built Floor Plans Mean Before a Vancouver Home Renovation

Residential as built floor plans are accurate drawings of a home’s existing layout, not drawings of what a homeowner wants to build next. These floor plans show the current arrangement of walls, rooms, stairs, doors, windows, openings, and major fixed elements so a design team can understand the real starting point. For Vancouver homeowners planning a renovation, residential as built floor plans create the baseline that comes before design concepts, permit drawings, contractor estimates, and construction decisions. The practical rule is to measure the home before redesigning the home.

Residential as built floor plans matter because many homes in Greater Vancouver no longer match their original drawings. Older houses may have previous renovations, basement changes, enclosed areas, altered openings, or field-built conditions that were never updated in the original blueprints. If a designer or contractor relies on outdated plans, the proposed renovation may conflict with the actual structure, dimensions, or circulation of the house. The safest starting point is to document the existing conditions before investing in detailed design.

Residential floor plans for renovation are different from basic real estate floor plans. Real estate floor plans are usually made for marketing, listing presentation, and buyer orientation, while renovation-grade as built floor plans are made for planning, coordination, and construction documentation. A real estate plan may be useful for understanding room flow, but a renovation team usually needs more precise dimensions, wall relationships, openings, and sometimes ceiling or structural context. Homeowners should not treat listing floor plans as a substitute for renovation documentation.

Why Accurate Floor Plans Should Come Before Designers, Architects, or Contractors Start Work

Accurate floor plans should come before design work because every renovation decision depends on the existing dimensions of the home. Interior designers need accurate room sizes before planning kitchens, bathrooms, millwork, furniture layouts, and circulation. Architects need accurate existing conditions before preparing design options, additions, structural changes, or building permit drawings. Contractors need accurate floor plans before estimating demolition, framing, flooring, cabinetry, drywall, and labour. The practical takeaway is that better existing documentation creates better early decisions.

Residential as built floor plans reduce design risk because the design team can test ideas against the real structure instead of guessing from memory or photos. A wall that looks simple in a walkthrough may contain an opening, a stair relationship, a ceiling height constraint, or a measurement issue that affects the renovation plan. Accurate floor plans do not solve every construction challenge, but accurate floor plans make hidden planning conflicts easier to identify before pricing or construction begins. Homeowners should use as built documentation as the first filter for realistic design.

Accurate floor plans also help homeowners compare contractor estimates more fairly. When several contractors price the same renovation from different assumptions, the estimates can vary because each contractor is filling in missing information differently. When every contractor receives the same residential as built floor plans, the pricing conversation becomes more consistent because the basic existing layout is shared. Homeowners should provide the same measured documentation to every contractor when comparing renovation bids.

How Residential As Built Floor Plans Reduce Renovation Risk

Residential as built floor plans reduce renovation risk by replacing assumptions with measured existing conditions. Renovation mistakes often begin when a homeowner, designer, or contractor assumes that a wall length, room depth, ceiling height, stair position, or opening size is “close enough.” In practice, small measurement differences can affect cabinetry, tile layout, fixture placement, furniture clearance, or structural coordination. The practical recommendation is to measure before committing to layouts, purchases, or contractor scopes.

Accurate floor plans reduce contractor estimate risk because contractors need dimensions to calculate materials and labour. Wall lengths can affect drywall and painting quantities, floor areas can affect flooring budgets, openings can affect trim and door packages, and room layouts can affect demolition and framing. If a contractor prices a renovation from incomplete plans, the quote may require larger contingencies or later adjustments. Homeowners should treat measured floor plans as part of cost control, not just design preparation.

Residential as built floor plans also reduce the chance of design revisions caused by existing conditions. A kitchen layout may look workable until the real wall length, window position, or stair relationship is measured. A bathroom renovation may require a different fixture layout once the existing room dimensions and plumbing zones are understood. An addition may need revised coordination once the existing envelope and interior relationships are documented. The practical takeaway is that accurate floor plans help identify constraints while changes are still easier and cheaper to make.

When Manual House Measurement May Be Enough

Manual house measurement may be enough when the renovation is small, simple, low-risk, and does not require detailed CAD or BIM coordination. Cosmetic updates, basic furniture planning, simple repainting, flooring replacement, or minor non-structural changes may not always justify advanced scanning. In these cases, careful manual measurement can provide enough information for homeowner-level planning or basic contractor discussion. The decision rule is to match the measurement method to the risk level of the renovation.

Manual house measurement becomes less reliable when the home has multiple levels, irregular rooms, older additions, sloped conditions, complex stairs, or tight renovation tolerances. A tape measure can capture basic dimensions, but manual measurement can miss out-of-square walls, uneven geometry, ceiling changes, and relationships between rooms. These missed conditions can become important when designers are planning millwork, structural changes, or permit drawings. Homeowners should move beyond basic measurement when the renovation depends on precision.

Manual measurement also depends heavily on the skill, method, and documentation discipline of the person measuring. Two people can measure the same house and produce different results if one person misses wall thicknesses, stair alignments, window positions, or exterior relationships. For renovation projects where several professionals will use the same documentation, consistency matters. Homeowners should ask whether the measurement output is suitable for design, estimating, and permit coordination, not only whether someone has “measured the house.”

When 3D Laser Scanning Services Are Better Than Manual Measurement

3D laser scanning services are better than manual measurement when a Vancouver home has complex geometry, multiple rooms, older construction, tight tolerances, or higher renovation risk. A laser scan captures extensive spatial data from the site and creates a point cloud that can be used to prepare accurate floor plans, elevations, sections, CAD drawings, or BIM models. This approach is especially useful when a design team needs reliable documentation without repeated site visits. The practical rule is to use scanning when missing details would create expensive uncertainty.

3D laser scanning services are often useful for older Greater Vancouver homes because older buildings may contain uneven walls, non-square rooms, sloped floors, altered basements, or undocumented additions. These conditions are not always visible during a quick walkthrough, but these conditions can affect design and construction. Laser scanning can help capture the real geometry of the house so that the drafting team can produce more reliable as built drawings. Homeowners should consider scanning when the existing home is not simple or recently documented.

3D laser scanning services can also improve collaboration because the measured site data can support remote review by designers, architects, engineers, and contractors. Instead of returning to the house for every missed dimension, the project team may be able to reference the captured data and drawings. This does not remove the need for professional judgment or site verification in all cases, but it can reduce avoidable measurement gaps. Homeowners should choose scanning when the design team needs a stronger existing-conditions record.

Residential Floor Plans vs As Built Survey for Renovation vs Scan-to-CAD vs Scan-to-BIM

Residential floor plans, as built surveys for renovation, scan-to-CAD documentation, and scan-to-BIM documentation serve different project needs. A basic residential floor plan may show room layout and general dimensions, while an as built survey for renovation is more focused on existing conditions that affect design and construction decisions. Scan-to-CAD converts measured site data into 2D CAD drawings. Scan-to-BIM converts measured site data into a model-based format for more complex coordination. Homeowners should choose the deliverable based on how the renovation team will use the information.

Scan-to-CAD documentation is usually appropriate when the renovation team needs accurate 2D drawings for design, estimating, or permit drawing support. Architects and designers often use CAD files to develop proposed layouts, coordinate structural input, and prepare drawing sets. For many residential renovations in Vancouver, scan-to-CAD documentation gives enough detail for practical planning without requiring a full BIM model. Homeowners should ask their designer or architect whether DWG, PDF, or another CAD deliverable is needed before measurement begins.

Scan-to-BIM documentation is usually appropriate when the renovation is complex enough to benefit from a 3D model. A major addition, whole-home renovation, complicated roof change, heritage-sensitive project, or coordination-heavy design may require more than 2D floor plans. BIM can help the design team understand vertical relationships, model existing conditions, and coordinate building elements in three dimensions. Homeowners should consider scan-to-BIM when the architect, engineer, or project team specifically works in a model-based workflow.

How Accurate Floor Plans Support Building Permit Drawing Coordination

Accurate floor plans support building permit drawing coordination by giving the design team a reliable existing-conditions base. Permit drawings usually need to show what exists, what is proposed, and how the proposed renovation relates to the existing home. If the existing-condition drawings are wrong, the proposed drawings may also contain errors. Residential as built floor plans do not guarantee permit approval, but they can help the project team prepare clearer, more consistent documentation.

Building permit drawings for Vancouver home renovations often require coordination between the homeowner, designer, architect, engineer, and sometimes other consultants. Accurate existing floor plans help these professionals work from the same baseline when reviewing layouts, structural changes, egress, stairs, additions, or basement improvements. Without a reliable baseline, the team may spend time resolving basic dimensional conflicts instead of improving the design. Homeowners should complete existing-condition documentation before the permit drawing phase becomes detailed.

Greater Vancouver municipalities may review renovation drawings in relation to zoning, building code, property constraints, and the proposed scope of work. The specific requirements depend on the municipality, the property, and the renovation type, so homeowners should not treat as built drawings as legal advice or approval assurance. However, accurate measured drawings can help the design team communicate the existing house more clearly. The practical takeaway is to use accurate floor plans as a coordination tool, not as a permit guarantee.

How Vancouver Homeowners Should Choose the Right Documentation Level

Vancouver homeowners should choose the documentation level based on renovation risk, not only on the size of the house. A small bathroom renovation with tight clearances can require more precision than a large but simple cosmetic update. A basement suite, structural wall removal, kitchen redesign, or addition may require stronger existing-condition documentation than a basic room refresh. The right question is not “Do I need drawings?” but “What decisions will be made from these drawings?”

Residential as built floor plans are most valuable when several professionals need to coordinate around the same home. A homeowner may understand the house from living in it, but a designer, contractor, engineer, or municipal reviewer needs drawings that communicate the existing conditions clearly. Good documentation turns the house into a shared reference point. Homeowners should invest in stronger documentation when the renovation involves multiple decision-makers.

The documentation level should also reflect the cost of being wrong. If a measurement error only affects furniture placement, the consequence may be minor. If a measurement error affects structural design, custom millwork, permit drawings, or contractor pricing, the consequence can be expensive. Residential as built floor plans are a risk-control tool because accurate documentation helps reduce uncertainty before larger commitments are made. Homeowners should spend more attention on measurement when the downstream decisions are costly.

How As Built Drawings Help Designers, Architects, Contractors, and Homeowners

As built drawings help homeowners by making renovation decisions less dependent on memory, assumptions, or rough sketches. A homeowner may know the pain points of the house, but measured drawings help convert those pain points into a plan that professionals can review. Accurate floor plans allow homeowners to discuss layouts, budgets, and construction scope with clearer information. The practical takeaway is that as built drawings make homeowner conversations with professionals more productive.

As built drawings help interior designers by giving accurate room dimensions and fixed conditions for layout planning. Designers often need to coordinate cabinetry, furniture, circulation, lighting zones, appliance placement, and built-in millwork around the existing home. If the floor plan is inaccurate, design options may look good on paper but fail on site. Designers should receive renovation-grade floor plans before developing detailed layouts.

As built drawings help architects and building designers by establishing the existing-condition base for proposed drawings. Architects need to understand the current structure, levels, openings, circulation, and envelope before designing meaningful changes. Accurate floor plans also help architects communicate existing and proposed conditions to consultants and municipalities. Homeowners should provide as built documentation before asking an architect to finalize design options.

As built drawings help contractors by making estimates and construction planning more consistent. Contractors price work based on quantities, access, demolition scope, wall lengths, openings, finishes, and buildability. If the existing documentation is incomplete, contractors may include larger allowances or discover issues after work begins. Homeowners should use accurate floor plans to help contractors price the same scope from the same baseline.

Common Mistakes Vancouver Homeowners Should Avoid

Homeowners should avoid starting design work from outdated original blueprints. Original drawings may show what was intended when the home was built, but original drawings may not show renovations, additions, field changes, or current conditions. In older Vancouver homes, even small undocumented changes can affect new design work. The practical rule is to verify the existing home before treating old drawings as reliable.

Homeowners should avoid using real estate floor plans as construction documents. A real estate floor plan can be helpful for marketing or general understanding, but real estate floor plans are usually not created for renovation-grade accuracy. Contractors, architects, and designers may need more precise dimensions, wall conditions, openings, and file formats than a listing plan provides. Homeowners should use real estate plans only as a visual reference unless a professional confirms otherwise.

Homeowners should avoid ordering drawings without confirming the required deliverables. Some renovation teams need only PDF floor plans, while others need DWG files, elevations, sections, reflected ceiling plans, or a Revit model. If the measurement scope does not match the design team’s workflow, the homeowner may need additional drafting later. Homeowners should ask the architect, designer, or contractor what documentation format is required before the site measurement appointment.

Homeowners should avoid waiting until the permit stage to measure the house accurately. If the design has already been developed from weak measurements, accurate documentation may reveal conflicts that require redesign. Measuring early allows the design team to solve existing-condition issues before the homeowner becomes attached to an unworkable layout. The practical takeaway is to complete residential as built floor plans before detailed design, not after design problems appear.

How to Prepare for a House Measurement or 3D Laser Scanning Appointment

Homeowners should prepare for a measurement appointment by making the home accessible and easy to document. The measurement team may need access to rooms, stair areas, mechanical spaces, exterior walls, garages, crawlspaces, or other areas depending on the renovation scope. Locked rooms, heavy clutter, blocked walls, or inaccessible areas can create gaps in the documentation. The practical recommendation is to clear access before the measurement team arrives.

Homeowners should identify the renovation scope before measurement begins. A kitchen renovation, basement suite, addition, or whole-home remodel may require different levels of detail. If the measurement team understands the intended use of the drawings, the documentation can be scoped more appropriately. Homeowners should explain what the designer, architect, or contractor will use the floor plans for before the site visit.

Homeowners should gather any available old drawings, surveys, renovation records, or real estate plans before commissioning new as built drawings. Existing documents may not be accurate enough to replace a new measurement, but these documents can provide helpful background. The measurement team can compare old information with current site conditions and identify where new documentation is needed. Homeowners should treat old drawings as reference material, not as confirmed existing conditions.

Practical Decision Framework for Residential As Built Floor Plans

The practical decision framework for residential as built floor plans starts with the renovation scope. If the renovation affects only finishes, basic measurement may be enough. If the renovation affects layout, structure, plumbing, stairs, additions, or permit drawings, renovation-grade as built floor plans are usually the safer choice. Homeowners should let project risk determine the documentation level.

The second decision point is the professional workflow. If the designer works in CAD, scan-to-CAD documentation may be the most useful deliverable. If the architect works in Revit or the project involves complex coordination, scan-to-BIM may be more appropriate. If the homeowner only needs early planning, a simpler drawing set may be enough. Homeowners should ask what file format the project team actually needs before ordering drawings.

The third decision point is the condition of the home. A simple newer home with square rooms may be easier to measure manually, while an older Vancouver home with additions, sloped conditions, or irregular geometry may benefit from 3D laser scanning services. The more irregular the existing conditions, the more valuable accurate capture becomes. Homeowners should choose stronger documentation when the home itself creates uncertainty.

Key Takeaways for Vancouver Homeowners

Residential as built floor plans are the starting point for renovation planning because design, estimating, and permit coordination depend on the existing home. These drawings help homeowners, designers, architects, and contractors work from current site conditions rather than assumptions, real estate plans, or outdated blueprints. For Vancouver homeowners planning anything beyond cosmetic updates, accurate floor plans are a practical way to reduce early-stage renovation risk.

3D laser scanning services are most useful when a home is complex, older, irregular, multi-level, or being renovated at a high level of detail. Manual measurement can be enough for simple projects, but laser scanning can create a stronger existing-conditions record for CAD or BIM deliverables. Homeowners should choose the measurement method based on project complexity, professional workflow, and the cost of potential errors.

FAQ

What are residential as built floor plans?

Residential as built floor plans are measured drawings that show the current layout and dimensions of an existing home. These drawings usually document walls, rooms, doors, windows, stairs, openings, and other fixed conditions that affect renovation planning. For Vancouver homeowners, residential as built floor plans help designers, architects, and contractors work from the actual house instead of outdated blueprints or rough measurements.

Why do homeowners need residential as built floor plans before renovation?

Homeowners need residential as built floor plans before renovation because design and contractor pricing depend on accurate existing conditions. A designer needs reliable dimensions before planning layouts, and a contractor needs clear information before estimating materials and labour. If the floor plans are inaccurate, the renovation may require redesign, revised pricing, or on-site changes. Accurate floor plans create a better starting point.

Can I use my original house blueprints for a Vancouver renovation?

Original house blueprints can be useful reference material, but original blueprints should not automatically be trusted as current renovation documentation. Many Vancouver homes have previous renovations, additions, field changes, or settled conditions that may not appear on old drawings. Residential as built floor plans verify what exists now, which makes them more reliable for designers, architects, and contractors planning new work.

Are real estate floor plans accurate enough for renovation planning?

Real estate floor plans are usually not accurate enough for detailed renovation planning because they are made mainly for marketing and buyer orientation. A listing plan may show approximate room layout, but renovation teams often need more precise dimensions, openings, wall relationships, and file formats. Homeowners can use real estate plans for early discussion, but renovation-grade as built floor plans are safer for design and construction decisions.

When should I choose 3D laser scanning services for a house renovation?

Homeowners should choose 3D laser scanning services when the house is complex, older, irregular, multi-level, or being renovated in a way that depends on accurate geometry. Laser scanning is especially useful for additions, basement renovations, structural changes, detailed millwork, or projects requiring CAD or BIM deliverables. Manual measurement may work for simple updates, but scanning is stronger when missed dimensions could create expensive problems.

What is an as built survey for renovation?

An as built survey for renovation documents the existing conditions of a home before new design or construction work begins. The survey can include measured floor plans, elevations, sections, ceiling information, exterior conditions, or other details depending on the project scope. For homeowners, an as built survey helps the renovation team understand the current house before preparing layouts, estimates, or permit drawings.

Do residential as built floor plans guarantee permit approval?

Residential as built floor plans do not guarantee permit approval because permit decisions depend on the proposed design, zoning, building code requirements, municipal review, and project-specific conditions. Accurate floor plans can support clearer building permit drawings by documenting the existing home more reliably. Homeowners should treat as built drawings as an important coordination tool, not as legal advice or an approval guarantee.

What is the difference between scan-to-CAD and scan-to-BIM?

Scan-to-CAD converts measured site data into 2D CAD drawings such as floor plans, elevations, or sections. Scan-to-BIM converts measured site data into a 3D model that can support more complex design coordination. Many residential renovations only need scan-to-CAD documentation, while larger additions, complex remodels, or model-based architectural workflows may benefit from scan-to-BIM. The right choice depends on the design team’s workflow.

How do accurate floor plans help contractor estimates?

Accurate floor plans help contractor estimates by giving builders consistent dimensions for materials, labour, demolition, framing, finishes, and layout planning. When several contractors price from the same residential as built floor plans, the homeowner can compare estimates with fewer hidden assumptions. Accurate drawings do not remove every construction unknown, but they reduce avoidable uncertainty before the contractor prepares a quote.

What should homeowners prepare before a measurement appointment?

Homeowners should prepare for a measurement appointment by clearing access to rooms, stairs, mechanical spaces, exterior areas, and other spaces relevant to the renovation. The homeowner should also share the intended renovation scope and any old drawings or real estate plans available. Clear access and project context help the measurement team produce documentation that better supports the designer, architect, or contractor.

Conclusion

Residential as built floor plans are one of the most practical first steps for Vancouver homeowners planning a renovation. Accurate floor plans show the existing house as it stands today, which helps designers, architects, contractors, and consultants make decisions from measured conditions instead of assumptions. For simple cosmetic updates, basic measurement may be enough; for layout changes, structural work, additions, basement renovations, or permit coordination, renovation-grade as built documentation is usually the safer choice. Homeowners should confirm the renovation scope, ask the project team what deliverables are needed, and order the appropriate level of house measurement before design and contractor pricing move too far forward.

Commercial as built floor plans give property stakeholders a reliable record of existing commercial space before design, leasing, construction, or tenant improvement work begins. In Greater Vancouver, commercial properties often change over time through renovations, partitions, service upgrades, and tenant-specific alterations, so original drawings may no longer reflect actual site conditions. Accurate floor plans help property owners, property managers, tenants, architects, designers, and contractors verify walls, openings, rooms, circulation, fixed features, and usable areas before making financial or construction decisions. Depending on project complexity, documentation may range from real estate floor plans for leasing to renovation-grade as-built drawings, scan-to-CAD documentation, or scan-to-BIM documentation for more detailed coordination. The practical takeaway is simple: verify commercial property documentation before pricing, redesigning, permitting, or leasing a space.

Commercial As-Built Floor Plans in Vancouver: A Guide for Offices, Retail, and Tenant Improvements

What Commercial As Built Floor Plans Mean for Existing Commercial Space

Commercial as built floor plans are measured drawings that document the current physical layout of a commercial property. Commercial property owners, tenants, architects, designers, and contractors use as-built floor plans when original drawings are missing, outdated, incomplete, or no longer reliable. Accurate floor plans show existing walls, doors, windows, openings, rooms, circulation paths, stairs, restrooms, columns, and other fixed architectural features. The practical takeaway is to treat commercial as-built documentation as the starting point before design, pricing, leasing, or construction decisions.

Commercial as built floor plans are different from original design drawings because as-built floor plans describe what exists now, not what was originally intended. Commercial spaces in Vancouver, Burnaby, Richmond, Surrey, North Vancouver, and other Greater Vancouver municipalities often change through tenant improvements, demising walls, retail build-outs, office reconfigurations, and service upgrades. Those changes may not be fully reflected in older drawings. The practical takeaway is to verify the existing commercial floor plan before assuming that historical plans match the physical space.

Commercial property documentation becomes more valuable when the floor plan is created for the correct purpose. A basic marketing plan may help advertise a space, but renovation-grade commercial as-built floor plans must provide accurate dimensions, fixed features, and usable spatial information for design and contractor coordination. Tenant improvement drawings, building permit drawing support, scan-to-CAD documentation, and scan-to-BIM documentation all depend on the quality of the existing conditions record. The practical takeaway is to choose the documentation level based on the decision being made, not only on the size of the property.

Who Uses Commercial As-Built Floor Plans in Greater Vancouver

Property owners use commercial as built floor plans to understand the actual layout and usable area of a commercial property before leasing, selling, renovating, or planning upgrades. Commercial owners in Greater Vancouver often need accurate floor plans when a tenant is moving in, expanding, downsizing, or requesting layout changes. Verified documentation helps owners discuss space options, construction feasibility, lease areas, and improvement budgets with fewer assumptions. The practical takeaway is to update commercial property documentation before major leasing or capital planning decisions.

Property managers use accurate floor plans to coordinate tenant improvements, maintenance access, contractor visits, and space planning. In multi-tenant office, retail, mixed-use, and industrial properties, property managers often need to know where walls, doors, service rooms, washrooms, stairs, and fixed features actually sit. Inaccurate commercial floor plans can create confusion when coordinating trades, scheduling work, or explaining site conditions to tenants. The practical takeaway is to keep current as-built floor plans available for daily property operations and tenant coordination.

Commercial tenants use as-built floor plans to test whether a space can support business operations before committing to layout changes or improvements. A tenant planning offices, treatment rooms, retail displays, storage areas, reception zones, or customer circulation needs accurate dimensions before finalizing space planning. Commercial as-built floor plans help identify usable areas, fixed constraints, and layout limits before a tenant spends money on design or construction. The practical takeaway is to verify the space before signing off on a tenant improvement concept.

Architects and designers use commercial as built floor plans as the existing conditions base for renovation planning and tenant improvement drawings. Designers cannot accurately plan partitions, millwork, furniture, lighting layouts, code coordination, or circulation changes if the existing walls and openings are wrong. Accurate floor plans reduce the risk of redesign because the design team starts from a measured baseline instead of assumptions. The practical takeaway is to provide designers with renovation-grade as-built drawings before schematic layouts are finalized.

Contractors use accurate floor plans to price labour, materials, demolition, access, millwork, finishes, and layout changes more realistically. Contractor estimates depend on wall lengths, openings, room sizes, ceiling conditions, fixed features, service locations, and construction constraints. Inaccurate commercial floor plans can lead to missing quantities, unclear scope, inflated allowances, or change orders after work begins. The practical takeaway is to give bidding contractors measured commercial as-built documentation before requesting firm pricing.

How Commercial As-Built Floor Plans Support Leasing and Space Planning

Commercial as built floor plans support leasing because landlords, brokers, tenants, and property managers need a clear understanding of the space being offered. Leasing discussions often depend on usable area, room configuration, circulation, access points, washrooms, storefront openings, demising walls, and back-of-house space. Accurate commercial floor plans help stakeholders evaluate whether a unit fits the tenant’s operational needs before lease negotiations progress too far. The practical takeaway is to use current floor plans when presenting or evaluating commercial space.

Commercial floor plans Vancouver businesses use for leasing should match the purpose of the leasing decision. A visually simplified real estate floor plan can help market a unit, while a more detailed commercial as-built floor plan can support tenant space planning and improvement budgets. Those two deliverables are related, but they are not the same. The practical takeaway is to choose a marketing floor plan for presentation and a renovation-grade as-built floor plan for layout planning, estimating, or tenant improvements.

Commercial as built floor plans reduce lease miscalculations because the documented space can be compared with the actual physical layout. In commercial leasing, small differences in usable area, room arrangement, or fixed obstructions can affect how a tenant uses the space. Area calculations may need to follow a specific measurement standard or lease requirement, depending on the transaction. The practical takeaway is to clarify whether the floor plan is for marketing, leasing area review, or renovation coordination before commissioning the work.

Commercial property documentation is especially useful when a tenant expands into adjacent space or combines multiple units. Expansion projects often require the design team to understand where demising walls, corridors, exits, washrooms, service rooms, and structural features sit across the combined footprint. Accurate floor plans help identify constraints before the tenant improvement concept becomes expensive to revise. The practical takeaway is to measure the combined existing condition before planning a tenant expansion.

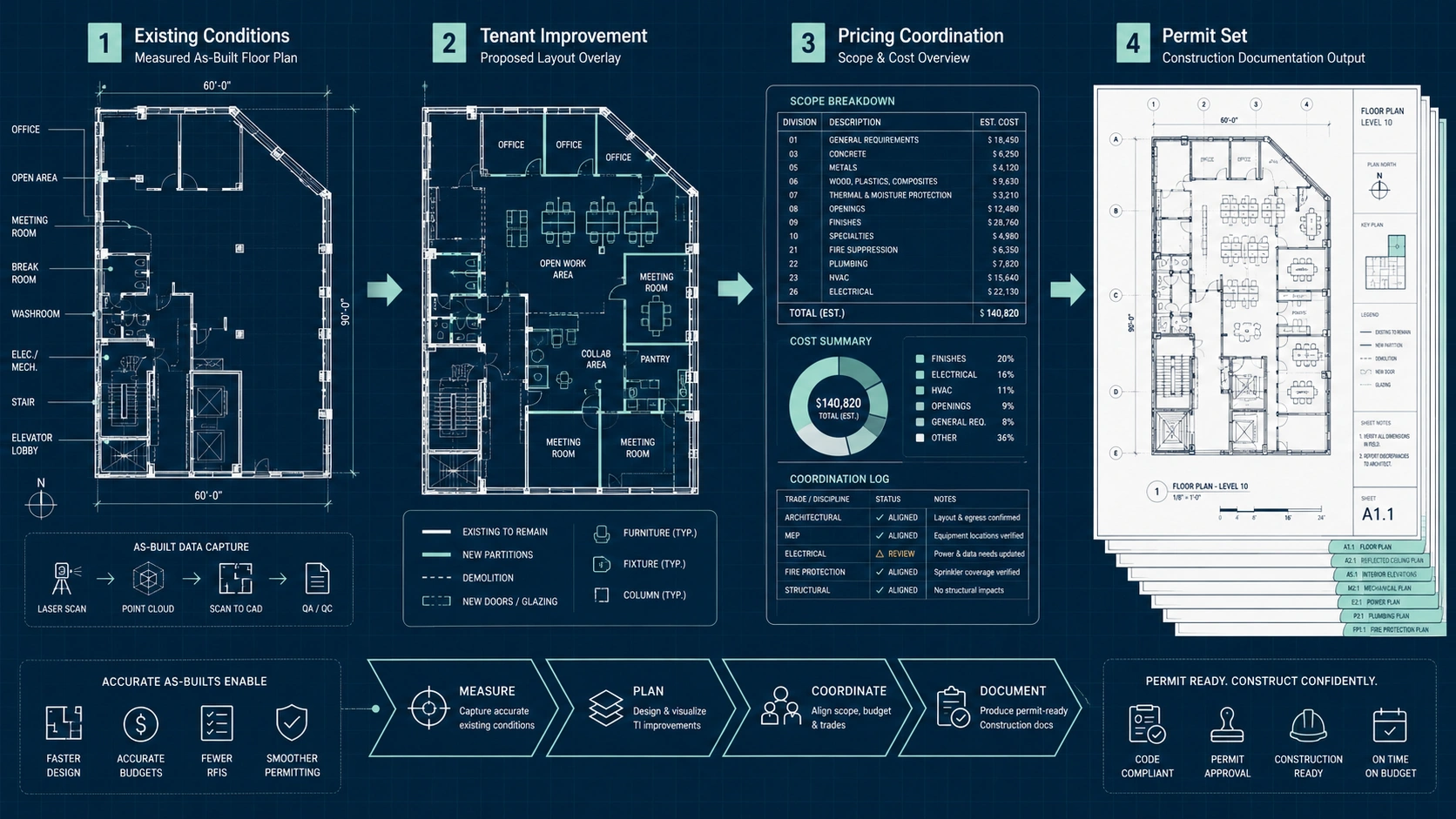

How Commercial As-Built Floor Plans Support Tenant Improvement Drawings

Commercial as built floor plans support tenant improvement drawings by giving designers and consultants a verified base plan for proposed changes. Tenant improvement drawings often depend on existing wall locations, door swings, storefronts, stairs, washrooms, service rooms, structural columns, and usable room dimensions. If the base plan is wrong, proposed partitions, furniture layouts, millwork, finishes, and contractor scopes can also be wrong. The practical takeaway is to create accurate as-built floor plans before preparing tenant improvement drawings.

Tenant improvement drawings are not the same as commercial as-built floor plans. Commercial as-built floor plans document the existing condition, while tenant improvement drawings show proposed changes to the space. A designer may use as-built drawings as the background for new layouts, demolition plans, construction plans, reflected ceiling plans, millwork coordination, or permit drawing packages. The practical takeaway is to complete the existing conditions documentation first, then develop the proposed tenant improvement drawings from that measured base.

Commercial as built floor plans reduce tenant improvement risk because renovation decisions depend on existing dimensions. Office partitions, retail fixtures, treatment rooms, reception desks, accessibility clearances, corridors, and storage areas may all be affected by small differences in the existing space. Accurate floor plans help designers test layout options before construction pricing begins. The practical takeaway is to verify existing conditions before approving a tenant improvement concept or construction budget.

Tenant improvement documentation in Greater Vancouver often involves multiple stakeholders, including property owners, tenants, designers, contractors, consultants, and sometimes municipal reviewers. Accurate commercial as-built documentation gives those stakeholders a shared reference point for existing conditions. A shared measured base reduces confusion when questions arise about dimensions, access, layout, or fixed constraints. The practical takeaway is to use one reliable set of existing-condition drawings across the tenant improvement workflow.

When 3D Laser Scanning Services Are Better Than Manual Measurement

3D laser scanning services are useful when a commercial space is complex, older, irregular, occupied, multi-room, or high-risk for renovation errors. Manual measurement may be acceptable for a simple, low-risk space, but manual methods can miss uneven walls, angled geometry, ceiling variations, hard-to-reach features, and complicated room relationships. 3D laser scanning captures a broader digital record of existing conditions for more detailed drafting. The practical takeaway is to choose laser scanning when accuracy risk affects design, pricing, or construction coordination.

Manual measurement is most appropriate when the commercial space is small, simple, accessible, and low-risk. A basic rectangular office or a simple retail shell may not need scan-to-BIM documentation if the goal is only a basic layout or early space review. Manual measurement still requires careful fieldwork, quality checking, and clear drafting standards. The practical takeaway is to use manual measurement only when the scope is simple and the documentation does not need advanced CAD or BIM coordination.

3D laser scanning services are often the better option when a commercial property has many rooms, exposed services, irregular geometry, tight tolerances, or planned construction work. Complex office suites, medical spaces, restaurants, warehouses, retail units, and mixed-use commercial interiors can contain fixed features that affect layout and construction. Laser scanning helps create a more complete record for scan-to-CAD or scan-to-BIM documentation. The practical takeaway is to use 3D laser scanning when hidden complexity could create redesign, estimating, or construction risk.

Accurate floor plans depend on both field capture and drafting quality. A laser scan can capture detailed site information, but the final commercial as-built floor plans still require careful interpretation, CAD drafting, quality review, and deliverable formatting. The measurement method and the documentation process both affect the usefulness of the final drawings. The practical takeaway is to evaluate the full workflow, not only the scanning equipment.

Manual Measurement vs 3D Laser Scanning Decision Matrix

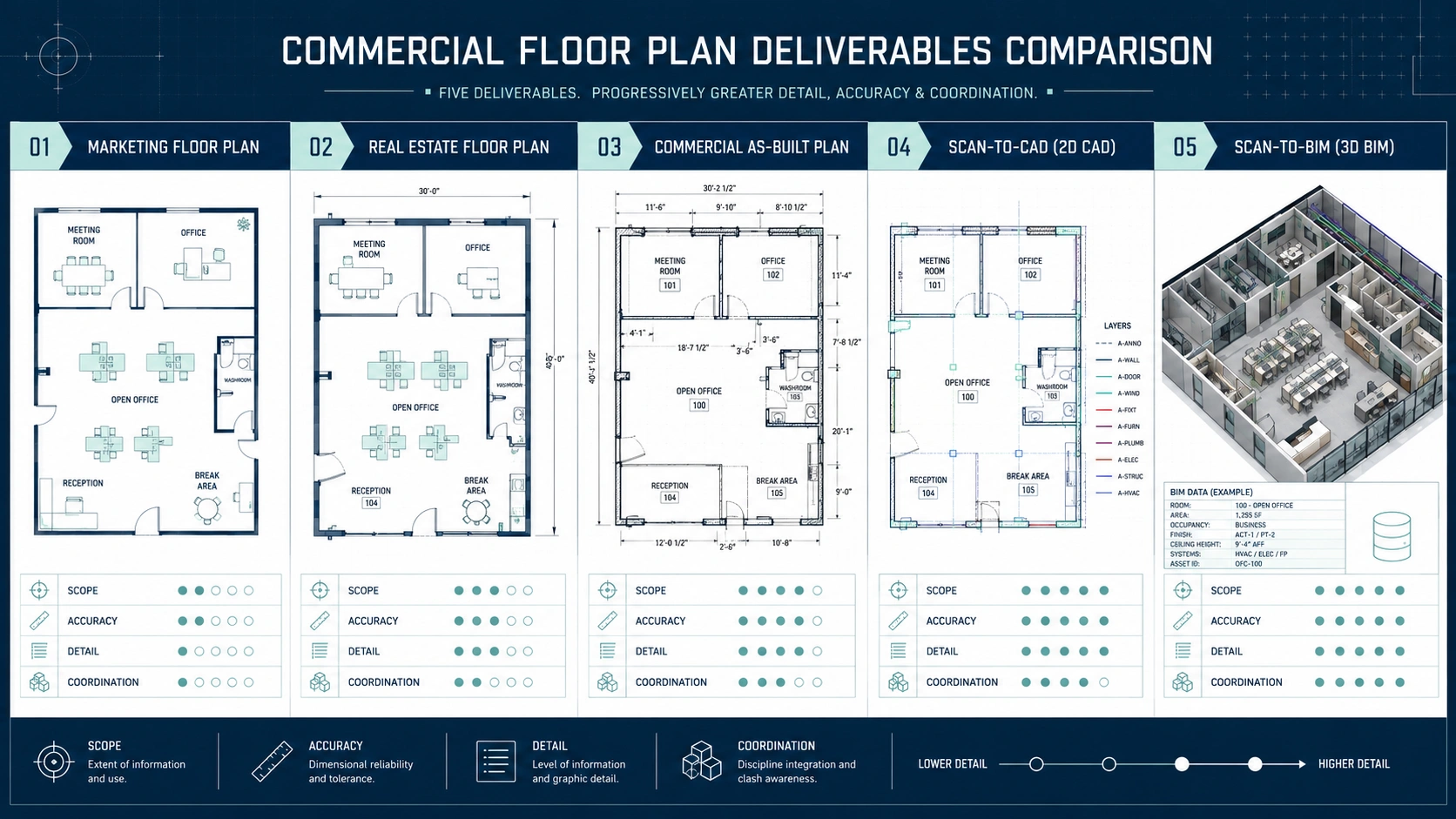

Commercial Floor Plan Deliverables: Real Estate Plans, As-Built Plans, Scan-to-CAD, and Scan-to-BIM

Real estate floor plans are best for marketing, leasing presentations, and basic space communication. A real estate floor plan typically shows the general layout, rooms, circulation, and usable space in a clear visual format for brokers, landlords, and prospective tenants. A real estate plan may not include the detail required for contractor pricing or renovation coordination. The practical takeaway is to choose real estate floor plans when the main goal is presentation, listing support, or early leasing discussion.

Renovation-grade commercial as-built floor plans are best when designers, tenants, contractors, or property managers need accurate existing dimensions. Renovation-grade plans typically document walls, openings, doors, windows, stairs, washrooms, room dimensions, fixed features, and other architectural constraints. These plans are more technical than marketing floor plans because the drawings support layout decisions and construction planning. The practical takeaway is to choose renovation-grade as-built drawings before tenant improvements, redesign, or contractor estimates.

Scan-to-CAD documentation converts measured site conditions into CAD files that architects, designers, contractors, and consultants can use for renovation planning. Scan-to-CAD documentation is commonly used when the project team needs DWG or similar files as a base for design, permit coordination, demolition plans, or construction drawings. This workflow is practical for many office, retail, and commercial tenant improvement projects. The practical takeaway is to choose scan-to-CAD when accurate 2D drawing files are needed for professional design work.

Scan-to-BIM documentation converts measured existing conditions into a model-based format for more complex design coordination. Scan-to-BIM may be appropriate when a commercial project involves mechanical, electrical, plumbing, structural, or multi-discipline coordination that benefits from a three-dimensional model. Large offices, medical spaces, industrial areas, and complicated renovations may need more than a 2D floor plan. The practical takeaway is to choose scan-to-BIM when model-based coordination is more important than a simple layout drawing.

Building permit drawing support depends on accurate existing conditions but should not be confused with a permit approval guarantee. Commercial as-built floor plans can support permit coordination by giving designers and consultants a reliable base for proposed changes, existing layouts, egress review, occupancy discussion, or code-related coordination. Municipal requirements vary by project and location, so qualified professionals should confirm what is required for a specific submission. The practical takeaway is to use accurate as-built documentation as support for permit drawings, not as a substitute for professional design or code advice.

Documentation Type Comparison for Commercial Properties

How Accurate Floor Plans Improve Contractor Estimates and Cost Control

Accurate floor plans improve contractor estimates because contractors price work from dimensions, quantities, access conditions, and existing constraints. Wall lengths, door openings, room sizes, service locations, ceiling conditions, and fixed features can affect demolition, framing, drywall, flooring, millwork, finishes, electrical work, and labour planning. Inaccurate commercial floor plans can force contractors to add allowances or revise pricing after site conditions are discovered. The practical takeaway is to provide measured commercial as-built floor plans before requesting detailed contractor pricing.

Commercial as-built floor plans reduce change order risk by making existing conditions clearer before construction begins. Change orders often arise when the built condition is different from what the design team, contractor, or owner expected. A misplaced wall, undocumented opening, irregular room dimension, or fixed obstruction can affect layout, material quantities, installation sequencing, and trade coordination. The practical takeaway is to reduce preventable uncertainty by documenting existing conditions before construction scope is priced.

Accurate floor plans help property owners compare contractor estimates more fairly. When each contractor prices from the same measured commercial property documentation, the owner can better compare scope, assumptions, exclusions, and material quantities. Without reliable drawings, competing estimates may reflect different interpretations of the same space. The practical takeaway is to issue the same accurate as-built documentation to all bidding contractors.

Commercial as built floor plans support procurement because custom materials depend on existing dimensions. Office millwork, retail fixtures, glazing, partitions, signage zones, flooring transitions, and built-in storage can be affected by room dimensions, wall alignment, openings, and ceiling constraints. Accurate floor plans help designers and fabricators reduce guesswork before manufacturing or ordering materials. The practical takeaway is to verify dimensions before ordering custom or dimension-sensitive commercial components.

Risk and Cost Control Matrix for Commercial As-Built Documentation

How Commercial As-Built Floor Plans Support Greater Vancouver Renovation Planning

Commercial as built floor plans support Greater Vancouver renovation planning by replacing assumptions with measured existing conditions. Many commercial properties in Vancouver, Burnaby, Richmond, Surrey, North Vancouver, Coquitlam, New Westminster, Delta, Langley, Port Moody, and Maple Ridge have been altered through previous tenants, repairs, service upgrades, and partial renovations. Older drawings may not show those changes accurately. The practical takeaway is to document the current condition before design or construction decisions are made.

Accurate commercial property documentation is especially important in older and mixed-use buildings. Older commercial buildings may include irregular wall alignments, undocumented openings, structural constraints, uneven room geometry, and service routes that are not obvious during a quick walkthrough. Mixed-use properties can add access, circulation, and coordination constraints between commercial and residential areas. The practical takeaway is to use measured floor plans or 3D laser scanning services when the property history or building complexity increases renovation risk.

Commercial as-built floor plans help project teams coordinate site access, tenant operations, and construction staging. Occupied offices, active retail spaces, restaurants, clinics, and warehouses often need renovation planning that limits disruption to business operations. Accurate plans can help identify work zones, access paths, storage areas, and existing constraints before contractors arrive. The practical takeaway is to use accurate floor plans for both design decisions and practical construction logistics.

Building permit drawing support in Greater Vancouver often begins with reliable existing-condition documentation. Permit-related drawings may need to show current layouts, proposed changes, egress paths, washrooms, occupancy-related information, or other project-specific conditions, depending on the scope and municipality. Commercial as-built floor plans do not guarantee approval, but accurate documentation can help qualified professionals prepare clearer drawing packages. The practical takeaway is to confirm municipal requirements with the appropriate professionals and use as-built drawings as a reliable base.

How MeasureBuilt’s Existing Conditions Framework Organizes Commercial Documentation

The MeasureBuilt Existing Conditions Framework organizes commercial as-built documentation around the decision the client needs to make. A landlord preparing a unit for leasing may need real estate floor plans and area information, while an architect preparing tenant improvement drawings may need scan-to-CAD documentation. A more complex renovation may require 3D laser scanning services and scan-to-BIM documentation. The practical takeaway is to define the end use before choosing the deliverable.

The first step in MeasureBuilt’s existing conditions workflow is confirming the commercial documentation scope. The scope should identify the property type, required areas, access limitations, desired deliverables, file format, drawing level, and intended use. Clear scoping prevents a mismatch between a simple marketing plan and a technical renovation base drawing. The practical takeaway is to explain whether the documentation is for leasing, space planning, contractor pricing, permit coordination, CAD design, or BIM coordination.

The second step in MeasureBuilt’s existing conditions workflow is site measurement or 3D laser scanning. Commercial measurement work should capture the relevant walls, openings, stairs, washrooms, corridors, fixed features, and other existing conditions needed for the selected deliverable. More complex spaces may require laser scanning because the built environment contains more geometry than a manual sketch can reliably capture. The practical takeaway is to match the field method to the complexity of the commercial space.

The third step in MeasureBuilt’s existing conditions workflow is drafting, file preparation, and quality review. Field data must be converted into readable commercial as-built floor plans, CAD drawings, or BIM models that project stakeholders can actually use. Quality review helps check that the final drawings align with the intended scope and that the deliverables are formatted for the client’s workflow. The practical takeaway is to request documentation that is both measured accurately and delivered in a usable format.

Which Commercial Documentation Each Stakeholder Needs

Different stakeholders need commercial as built floor plans for different decisions. A property owner may care about leasing, capital planning, and renovation feasibility, while a contractor may care about dimensions, quantities, access, demolition, and scope. A designer may need CAD files, and a tenant may need layout clarity before committing to improvements. The practical takeaway is to choose the deliverable based on the stakeholder’s decision, not just the property type.

Practical Decision Guide: Which Commercial As-Built Documentation Do You Need?

Choose marketing or real estate floor plans when the main goal is to present a commercial space clearly for leasing or property communication. These plans help tenants and brokers understand layout, circulation, rooms, and general space organization. Marketing floor plans are useful for listings, early conversations, and visual presentation, but they may not contain enough technical detail for construction. The practical takeaway is to use real estate floor plans for communication, not as the only base for renovation work.

Choose renovation-grade commercial as built floor plans when designers, contractors, tenants, or owners need accurate dimensions for planning. These drawings are appropriate for standard office renovations, retail improvements, tenant layouts, demising decisions, and contractor estimates. Renovation-grade plans should show measured walls, openings, room dimensions, fixed features, and usable spatial information. The practical takeaway is to choose renovation-grade documentation when layout or construction decisions depend on accuracy.

Choose scan-to-CAD documentation when the project team needs editable CAD files for design, permit coordination, or contractor communication. Architects and designers often need CAD base drawings to create proposed plans, demolition plans, reflected ceiling plans, millwork layouts, or tenant improvement drawings. Scan-to-CAD documentation is a practical middle ground for many commercial renovations. The practical takeaway is to choose scan-to-CAD when professionals need accurate 2D files for design workflow.

Choose scan-to-BIM documentation when the commercial renovation requires model-based coordination. More complex properties may involve mechanical systems, structural coordination, multiple levels, irregular geometry, or consultant-heavy workflows. Scan-to-BIM documentation can help architects, engineers, and owners coordinate existing conditions in a three-dimensional model environment. The practical takeaway is to choose scan-to-BIM when project complexity makes a 2D plan insufficient.

Choose 3D laser scanning services when the space is complex enough that manual measurement creates avoidable risk. A practical threshold is not only size; complexity also includes irregular layouts, many rooms, older conditions, exposed building systems, tight tolerances, multiple stakeholders, or planned construction work. Laser scanning can support more reliable scan-to-CAD or scan-to-BIM deliverables. The practical takeaway is to use laser scanning when uncertainty in the existing condition could affect cost, layout, or coordination.

Common Mistakes to Avoid When Ordering Commercial Floor Plans

A common mistake is ordering a marketing floor plan when the project actually requires renovation-grade commercial as-built floor plans. A marketing plan can make a space easier to understand visually, but contractor estimates and tenant improvement drawings often require more accurate dimensions and technical information. Confusing those deliverables can create delays when the design team realizes the plan is not detailed enough. The practical takeaway is to define the intended use before ordering floor plans.

A common mistake is assuming original drawings are accurate enough for current renovation planning. Commercial properties often change through previous tenant improvements, removed partitions, added rooms, relocated doors, service changes, and undocumented alterations. Original drawings may still be useful background information, but original drawings should not automatically be treated as current existing conditions. The practical takeaway is to verify the actual site before relying on old plans.

A common mistake is delaying commercial as-built documentation until after design or contractor pricing has already started. When accurate floor plans arrive late, designers may need to revise layouts and contractors may need to revisit estimates. Late documentation can create avoidable rework, especially when dimensions, openings, or fixed constraints differ from assumptions. The practical takeaway is to complete as-built documentation before design decisions become expensive to change.

A common mistake is not planning site access before the measurement appointment. Locked rooms, blocked walls, occupied offices, stored inventory, secure service areas, and restricted mechanical spaces can prevent complete documentation. Missing access can lead to return visits or incomplete drawings. The practical takeaway is to prepare keys, access permissions, tenant notices, and clear sightlines before the measurement or scanning appointment.

How to Prepare for a Commercial Measurement or 3D Laser Scanning Appointment

Commercial measurement appointments are more efficient when the site is accessible, visible, and coordinated in advance. Walls, doors, windows, stairs, corridors, service rooms, and fixed features should be reachable wherever possible. Excess inventory, boxes, furniture, or temporary obstructions can limit what can be measured or scanned. The practical takeaway is to clear critical areas before the measurement team arrives.

Property managers should coordinate access to locked, secure, or restricted areas before 3D laser scanning services begin. Mechanical rooms, electrical rooms, storage areas, roof access points, back corridors, and service spaces may contain important existing-condition information for renovation planning. If those areas are inaccessible, the final commercial property documentation may be less complete. The practical takeaway is to arrange keys, security approval, tenant notices, and building access in advance.

Commercial tenants and business owners should schedule measurement work around business operations when possible. Active offices, retail stores, clinics, restaurants, and warehouses may need scanning during low-traffic periods, before opening, after closing, or in coordinated work windows. Better scheduling improves access and reduces disruption. The practical takeaway is to discuss operating hours, staff activity, customer traffic, and restricted zones before the site visit.

Project teams should provide any available background information before commercial as-built floor plans are prepared. Old drawings, lease plans, previous renovation drawings, building information, access notes, and scope requirements can help the measurement provider understand what needs to be verified. Background documents should support the fieldwork, not replace current measurement. The practical takeaway is to share existing information while still confirming the actual built condition on site.

Key Takeaways for Commercial As-Built Floor Plans in Vancouver

Commercial as built floor plans are the measured baseline for leasing, renovation planning, tenant improvements, space planning, contractor pricing, and commercial property documentation. Commercial properties in Greater Vancouver can change many times over their life, so old drawings may not match the current physical layout. Accurate as-built floor plans reduce uncertainty by documenting existing walls, openings, room dimensions, fixed features, and usable space. The practical takeaway is to verify the existing condition before making commercial property decisions.

Commercial as-built documentation should be selected by use case. Real estate floor plans support leasing and presentation, renovation-grade as-built floor plans support layout planning and contractor estimates, scan-to-CAD documentation supports design and permit coordination, and scan-to-BIM documentation supports complex model-based coordination. Choosing the wrong deliverable can create gaps in the workflow. The practical takeaway is to match the documentation level to the decision, stakeholder, and renovation risk.

3D laser scanning services are most useful when a commercial property is complex, irregular, older, multi-room, occupied, or planned for significant tenant improvements. Manual measurement can be appropriate for simple, low-risk spaces, but laser scanning provides a stronger foundation when accuracy and coordination matter. The practical takeaway is to use the simplest reliable method for low-risk spaces and a more detailed scan-to-CAD or scan-to-BIM workflow when project complexity increases.

Frequently Asked Questions

What are commercial as built floor plans?

Commercial as built floor plans are measured drawings that show the current layout of an existing commercial property. Commercial as-built documentation typically identifies walls, openings, doors, windows, room dimensions, circulation, fixed features, and usable space. Property owners, tenants, designers, and contractors use these drawings before leasing, renovation, tenant improvements, contractor pricing, or space planning. The practical takeaway is to use as-built floor plans when current site conditions must be verified.

Why are commercial as-built floor plans important before tenant improvements?

Commercial as-built floor plans are important before tenant improvements because designers and contractors need accurate existing conditions before planning changes. Tenant improvement drawings may depend on wall locations, openings, washrooms, structural features, circulation, and usable dimensions. If the base plan is wrong, proposed layouts and estimates can also be wrong. Commercial tenants and property managers should verify the existing floor plan before approving layouts or requesting construction pricing.

What is the difference between commercial floor plans and tenant improvement drawings?

Commercial floor plans document the existing layout, while tenant improvement drawings show proposed changes to the space. A commercial as-built floor plan may become the base drawing for demolition plans, proposed layouts, millwork planning, contractor estimates, or permit coordination. Tenant improvement drawings usually require design input and project-specific scope. The practical takeaway is to complete accurate as-built documentation before developing proposed tenant improvement drawings.

When should I choose 3D laser scanning services instead of manual measurement?

Choose 3D laser scanning services when a commercial space is complex, older, irregular, multi-room, occupied, or sensitive to renovation errors. Manual measurement can work for simple, low-risk spaces, but laser scanning is better when geometry, tight tolerances, exposed services, or multiple stakeholders increase coordination risk. 3D laser scanning can support scan-to-CAD or scan-to-BIM deliverables. The practical takeaway is to use scanning when inaccurate dimensions could affect design, pricing, or construction.

Do commercial as-built floor plans help with contractor estimates?

Commercial as-built floor plans help contractor estimates by giving contractors reliable dimensions and existing-condition information before pricing work. Contractors often need wall lengths, openings, room sizes, access constraints, fixed features, and material quantities to prepare realistic estimates. Inaccurate commercial floor plans can lead to allowances, unclear assumptions, or revised pricing after site conditions are discovered. The practical takeaway is to issue accurate floor plans before requesting detailed contractor bids.

Can commercial as-built floor plans support building permit drawings in Greater Vancouver?

Commercial as-built floor plans can support building permit drawings by providing a measured record of existing conditions. Designers and consultants may use as-built documentation to prepare proposed drawings, coordinate egress, review existing layouts, and clarify project scope. Permit requirements vary by municipality and project type, so as-built drawings do not guarantee approval. The practical takeaway is to use accurate floor plans as a reliable base while confirming permit requirements with qualified professionals.

What is scan-to-CAD documentation?

Scan-to-CAD documentation converts measured site conditions into CAD files that architects, designers, contractors, and consultants can use. In commercial renovation planning, scan-to-CAD files can support layout design, tenant improvement drawings, permit coordination, demolition plans, and contractor communication. Scan-to-CAD is often suitable for offices, retail spaces, and standard commercial renovations. The practical takeaway is to choose scan-to-CAD when accurate 2D files are needed for professional design workflow.

What is scan-to-BIM documentation?

Scan-to-BIM documentation converts measured existing conditions into a three-dimensional model format for more complex coordination. Architects, engineers, consultants, and owners may use scan-to-BIM when a commercial renovation involves MEP coordination, structural constraints, multiple levels, irregular geometry, or a consultant-heavy workflow. Scan-to-BIM is usually more detailed than standard floor plans or 2D CAD drawings. The practical takeaway is to choose scan-to-BIM when model-based coordination is necessary.

Do commercial as-built floor plans include square footage information?

Commercial as-built floor plans can include square footage information when area calculations are part of the requested scope. Property owners, brokers, tenants, and property managers may need area information for leasing, space planning, or property records. The measurement standard or method should be clarified before the work begins, especially when lease area matters. The practical takeaway is to request area calculations specifically instead of assuming every floor plan includes them.

Are real estate floor plans enough for commercial renovation planning?

Real estate floor plans are usually not enough for detailed commercial renovation planning. A real estate floor plan may communicate the general layout for leasing or marketing, but renovation-grade commercial as-built floor plans provide more accurate dimensions and fixed-feature documentation for designers and contractors. Tenant improvement drawings, contractor estimates, and CAD workflows often need more technical detail. The practical takeaway is to use real estate plans for presentation and as-built drawings for renovation decisions.

How should a property manager prepare for a commercial measurement appointment?

A property manager should prepare for a commercial measurement appointment by confirming access, clearing key areas, notifying tenants, and providing available background drawings. Locked rooms, blocked walls, stored inventory, secure areas, and restricted service spaces can limit the completeness of commercial property documentation. Better preparation helps the measurement team capture accurate existing conditions efficiently. The practical takeaway is to coordinate site access before the measurement or scanning visit.

How do commercial as-built floor plans help with space planning?

Commercial as-built floor plans help with space planning by showing the actual dimensions, room relationships, openings, fixed features, and usable areas inside a commercial property. Tenants, designers, and property managers use accurate floor plans to test office layouts, retail fixtures, circulation, storage, treatment rooms, or customer areas before construction. The practical takeaway is to use measured floor plans before committing to a layout concept.

Conclusion

Commercial as built floor plans give property owners, property managers, tenants, designers, and contractors a reliable understanding of existing commercial space before decisions become expensive to change. In Greater Vancouver, accurate commercial property documentation is useful before leasing, tenant improvements, renovation planning, contractor estimates, scan-to-CAD drafting, scan-to-BIM coordination, and building permit drawing support. The right deliverable depends on the decision: choose real estate floor plans for presentation, renovation-grade as-built floor plans for planning and estimating, scan-to-CAD documentation for design workflow, and scan-to-BIM documentation for complex coordination. The practical next step is to define the project use case, confirm the required documentation level, and verify existing conditions before moving into pricing, design, permitting, or construction.

As-built drawings are the definitive, precise record of a building's current condition. They capture all deviations from the original architectural design and reflect the true physical reality of a structure after construction, renovation, or modification.

Why As-Built Drawings Matter in Modern Construction

The foundation of any successful renovation, tenant improvement, or structural addition is accurate construction documentation that municipalities and consultants can rely on.

Outdated redline markups and manual sketches introduce significant risks, including design errors, site conflicts, and costly rework. Today, advanced reality capture methods such as 3D laser scanning allow professionals to generate a complete digital representation of existing conditions – often referred to as the digital twin of a building.

This verified data stream supports smoother building permit applications across Greater Vancouver and ensures that design decisions are based on accurate field conditions, not assumptions.

Core Industry Shift: From Manual Measurements to Reality Capture

Traditional construction documentation relied on hand measurements and redline markups over original drawings. While still used in some cases, this approach is highly prone to human error and incomplete data capture.

Modern workflows now rely on:

• Terrestrial 3D laser scanning
• Dense point cloud data capture
• Scan-to-BIM modelling workflows
• Digital coordination across disciplines

These technologies have fundamentally changed how existing buildings are documented and designed.

BC Building Code Considerations

The British Columbia Building Code establishes strict requirements for structural safety, occupancy, and life safety systems. Accurate as-built documentation is essential when:

• Modifying structural elements
• Upgrading MEP systems (mechanical, electrical, plumbing)
• Applying for renovation or change-of-use permits
• Verifying compliance with current safety standards

Municipal reviewers rely on accurate drawings to assess whether proposed changes meet code requirements.

Renovation Workflows in Greater Vancouver

Successful renovation projects depend on seamless coordination between surveyors, architects, engineers, and contractors.

Starting with accurate as-built floor plans ensures:

• Reliable design development
• Reduced site verification visits
• Fewer RFIs and change orders
• Improved prefabrication accuracy
• Faster project timelines

Without a verified spatial baseline, downstream design and construction decisions become significantly more uncertain.

Measurement Accuracy and Quality Assurance

Manual measurement methods are inherently limited. They often fail to capture:

• Wall plumbness and deflection
• Ceiling height variations
• Complex MEP routing
• Structural irregularities

In contrast, 3D laser scanning captures millions of spatial data points and typically achieves 1–4 mm accuracy, depending on site conditions and scanner technology.

This level of precision significantly improves design reliability and reduces construction risk.

Scan-to-BIM and Digital Deliverables

The industry is rapidly shifting toward Building Information Modeling (BIM), where spatial data is converted into intelligent 3D models.

A Scan-to-BIM workflow transforms point cloud data into:

• AutoCAD (DWG) drawings
• Autodesk Revit (RVT) models
• Coordinated architectural and MEP layouts
• Clash detection-ready digital environments

These models reflect real-world conditions and enable architects and engineers to design with confidence.

Risk Mitigation and Cost Control

Inaccurate or incomplete site data is one of the leading causes of construction rework.

Key risks include:

• Design clashes discovered during construction
• Fabrication errors in millwork or steel
• Permit delays due to inconsistent drawings
• Budget overruns from change orders

High-quality as-built documentation mitigates these risks early. In many cases, a relatively small investment in laser scanning can prevent significantly larger construction costs later in the project lifecycle.

When You Need As-Built Drawings or Laser Scanning

As-built documentation is essential when:

• Original drawings are missing or outdated
• Major renovations or tenant improvements are planned
• Structural modifications are required
• Permit applications demand verified existing conditions
• Complex MEP systems must be coordinated

In Vancouver's dense urban environment, many buildings lack reliable archival documentation, making reality capture a critical first step.

Technical Breakdown: Accuracy and Deliverables

Modern surveying workflows typically include:

• Terrestrial laser scanning (1–4 mm accuracy)
• Unified point cloud datasets
• 2D CAD floor plans and elevations
• 3D BIM models (LOD depending on scope)

These deliverables allow design teams to work directly from verified site conditions instead of assumptions.

Methodology: How As-Built Data Is Created

Professional reality capture follows a structured workflow:

1. Reality Capture – 3D laser scanning of existing conditions 2. Data Processing – point cloud registration and verification 3. Model Development – conversion into CAD/BIM formats 4. Quality Control – cross-checking against field conditions

Common Myths About As-Built Drawings

Myth 1: Hand measurements are sufficient

Reality: They cannot reliably capture irregular geometry or structural deviations.

Myth 2: Laser scanning replaces surveyors

Reality: Surveyors define legal boundaries; scanning captures physical conditions. Both are required in many projects.

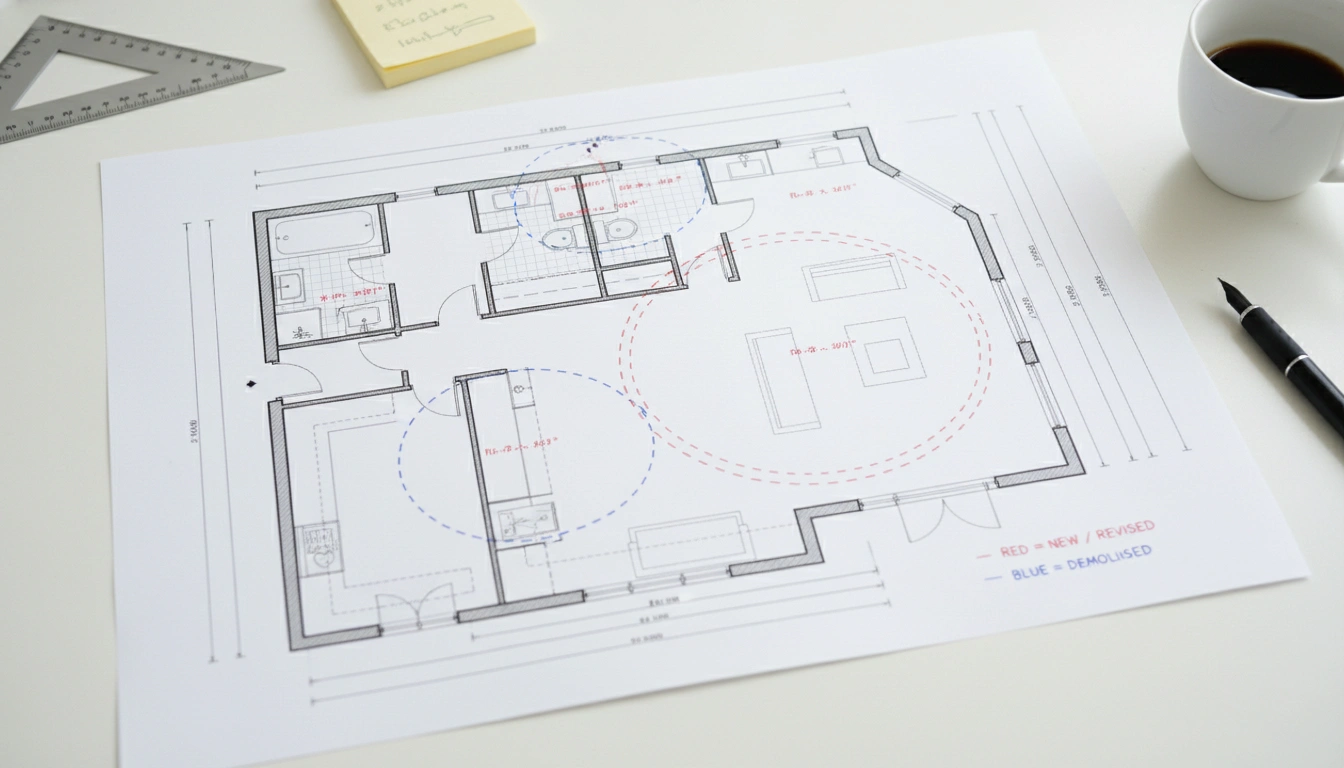

Myth 3: Redlines are equivalent to as-builts

Reality: Redlines are informal and prone to error; measured drawings are verified and precise.

Myth 4: Only large projects need as-builts

Reality: Residential and small-scale renovations often benefit the most from accurate documentation.

FAQ

What is the difference between as-built and construction drawings?

Construction drawings represent design intent, while as-builts reflect the final built condition.

Are as-built drawings required in Vancouver?

They are often required or strongly recommended for permits and renovations.

How accurate is 3D laser scanning?

Typically 1–4 mm depending on site conditions and equipment.

What do as-built drawings include?

Floor plans, elevations, sections, reflected ceiling plans, and MEP layouts.

Can scanning capture inside closed walls?

No. Hidden systems must be documented during construction phases or with coordinated records.

What affects cost?

Size, complexity, and required level of BIM detail.

Who is responsible for as-builts?

Typically architects or specialized surveying/measurement firms.

Final Thoughts

Accurate as-built drawings are a designer's secret weapon for achieving flawless interior renovations and space planning in Vancouver. By leveraging professional 3D laser scanning services, interior designers can eliminate costly measurement errors, avoid rework, and ensure precise installation of custom cabinetry, millwork, and complex MEP (Mechanical, Electrical, and Plumbing) systems.

Why As-Built Floor Plans Are Critical for Interior Designers

A digital-first approach captures every millimeter of a building's existing conditions, reducing the risks associated with:

• Design clashes between new and existing elements
• Unexpected site conditions or irregularities
• Change orders that drive up costs
• Permit delays due to inaccurate documentation

The Architecture of Precision: Key Drivers for Vancouver Projects

Professional measurement transforms interior design by combining technology, regulatory knowledge, and quality assurance. Key pillars include:

1. BC Building Code Compliance

The City of Vancouver enforces strict building regulations. Accurate as-built documentation ensures that design proposals:

• Meet fire safety and egress requirements
• Respect unprotected opening and separation standards
• Facilitate smooth municipal approvals for renovations

Without verified measurements, projects risk permit delays, rework, or code violations.

2. Streamlined Renovation Workflows

Traditional workflows often rely on outdated drawings or assumptions, leading to emergency redesigns during demolition. Modern measurement establishes a single source of truth from the outset, avoiding costly surprises.

3. Measurement Accuracy and Quality Assurance

Professional 3D laser scanning systems capture millimeter-level precision (typically 1–5 mm). Combined with rigorous QA processes, this ensures all dimensions are ready for immediate design use, eliminating human error from tape-measure methods.

4. Scan-to-BIM and Documentation Standards

The industry is increasingly moving from 2D drawings to Building Information Modeling (BIM). Scan-to-BIM converts point clouds into intelligent 3D models containing material metadata, spatial relationships, and structural details, representing the gold standard in Vancouver design documentation.

5. Risk Mitigation and Cost Control

When Professional As-Built Services Are Necessary

Buildings change over time, and relying on legacy blueprints is risky. Professional as-built measurements are critical in scenarios such as:

High-Density Condo Optimizations & Custom Millwork

Technical challenge: Tight floor plans, warped walls, offset structural columns

Workflow benefit: Accurate floor plans and interior elevations allow precise casework design

Financial impact: Prevents on-site adjustments and wasted materials

Regulatory consideration: Aligns with strata and municipal plumbing codes

Heritage Building Restorations

Technical challenge: Irregular geometries, sagging floors, ornate architectural details

Workflow benefit: Non-invasive 3D scanning preserves historical elements

Financial impact: Detects hidden structural issues before construction

Regulatory consideration: Supports heritage committee approvals with verified documentation

MEP Coordination and Reflected Ceiling Plans (RCPs)

Complex lighting, HVAC, and smart-home systems require precise mapping

Scan-to-BIM ensures contractors can bid accurately and eliminates unnecessary risk padding

Technical Breakdown: Accuracy, Deliverables, and Cost Impacts

Transitioning from manual measurement to LiDAR-based scanning improves both efficiency and project economics:

Risk Factor: Undocumented Utilities

Traditional Impact: Pipes/ducts hit during demolition

3D Scan Mitigation: Point clouds capture all MEP systems

Financial Implications & Savings: Avoids emergency redesigns; saves 15–20% of delay costs

Risk Factor: Material Waste

Traditional Impact: Prefabricated millwork fails to fit

3D Scan Mitigation: Exact geometry captured

Financial Implications & Savings: Eliminates field fitting and wasted premium materials

Risk Factor: Change Orders

Traditional Impact: Design clashes cause costly variations

3D Scan Mitigation: BIM clash detection resolves conflicts digitally

Financial Implications & Savings: Prevents $150,000+ in rework

Risk Factor: Permit Rejections

Traditional Impact: Drawings fail BC Building Code spatial checks

3D Scan Mitigation: Verified measurements ensure smooth approvals

Financial Implications & Savings: Eliminates holding costs from delays

Risk Factor: Site Revisits

Traditional Impact: Missing data requires repeated trips

3D Scan Mitigation: Virtual 360° walkthroughs allow remote verification

Financial Implications & Savings: Saves dozens of billable hours

Scan-to-BIM Workflow: Step-by-Step

Professional as-built measurement follows a structured workflow:

• Planning: Define Level of Development (LOD) and project scope
• Capture: Terrestrial laser scanners measure millions of points per second
• Processing: Align and clean point cloud data
• Modeling: Convert point clouds into parametric 3D BIM models
• Delivery: Export multi-format deliverables (Revit, AutoCAD, PDF) with QA checks

Myth-Busting: Traditional Methods vs Professional Reality Capture

Myth 1: Hand measurements are sufficient for interior design

Fact: Un-square corners and floor slopes lead to cumulative errors

Myth 2: Contractor red-lines are equivalent to as-built drawings

Fact: Red-lines are informal notes; as-builts are verified, legally defensible documents

Myth 3: 3D laser scanning is too expensive for residential projects

Fact: Scanning costs are a fraction of a single major construction error

Myth 4: Original blueprints reflect the actual building

Fact: Blueprints represent intent; as-builts capture reality

Frequently Asked Questions (FAQ)

What are as-built floor plans?

Detailed drawings representing the building's true, existing conditions, including modifications and deviations.

How does 3D laser scanning improve Vancouver interior design projects?

It captures millions of points in minutes, producing a millimeter-accurate digital replica for precise planning.

What's the difference between contractor markups and professional record drawings?

Markups are informal notes; professional as-builts are verified CAD/BIM models.

How do accurate as-builts affect contractor estimates and change orders?

They reduce "unknowns," allowing precise material takeoffs and eliminating costly change orders.

What deliverables should I expect from a scanning service?

2D floor plans, RCPs, elevations, cross-sections, Revit 3D BIM models, and optionally raw point cloud data.

Do I need as-builts for cosmetic renovations?

Yes. Even cosmetic work depends on accurate measurements to avoid material waste and installation errors.

How do as-builts help with BC Building Code compliance?

They verify that designs adhere to zoning, fire safety, and egress regulations, preventing permit delays.

What is the ROI for 3D laser scanning?

Scanning costs $1–10/sq ft, but ROI is often 10:1+ when factoring material savings and schedule efficiencies.

How does Scan-to-BIM support post-renovation facility management?

The digital twin serves as an interactive database for ongoing maintenance, with precise metadata on materials, utilities, and systems.

Conclusion

For interior designers in Vancouver, professional as-built floor plans are more than documentation – they are a strategic tool that ensures projects are executed flawlessly, on time, and within budget.

By adopting 3D laser scanning and Scan-to-BIM workflows, designers can transform challenging urban spaces, preserve heritage structures, and confidently navigate the BC Building Code.

In Vancouver's dynamic and highly competitive real estate market, clarity and quality of presentation are non-negotiable. For real estate professionals, interior designers, and property owners, success relies on one crucial factor: accurate and professional real estate floor plans Vancouver. These detailed visual aids are more than static photography; they offer a comprehensive, verified view of a property's spatial potential. This spatial intelligence is directly linked to higher buyer engagement, faster decision-making, and ultimately, quicker, more profitable sales.

Floor plans have evolved from simple 2D sketches into dynamic digital assets essential for modern property marketing. Data confirms their impact: properties featuring 3D floor plans can sell significantly faster. This guide explores why high-quality, accurate floor plans are not an amenity, but a professional necessity for thriving in the Vancouver real estate industry.

The foundational role of spatial intelligence in Vancouver real estate

Today's property search begins online, with a vast majority of buyers utilizing digital platforms to find their next home. In this digital-first environment, visual aids are paramount, but professional photographs alone are insufficient. Buyers demand spatial context—the flow, the layout, and the scale—to determine if a property meets their unique needs.

Beyond aesthetics: why buyers demand spatial intelligence

A floor plan is a scaled diagram providing a bird's-eye view of the property's arrangement, including wall lengths, room dimensions, door and window placements, and total square footage. This information directly addresses the buyer's need for control and informed decision-making.

1. Visualization and personal space planning

Floor plans are invaluable tools that clients implicitly require before scheduling a viewing. Buyers must visualize how their existing furniture or new purchases will fit into the space. Without this spatial clarity, a potential buyer is left guessing, which introduces friction into the sales process.

Floor plans help buyers:

• Determine room flow: they quickly grasp the relationships between rooms and the overall circulation path.
• Plan furniture placement: precise dimensions allow buyers to mentally place items like that favorite sofa or large bedroom set.
• Assess functionality: families, for example, often prioritize spacious, flowing floor plans with open areas, large kitchens, and dedicated laundry rooms, details instantly confirmed by a floor plan.

2. Facilitating comparison and screening

In a vast online market, buyers compare multiple listings simultaneously. Floor plans provide the precise data needed for effective comparison, reducing the likelihood of wasted viewings.

The professional imperative: mitigating risk with accurate floor plans

For real estate professionals and property sellers in British Columbia, accuracy is not a marketing perk—it is a critical, non-negotiable requirement that limits liability. In Vancouver's high-value market, square footage misrepresentation is a significant risk that can lead to legal battles and damages.

Precision technology: from laser measurement to 3D laser scanning services

To provide this level of accuracy, professional floor plan services rely on state-of-the-art measuring techniques. Laser-measured floor plans ensure dimensions are precise, fulfilling the industry requirement for reliability. Professional teams often utilize advanced methods derived from 3D laser scanning services to generate highly dependable documentation. This commitment to precision helps agents and property owners confidently present their listings, knowing the data is verifiable.

Legal defensibility and transparency in a competitive market

The most significant professional benefit of mandatory accurate floor plans is the mitigation of legal risk.

• Avoiding misrepresentation lawsuits: misrepresentation of square footage can lead to significant damages. Providing a clear, well-drawn floor plan helps prevent misunderstandings about boundaries, room sizes, and overall property details.
• Documentation of compliance: floor plans can be used as legal documents, ensuring both parties have a clear understanding of what is included in the sale. Furthermore, they can help demonstrate compliance with relevant building codes and zoning regulations, crucial for commercial properties.
• Building trust: given that buyers want as much information as possible before contacting an agent, providing detailed floor plans upfront increases transparency. This professional approach builds trust, essential for closing deals.

Gaining a strategic marketing advantage in Greater Vancouver

In the Greater Vancouver region, where listings compete fiercely for attention, floor plans offer a distinct marketing advantage that translates directly into business results.

Data-driven sales acceleration

Listings that incorporate real estate floor plans consistently outperform those that rely solely on photography. Data shows:

• Increased click-throughs: floor plans have the potential to increase click-throughs from buyers by 52%.
• Higher engagement: 93% of home buyers are more engaged with listings that feature floor plans.
• Faster decisions: properties with 3D floor plans sell faster, as they allow buyers to quickly assess layout and flow.

Client testimonial

– Alyssa Bilous, Top 1% Realtor, Greater Vancouver

https://www.instagram.com/alyssa.realtor.vancouver/

Combining visuals for maximum impact

The most effective online strategy for real estate floor plans Vancouver listings is the seamless integration of dimensional plans with high-quality photography.

• Photos set the scene: high-quality photographs draw the buyer's eye and showcase the aesthetics and features of individual rooms.
• Floor plans provide context: the floor plan provides the crucial spatial intelligence, showing how that stunning kitchen connects to the open-concept living area and quantifying the space.

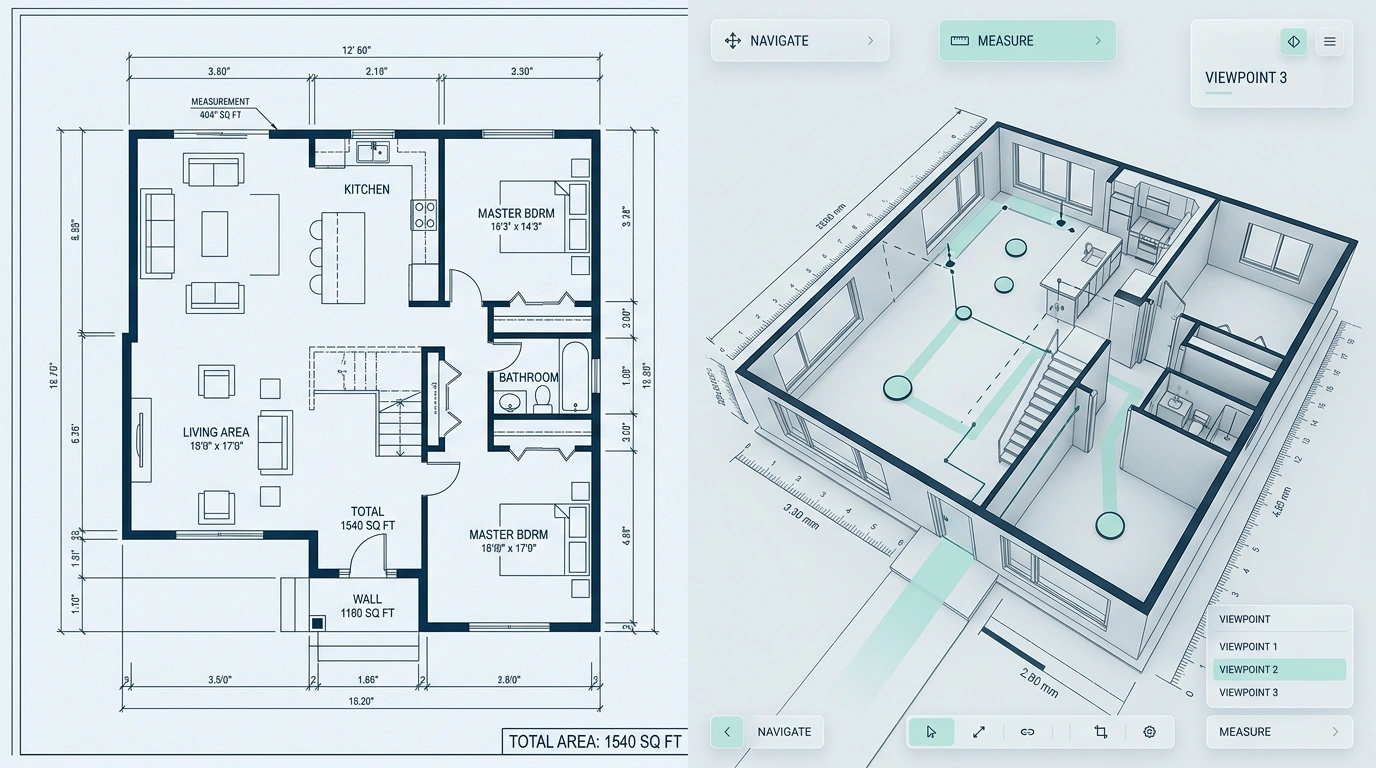

Professionally drawn 2D real estate floor plan of a Vancouver home living room showing walls and windows

From 2D precision to immersive 3D formats

The evolution of technology has introduced several formats for real estate floor plans. Choosing the right format depends on the property type and marketing goals.

• 2D floor plans: these are the foundational tools, providing scaled, top-down diagrams. They offer precise and straightforward visualizations of room dimensions and spatial relationships.
• 3D floor plans: these three-dimensional representations provide a realistic, immersive view, including height and depth. They revolutionize visualization by offering a sense of scale and flow that 2D plans cannot match.
• Enhanced and interactive formats: advanced services include colored floor plans for appeal, virtual staging to integrate furniture, and interactive plans that allow buyers to engage immersively.

The professional's toolkit: floor plans as the bedrock of project execution

For industry professionals—architects, builders, and developers—floor plans serve a more profound purpose than mere marketing; they are the bedrock of project execution, cost control, and regulatory compliance.

Essential for home renovation Greater Vancouver

Given the aging housing stock in some of Vancouver's desirable neighborhoods, many sales lead directly to substantial home renovation Greater Vancouver projects. For these projects, detailed floor plans are essential at the earliest stages.

• Renovation planning: renovation planning requires detailed information about existing conditions to avoid structural surprises and costly redesigns.
• Structural modifications: floor plans show the placement of walls, doors, and windows, crucial for determining the structural implications of changes, such as removing a load-bearing wall.
• Interior designer tools: as primary interior designer tools, floor plans help professionals and clients collaborate effectively, ensuring the resulting space is functional and aesthetically pleasing.
• Building permit drawings: for substantial renovations in Greater Vancouver, municipalities require detailed building permit drawings to ensure compliance with standards such as the BC Building Code. Professional floor plans, often delivered as real estate CAD files, integrate seamlessly into this submission process.
• Construction documentation: accurate floor plans form the basis of all construction documentation, providing reliable base plans that depict existing building conditions accurately.

Ensuring reliable contractor estimates and cost efficiency

For builders, accuracy translates directly into profit margins and timeline adherence.

• Cost efficiency: by allowing builders to visualize the finished project and identify potential issues before breaking ground, 3D floor plans and precise measurements help avoid costly mistakes.
• Reliable quotes: detailed floor plans, including dimensions and structural context, enable contractors to generate far more precise and competitive contractor estimates for materials and labor.
• Project management: professionals who rely on comprehensive as-built records praise the reliability and efficiency of specialized measuring services that provide highly accurate floor plans.

Strategic considerations: professional services vs. DIY

Not all floor plans are created equal. To maximize impact, agents and owners must prioritize quality and professionalism. While various DIY apps exist, professional services are essential for high-value properties in Vancouver to ensure accuracy and limit liability.

Comparison: Professional Service vs. DIY Apps

Professional Service:

• Accuracy: Laser-measured, highly accurate, and insured.
• Aesthetics: Visually stunning, customized, and architectural-grade.
• Deliverables: Offers 2D, 3D, CAD files, and virtual staging.
• Efficiency: Fast turnaround, often next-business-day delivery.

DIY Apps:

• Accuracy: Measurements may be inaccurate or require verification.
• Aesthetics: Often basic sketches or limited graphics.
• Deliverables: Typically outputs basic 2D layouts.
• Efficiency: Requires significant time investment from the agent.

Key qualities of high-impact floor plans

When commissioning real estate floor plans Vancouver, professionals should look for these attributes:

• Accuracy: the foundation of trust; precision measurements are critical to avoid legal disputes.
• Clarity and readability: the plan must be easy to interpret for individuals without a technical background.
• Visual appeal: the design must be professional, supporting the property's overall presentation.
• Comprehensive detail: inclusion of compass markers (for sun orientation), door/window placements, and overall square footage adds value.

The future of property visualization: immersion and innovation

The trajectory of property visualization points toward even greater technological integration. Real estate floor plans Vancouver listings will increasingly leverage virtual reality (VR) and augmented reality (AR).

• Virtual tours and AR overlays: VR tours allow buyers to explore properties virtually. Providers already offer complementary services such as Matterport virtual tours alongside their floor plans.
• 3D scanning for architectural visualization: the use of 3D laser scanning services ensures that the foundation for these immersive tours—the underlying data—is meticulously accurate, enabling lifelike 3D floor plans.
• Virtual staging: the combination of accurate floor plans with virtual staging is a powerful trend, transforming empty layouts into inviting, modern spaces and maximizing online appeal.

Conclusion: making accurate floor plans your competitive edge

In Vancouver's highly valued and fast-paced market, the inclusion of detailed and accurate floor plans is a non-negotiable asset, moving from a luxury add-on to a standard expectation.

For the realtor, a professional floor plan is the key to attracting qualified leads, facilitating quicker decisions, and mitigating legal risk associated with measurements.

For the architect, interior designer, and contractor, these detailed plans provide the foundational construction documentation required for precision, efficient renovation planning, dependable contractor estimates, and adherence to building permit drawings standards.

Introduction

In the competitive and highly regulated real estate landscape of the Greater Vancouver Area (GVA), starting a project with inaccurate data is a recipe for costly setbacks and delays. For interior designers, precision is non-negotiable. Your creative vision must align perfectly with existing physical conditions, and this alignment relies on one crucial factor: professional as-built documentation. Investing in precise, verified interior design floor plans Vancouver is not just a best practice; it is the foundational strategic investment to safeguard your project's integrity. It mitigates risk, ensures full adherence to standards like the BC Building Code, and empowers you to execute stunning visions seamlessly. These detailed records capture the structure exactly as it stands today, making them essential for efficiency and design confidence across residential and commercial projects.

Understanding the indispensable value of as-built drawings in the Greater Vancouver Area

As-built drawings are not merely an administrative task; they are the definitive statement of a structure's reality. Unlike the original blueprints, which show the intent, as-builts detail the actual execution, including every modification made during construction.

Defining as-built documentation: reality vs. intention

An as-built drawing is a definitive record created by a contractor (or professional surveyor) when a project is finished. It documents the reality of the built environment. Because problems inevitably arise during construction—necessitating changes due to material availability, constructability concerns, or value engineering—the as-built document reflects all these alterations, big and small, compared to the initial intent.

As-built documentation details precisely how the final construction was executed. This documentation can be kept for later reference to show how things changed during the construction process.

What an as-built drawing typically documents:

• Actual layout: the precise placement of elements like walls, doors, and windows.
• Sizes and dimensions: verified measurements and distances between elements.
• Materials used: a list of materials used, such as wood, steel, or concrete.
• Utilities: the locations of critical systems, including pipes, wires, HVAC, and gas lines.
• Changes and adjustments: any changes made during construction are recorded, often using revision clouds or delta symbols (Δ).

This documentation serves as a critical detailed record for contractors, subcontractors, and, most importantly, for building owners who require exact details for future repairs or maintenance.

Why precision is paramount in the Vancouver market

In a high-value property market like Vancouver, precision is not optional—it is essential. Starting a project with an inaccurate understanding of the existing structure is the quickest route to budget overruns and schedule slippage. Even minor errors can cascade into costly delays.

Key benefits in the GVA:

• Reduced rework and change orders: by clearly defining the space upfront, designers and contractors can avoid unnecessary revisions and costly change orders. Every inaccurate measurement can snowball into wasted materials and critical schedule delays.
• Avoidance of costly clashes: detailed architectural drawings help project teams avoid clashes with existing structural and architectural elements, preventing expensive surprises during implementation. This is crucial for seamless integration of new layouts and systems.
• Reliable contractor estimates: verified measurements derived from as-builts are essential for preparing reliable contractor estimates, ensuring that bids accurately reflect the scope of work and existing conditions, reducing the risk of mid-project cost inflation.

For property owners, these final drawings are like a snapshot of the finished project, providing the exact details needed if they ever wish to change or fix something in the future, such as locating a specific valve for repairs.

The critical distinction: contractor markups vs. professional record drawings

In the field, it is common to encounter various terms used interchangeably, but professionals must understand the critical distinction between contractor markups and professional record drawings. This distinction directly impacts project accuracy, compliance, and legal defensibility.

Understanding the difference

Contractor markups (red-line drawings): these are informal notes or sketches added to the original plans by the contractor during construction, often in red ink, showing on-site changes. While useful internally, markups are typically unverified, lack precise measurement, and should not be relied upon for legal or regulatory purposes. A contractor might roughly note that a wall moved 10 inches, but this lacks the necessary precision and context for professional design or compliance reporting.

Professional record drawings (as-builts): these are the final, verified, and dimensionally accurate documents compiled by design professionals or qualified surveyors, based on detailed site measurements. They go through a rigorous quality assurance (QA) process to ensure every measurement and system location is accurate and documented according to industry standards. For professional measurement services in Vancouver, the focus is always on delivering these reliable, finalized documents.

Risks of relying on unverified markups

Relying on unverified markups instead of professional record drawings can lead to severe consequences, including design errors, budget overruns, and liability exposure due to inaccurate data.

Beyond blueprints: leveraging technology for millimetre-level accuracy

Modern design projects demand a level of precision that traditional measuring tools cannot provide. This demand has spurred a technological revolution, moving far beyond the limitations of manual measuring tape. For interior designers, this is where advanced technology provides the answer.

The revolution of 3D laser scanning services

For complex commercial properties, large residences, or detailed home renovation Greater Vancouver projects, manual measurement carries significant risks of human error and is excessively time-consuming. Today, 3D laser scanning services and LiDAR (Light Detection and Ranging) technology are the industry standard for collecting reliable, precise data.

LiDAR scanning: this technology captures detailed, high-resolution 3D data of existing structures, collecting potentially millions of data points per second. This depth of detail ensures unmatched accuracy, significantly minimizing errors and saving time on site, thus providing a reliable and verified foundation for any project. Laser scanners can capture spatial data with up to ±2 mm accuracy.

Comprehensive coverage: 3D scanning ensures precision tools capture measurements correctly the first time, documenting even hard-to-reach spaces rapidly and thoroughly.

Choosing an as-built survey company in the GVA that leverages this advanced technology is vital for safeguarding a project's integrity, ensuring that every measurement is verified and legally defensible.

Deliverables for modern design workflows (BIM and point cloud data)

The raw data captured by 3D laser scanners is incredibly versatile and can be converted into advanced digital models, providing essential digital assets for modern design and construction documentation.

• Point cloud data: this raw, high-resolution data set provides a rich source of detail—a digital 3D representation of the physical space—that can be used directly by specialized design software (like Revit or AutoCAD) for conversion into the required models. Converting point cloud data to a Building Information Model (BIM) is a critical service for redevelopment and refurbishment projects.
• BIM (Building Information Models): a 3D BIM model (often in Revit or Archicad format) provides an interactive, updated three-dimensional representation of the built structure. This is considered the as-built BIM modeling service or LOD 500 stage in BIM workflows and incorporates precise spatial data, material specifications, and system integrations. BIM models are invaluable resources for facility managers and future design teams. BIM technology facilitates an integrated approach, enhancing collaboration and continuous updates among stakeholders.
• Virtual tours: services may also include Matterport virtual tours or 360° panoramic photographs, which offer stakeholders an easily navigable view of the project site, documenting site changes and tracking progress remotely.

These digital outputs enhance the workflow of interior designers, improve collaboration with architects and contractors, and ensure that all design concepts align perfectly with the existing spatial limitations.

As-built documentation as essential interior designer tools

For interior designers, particularly those working in the compact, unique, or historic spaces common across Vancouver, as-built documentation is the foundational resource that allows creativity to flourish without the anxiety of structural conflict. As-built drawings are fundamental interior designer tools.

Eliminating guesswork for seamless space planning

Interior design success hinges on understanding every detail that is already present. Comprehensive as-built drawings provide the precise measurements of the current space, including walls, doors, windows, and fixed installations.

• Confidence in design: this level of detail ensures designers avoid errors caused by incorrect assumptions and allows them to design with confidence, knowing their plans will align seamlessly with the actual structure.
• Precise space planning: renovations often require repositioning walls, cabinetry, or fixtures. Accurate as-built measurements ensure that proposed layouts, custom millwork, and furniture fit perfectly within the existing structure.
• Streamlined workflow: with all critical information, including floor plans and elevations, clearly documented, designers reduce the time spent revisiting the site for additional measurements or clarifications, accelerating the design cycle dramatically.

As one interior designer noted, having accurate as-built drawings is critical to their work, providing reliability and quick turnaround times. Interior designers act as visionaries, taking a 2D drawing and projecting it into the third dimension, which allows them to find problems that may arise during construction while still in the planning process, thus avoiding potential pitfalls missed by others.

Coordination of complex systems (MEP and RCPs)

Modern renovations require intricate coordination between aesthetic finishes and the hidden mechanical and electrical systems. The design must account for the reality of these existing components to ensure functionality and safety.

• Electrical and lighting coordination: as-built drawings show the exact placement and routing of electrical panels, outlets, switches, light fixtures, and conduits. The Reflected Ceiling Plan (RCP) is especially vital, documenting the locations of existing lighting, sprinkler systems, and ventilation. Designers rely on this detail to plan new lighting schemes and avoid conflicts with HVAC ductwork.
• Plumbing and HVAC integration: precise documentation of plumbing fixtures, piping, drainage, and HVAC components (ductwork, vents, equipment locations) ensures that new cabinetry and finishes do not obstruct critical systems.
• Seamless collaboration: as-built drawings act as a common reference point—a universal language—ensuring that all parties, including designers, contractors, and engineers, are working from the same verified site conditions.

Enhancing client confidence and design integrity

The precision provided by as-builts translates directly into client satisfaction and project integrity. When designers present concepts supported by verified spatial data, clients gain instant trust.

• Visualizing changes: with accurate floor plans and elevations, designers can create realistic renderings and detailed design specifications that help clients visualize the final outcome before construction begins.
• Minimizing mistakes: interior designers focus heavily on details like material selection, cabinet layouts, flooring, and decorative lighting. Having field-verified dimensions ensures that the chosen materials, finishes, and furniture will integrate seamlessly, avoiding mistakes like oversized items or misaligned custom millwork.
• Reputation and credibility: delivering flawless designs that align perfectly with the existing structure not only satisfies clients but significantly elevates a designer's reputation for professionalism and attention to detail.

Compliance and risk management: navigating the BC Building Code

In the GVA, adherence to the BC Building Code and local municipal bylaws is not just a best practice—it is mandatory for construction and renovation. Accurate as-built surveys are an essential tool for compliance, expediting approvals, and minimizing liability. Selecting a professional firm ensures your project adheres to all legal requirements.

Ensuring regulatory adherence and expediting building permit drawings

Accurate documentation of existing conditions is a cornerstone for meeting city requirements and ensuring seamless approval for any renovation project. Designers rely on precise as-builts to ensure their subsequent plans meet city codes and standards before submission.

• Permit requirements: building permit drawings often require accurate representations of the existing structure and critical systems (like fire safety) to ensure the proposed renovations adhere to current safety and zoning regulations. Poorly documented or inaccurate as-builts can lead to failed inspections, project delays, or rejection of permit applications.
• Code verification: comprehensive as-builts include necessary details for compliance checks, such as exterior facade measurements for zoning, window and door placements for calculating unprotected openings, and Reflected Ceiling Plans for fire safety compliance.
• Mandatory documentation: as-built drawings are often contractually binding documents necessary for obtaining critical certifications, such as occupancy permits, or for closing permits after construction.

Mitigating risk for home renovation Greater Vancouver projects

Starting a home renovation Greater Vancouver project, especially on older or heritage buildings (like those from the 1930s or 1940s common in areas like Kitsilano), carries inherent risks related to unforeseen site conditions, such as hidden structural issues, utility conflicts, or hazardous materials like asbestos.

• Unforeseen conditions: accurate as-built documentation, particularly when derived from comprehensive 3D laser scanning services, reduces the chance of expensive, unforeseen issues like discovering hidden structural impediments or mislocated utility lines. For instance, not knowing the exact location of underground utilities or structural beams can derail a project or lead to significant cost increases when encountered during excavation or demolition.
• Safety and hazmat: as-builts can indicate the location of hazardous materials (like asbestos, prevalent in pre-1980 Vancouver homes) and critical safety elements. This is paramount for the safety of tradespeople and ensuring responsible deconstruction practices.
• Historical documentation: for heritage projects, where modifications are tightly regulated, accurate as-built surveys document existing conditions precisely, helping designers propose compliant renovations without damaging original structures.

Accuracy's impact on contractor estimates and budgets

The financial clarity provided by accurate as-builts is invaluable for everyone involved, particularly for ensuring reliable financial projections.

Accurate contractor estimates are founded on reliable as-built data. If a contractor relies on outdated plans or manual measurements, they often introduce significant contingency padding to cover potential unknowns.

The precision of verified as-builts allows contractors to:

1. 1. Plan logistics accurately: detailed plans ensure every project starts on the right footing, allowing for precise material procurement and logistical planning.
2. 2. Assess scope reliably: contractors can accurately assess the scope of work, including structural or mechanical changes, leading to tighter, more reliable bids.
3. 3. Minimize financial risk: by eliminating measurement discrepancies and unforeseen clashes (e.g., between MEP and structure), the risk of budget overruns and material waste is significantly reduced.

Comprehensive as-built deliverables for interior design success

When hiring a professional as-built firm, it is essential to understand exactly what deliverables you should expect. A professional firm provides a robust package of complete, accurate, and clearly formatted documentation tailored to support the entire design and renovation planning workflow, extending far beyond simple measurements.

Detailed accurate floor plans: the core foundation

Accurate floor plans are the most critical and frequently requested component of the as-built package. These revised horizontal layouts show the finished arrangement of spaces and are indispensable interior designer tools.

Key details included in high-quality plans:

• Exact dimensions: precise room sizes, ceiling heights, and changes in elevation (like sill heights and bulkhead dimensions).
• Structural elements: verified locations, dimensions, and orientations of walls, columns, beams, and door/window locations, including door swing directions.
• Fixtures and features: placement of permanent fixtures, such as plumbing elements (sinks, toilets, bathtubs), kitchen appliances, built-in cabinets, and, where applicable, HVAC equipment and electrical components.
• Materials and finishes: indication of floor materials (e.g., wood, tile) and notes on wall/ceiling finishes.
• Utility and service details: location of key utilities, including gas lines, water supply, drainage, and electrical panels.

This level of detail ensures that designers can confidently build or renovate while minimizing errors and meeting regulatory compliance requirements.

Critical vertical and overhead documentation (elevations and RCPs)

Comprehensive documentation must capture the vertical structure and overhead elements essential for integrated design and system coordination.

As-built elevations: these vertical drawings show the final appearance of exterior faces or interior walls. They depict accurate building facade details, including walls, doors, windows, and critical vertical measurements like sill/lintel heights. Interior elevations detail permanent fixtures and finishes.

Reflected ceiling plans (RCPs): RCPs are vital for integrating lighting layouts. They show the updated layout of ceiling-mounted elements, including:

• Lighting fixtures (recessed lights, pendants, chandeliers) and switch locations.
• HVAC components (air vents, grilles, diffusers).
• Fire safety equipment (sprinklers, smoke detectors).
• Ceiling features (bulkheads, dropped ceilings, materials, and heights).

Integrating utilities: MEP and fire safety systems

For complex renovations, knowing the precise location of existing Mechanical, Electrical, and Plumbing (MEP) systems is crucial. As-builts detail these systems to ensure safety, functionality, and compliance, particularly in commercial or multi-family residential structures.

MEP systems: documentation includes the layout and location of HVAC ductwork, air handling units, electrical panels, wiring routes, and plumbing fixtures/piping.

Fire safety: crucial elements like fire alarms, extinguishers, emergency exits, and sprinkler head locations are documented.

This incorporation of critical systems allows interior designers to account for these elements in their plans, ensuring compliance with standards and enabling confident custom design.

The long-term strategic value for property stakeholders

The utility of precise construction documentation extends far beyond the construction or design phase; it is a long-term asset that maximizes property viability and value for all stakeholders, from property owners to real estate floor plans providers.

Future-proofing for renovation planning and maintenance

As-built documentation is crucial for facility management programs, serving as the essential reference point for maintenance, upgrades, and space utilization planning. Buildings, much like living organisms, change over time through renovations and adjustments, meaning as-built records should ideally be dynamic and accessible.

• Informed maintenance: the detailed record of critical systems (electrical panels, HVAC, plumbing) allows facility managers to make informed maintenance decisions, saving time and resources in the long term. For instance, knowing the exact location of pipes or wires is essential for repairs or system upgrades.
• Simplified renovations: when the time comes for future additions or alterations, accurate as-builts provide a clear understanding of the existing structure, simplifying renovation planning and preventing costly surprise issues. This documentation reduces guesswork and provides an honest, realistic depiction of the structure for future architects and engineers.

Maximizing property value with professional real estate floor plans

In the competitive GVA real estate market, professional documentation adds tangible value and credibility to any property listing.

• Enhanced listings: accurate real estate floor plans showcase properties with professional-grade 2D and 3D layouts, helping potential buyers visualize the space and making listings more engaging and appealing.
• Leasing and management: for commercial properties, building owners and managers require highly detailed drawings for asset and facility management. Specialized services, such as BOMA-standard-compliant measurements, ensure accurate accounting of leasable areas, which is critical for property management and leasing.
• Informed transactions: as-built drawings enable building managers to predict maintenance needs and budgets, leading to more informed purchasing and selling decisions, reassuring potential buyers of the real estate's quality and value.

Importance of high-quality construction documentation

High-quality, organized as-built documentation enhances how the market perceives a company and helps the business grow in the long run. Messy or incomplete drawings reflect poorly on contractors and can impede future business opportunities.

Top-tier construction documentation ensures:

1. 1. Transparency: providing owners with a comprehensive snapshot of the finished project.
2. 2. Legal protection: serving as critical documentation for project closeout, settling contractual obligations, or handling insurance or legal issues related to the building.
3. 3. Efficiency: facilitating easier long-term facility management and future project readiness.

Choosing the right as-built partner in Vancouver

Choosing the right as-built partner in Vancouver can make the difference between a seamless, well-executed project and one plagued by costly revisions. Selecting an experienced and professional firm is crucial to ensure that your project starts with the required reliability and accuracy. A reliable partner offers not only technical accuracy but also proven experience and a commitment to local standards.

Criteria for selecting a professional survey company

Interior designers, architects, and contractors should look for providers who specialize in precision and adhere to the rigorous standards required in British Columbia.

Key factors to evaluate:

• Local experience and compliance: choose a firm with proven experience in the GVA, demonstrating familiarity with Vancouver Building Bylaws, permit submission requirements, and the BC Building Code.
• Technology utilization: prioritize companies that utilize advanced measurement tools, specifically 3D laser scanning services and LiDAR, to achieve millimeter-level accuracy and eliminate human error.
• Expertise and quality standards: the quality of the final documentation hinges on the skills of the surveying professionals and BIM modelers. Look for firms that offer BOMA compliance expertise for area calculations.
• Tailored deliverables: the provider should deliver files in scalable, useable formats tailored to the professional's needs (e.g., editable DWG, precise PDFs, and BIM/Revit models).
• Speed and communication: in construction, time is money. A professional partner should offer a fast turnaround time (sometimes as quickly as 48 hours for certain packages) and responsive communication.

Best practices for high-quality as-builts

To ensure reliable construction documentation that will enhance contractor estimates and streamline the design phase, project teams should adhere to structured workflows and best practices.

5 fundamental strategies for improving as-built quality:

1. 1. Continuous updating: avoid waiting until the very end of construction to record changes. Continuously updating drawings throughout the project life cycle—for example, updating changes weekly or monthly—improves accuracy and makes the final process more efficient.
2. 2. Use of precision technology: rely exclusively on precision tools like laser scanning instead of manual tape measures, which are susceptible to error and lead to costly setbacks.
3. 3. Comprehensive data capture: ensure documentation captures all critical system locations (MEP, fire safety) and architectural features. Failing to verify utilities can lead to on-site surprises that derail construction.
4. 4. Rigorous quality assurance (QA/QC): all deliverables must go through a non-negotiable quality control step where all dimensions, annotations, and layer standards are verified to ensure files are accurate, complete, and ready for immediate design use.
5. 5. Digital accessibility: use cloud-based digital tools to ensure all stakeholders—designers, contractors, and facility management teams—have immediate access to the most up-to-date drawings and information online.

By integrating digital tools and continuously updating drawings, professional teams ensure clarity, accuracy, and efficiency across the entire project lifecycle, minimizing the pitfalls that commonly inflate contractor estimates.

Conclusion: building confidence with precise interior design floor plans Vancouver

The message is clear: professional as-built drawings are not a mere formality but the foundational strategic investment for any design or construction project in the Greater Vancouver Area. For interior designers, these verified accurate floor plans are critical interior designer tools that ensure every decision is based on precise, verified data.

By utilizing advanced 3D laser scanning services to obtain precise construction documentation, professionals gain the clarity necessary to navigate complex processes, from streamlined renovation planning to submitting compliant building permit drawings.

Accurate as-built documentation secures project success by:

• Minimizing financial risk: preventing field conditions from triggering expensive change orders, ensuring reliable contractor estimates, and protecting budgets.
• Ensuring compliance: meeting local municipal standards and BC Building Code requirements to facilitate faster permit approvals and project closeout.
• Empowering design excellence: providing designers with verified data that eliminates guesswork, streamlines workflows, and ensures every furniture, fixture, and custom element fits perfectly.
• Maximizing asset value: creating comprehensive records that support long-term facility management and enhance property listings with accurate real estate floor plans.

A Reflected Ceiling Plan (RCP) is a detailed overhead view of a ceiling layout, highlighting the placement of lighting fixtures, HVAC vents, sprinklers, and structural components. By providing a “reflected” perspective, these drawings allow designers and contractors to coordinate seamlessly across various trades.

Why RCPs Are Essential for Interior Designers

Many designers simply don’t recognize the ceiling as a valuable design element. They focus on walls, floors, and furnishings, forgetting that the ceiling is essentially the “fifth wall” of a room. This oversight can result in missed opportunities to create visual interest and enhance the overall aesthetic of a space.

Ceiling design can be technically challenging, involving considerations such as lighting, HVAC systems, and structural elements. Some designers may shy away from these complexities, opting for simpler solutions. Additionally the pressure to complete projects quickly interior designers may not allocate sufficient time to consider ceiling design.

Interior designers often juggle multiple variables when working on a project, from aesthetic considerations to functional requirements.

Reflected Ceiling Plan Drawings (RCP), supported by MeasureBuilt team expertise, as-built drawings in AutoCAD, offer a powerful solution to simplify this process by providing a clear, detailed layout of ceiling elements.

These drawings help designers visualize and plan the placement of lighting, ventilation, and structural components, ensuring smooth project execution. Let’s explore five essential hacks to make the most of RCP drawings in your projects.

Hack 1: Collaborate Early with a Professional Measurement Service

Accurate measurements are the foundation of a reliable RCP. Partnering with a professional measurement service ensures every detail is captured, from ceiling heights to fixture placements. Early collaboration reduces the likelihood of revisions and keeps your project on track.

At MeasureBuilt, we use CAD Software for Precision and Flexibility

Computer-aided design (CAD) software is an invaluable tool for creating precise RCPs. It allows us to:

• Make quick adjustments as project needs evolve.
• Add layers to include multiple design elements.
• Share digital files with clients and contractors seamlessly.

CAD’s flexibility ensures that your plans remain adaptable and future-proof. Check our service page to know more.

Hack 2: Customize Your RCP for Client

One size does not fit all when it comes to RCPs. Tailor your plans to include details that matter most to your clients and contractors, such as:

• Fixture placements (lighting, fans, and smoke detectors).
• Materials and finishes.
• HVAC and ductwork integration.

Customized RCPs eliminate ambiguity and ensure everyone involved in the project is on the same page.

Hack 3: Incorporate Layered Details for Comprehensive Project Documentation

Layering details in your RCP creates a complete blueprint for contractors to follow. For example:

• Lighting Layer: Shows the placement and type of light fixtures.
• Electrical Layer: Indicates wiring and outlet placements.
• Mechanical Layer: Includes HVAC and ventilation details.

This approach provides clarity, reduces confusion, and ensures a cohesive execution of your design.

Hack 4: Streamline Approvals with Permit-Ready Drawings

Many renovation projects require permits, and RCPs that comply with local building codes can expedite the approval process. Ensure your drawings:

• Include all required technical specifications.
• Adhere to municipal guidelines.
• Highlight safety features like fire alarms and emergency lighting.

Permit-ready RCPs not only save time but also boost client confidence in your professionalism.

Hack5: Incorporate client feedback during the design phase

To get the most out of your RCPs? Maximizing your RCPs for project success by using the plans as a communication tool for client’s meetings and during construction meetings.

At MeasureBuilt, we always update the RCP as needed to reflect any on-site changes. We support interior designers at every stage of their project journey—starting from the initial ideation and continuing through to the final execution. Whether it’s helping to clarify concepts, optimize designs, or ensure seamless coordination during implementation, our goal is to guide you every step of the way, making sure your vision comes to life perfectly.
