Outsource As Built Survey Vancouver: DIY vs Pro Guide

In the high-stakes world of Vancouver real estate and construction, precision isn't optional - it's the foundation of every successful project. Whether you're planning a residential renovation in Greater Vancouver or managing a commercial retrofit in the downtown core, everything starts with one critical question: what actually exists on site today?

This is where many property owners, designers, and builders face a common dilemma: Should you document existing conditions yourself, or outsource as-built survey services in Vancouver to professionals?

The decision goes far beyond upfront cost. It affects risk management, BC Building Code compliance, permitting timelines, and the overall success of your renovation or development.

What Is an As-Built Survey - and Why It Matters

An as-built survey is the process of documenting a building exactly as it exists, including all deviations from the original design. Over time, most properties accumulate undocumented changes - shifted walls, relocated plumbing, lowered ceilings, or structural alterations.

In a city like Vancouver, where construction standards are strict and property values are high, relying on outdated drawings or informal contractor markups can lead to serious (and costly) mistakes. Accurate floor plans and reliable construction documentation are not "nice to have" - they are essential tools for modern architecture, engineering, and interior design.

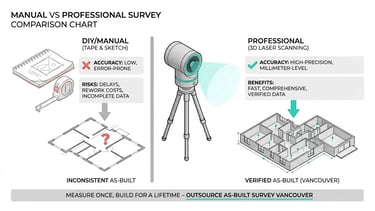

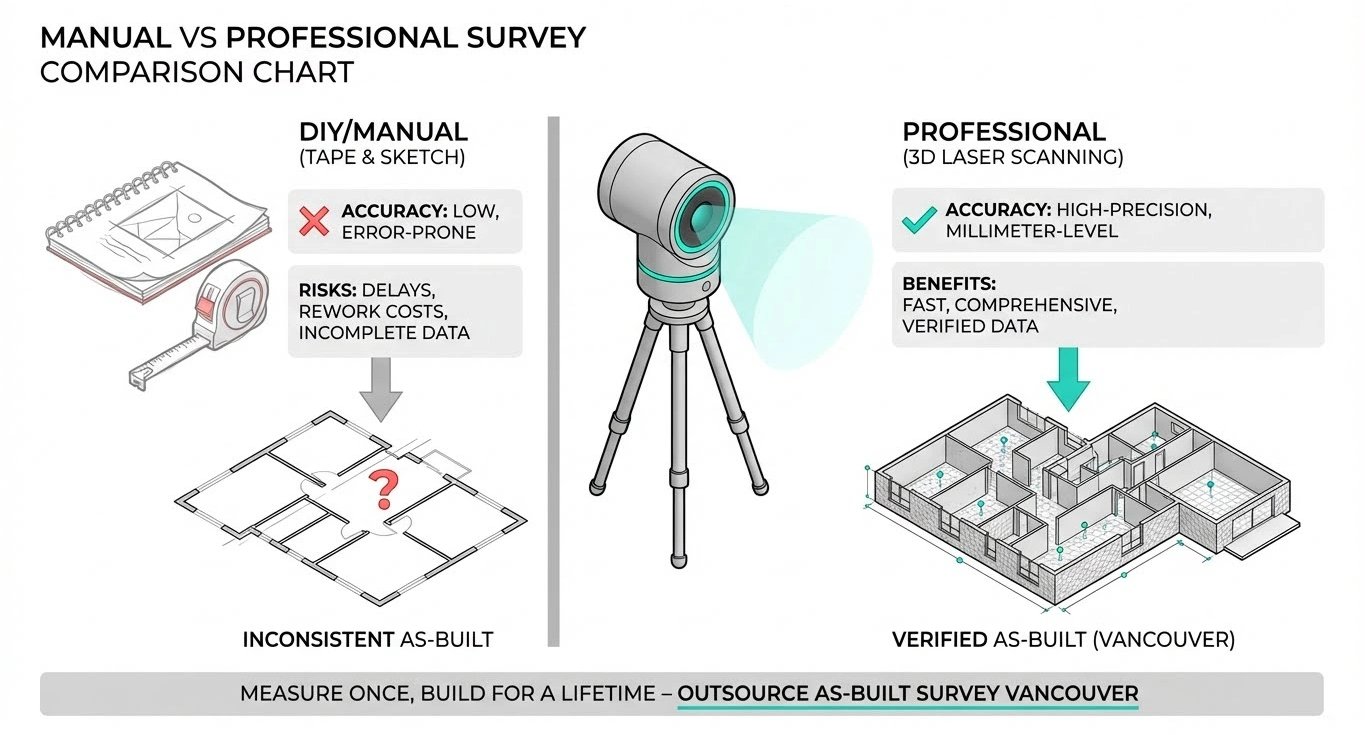

The Evolution of Precision: Why Manual Measurements Fall Short

Traditionally, as-built documentation relied on tape measures, clipboards, and hand-drawn sketches. While this approach might work for very minor cosmetic updates, it quickly breaks down on projects requiring:

• Building permit drawings

• Structural or MEP coordination

• Multi-trade renovations

• Commercial or mixed-use spaces

Manual measurement introduces unavoidable human error. A few millimeters of inaccuracy can cascade into major conflicts between new construction elements and existing mechanical, electrical, or plumbing systems.

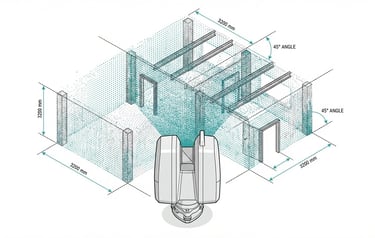

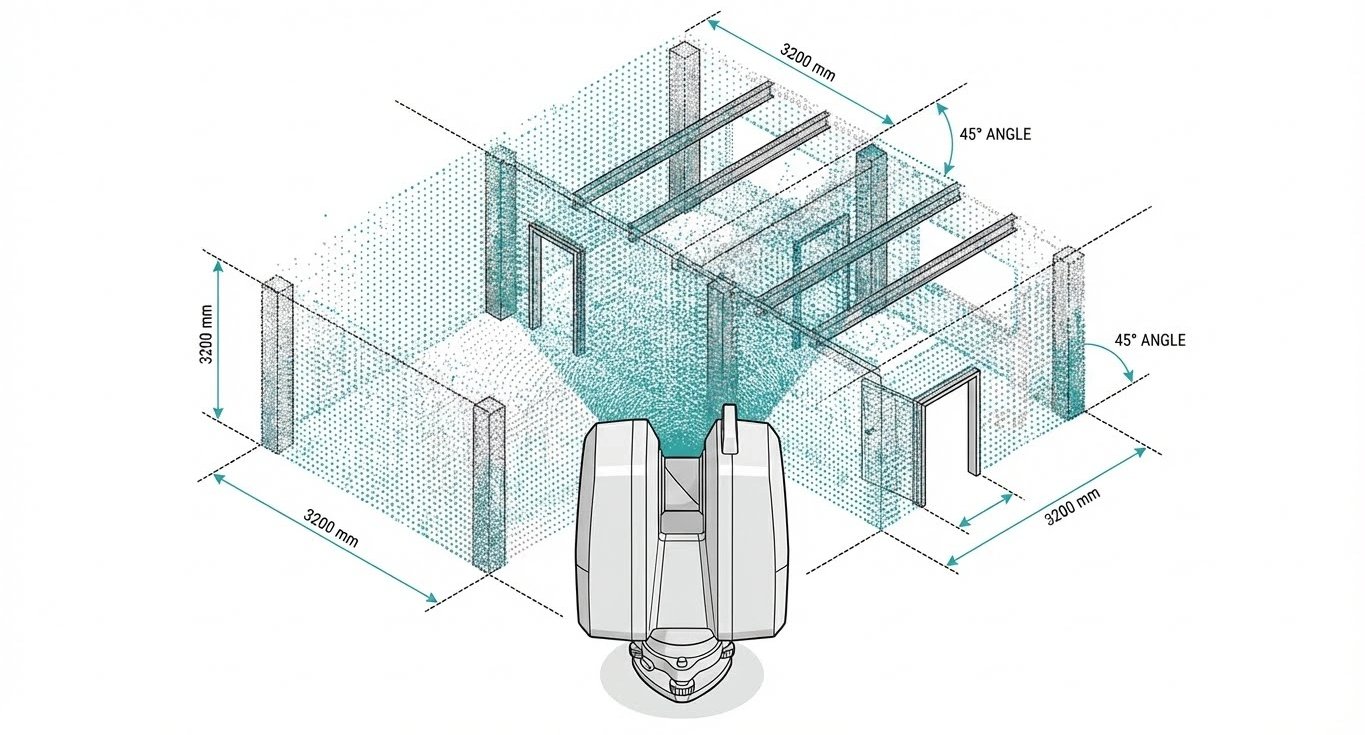

The Modern Standard: 3D Laser Scanning & LiDAR

Today, professional as-built surveys in Vancouver are driven by 3D laser scanning and LiDAR technology. These tools capture millions of data points per second, producing a highly accurate point cloud - a digital twin of your property.

When you outsource as-built surveys to a specialized firm, you're not just receiving drawings. You're investing in a single source of truth that designers, engineers, and contractors can trust throughout the entire project lifecycle.

The Hidden Risks of DIY "Markup" Drawings

DIY documentation is often motivated by the desire to save money early on. However, there's a critical difference between informal contractor markups and professionally verified as-built drawings.

Contractor markups are typically quick sketches created during construction to note changes. They are rarely measured, verified, or suitable for future design, permitting, or legal purposes.

Common Risks of Unverified As-Built Data in Vancouver

• Design errors: Custom millwork, cabinetry, or partitions don't fit as planned

• Budget overruns: Hidden utilities or structural conflicts lead to costly change orders

• Permit rejections: Incomplete or inaccurate drawings delay approvals

• Schedule delays: Mid-project discoveries halt construction while plans are revised

In Vancouver's fast-moving construction environment, these risks can derail a project quickly.

Why Outsource As-Built Survey Services in Vancouver?

Outsourcing gives you access to specialized expertise, advanced technology, and local regulatory knowledge that is rarely available in-house.

1. Advanced 3D Laser Scanning Capabilities

Professional survey firms use terrestrial laser scanners - and when needed, drones - to capture true building geometry. The resulting data can be converted into:

• CAD drawings (DWG, PDF)

• BIM models (Revit)

• Detailed MEP layouts

This eliminates guesswork and ensures downstream accuracy.

2. Scalability & Efficient Resource Management

Outsourcing frees your internal team to focus on design, project management, or business development instead of spending days collecting measurements. You gain flexibility to scale up or down without investing in expensive equipment or full-time survey staff.

3. Deep Knowledge of Vancouver Regulations

Vancouver has unique municipal requirements for as-built documentation, grade surveys, and permit submissions. A local professional firm understands:

• City of Vancouver bylaws

• BC Building Code requirements

• Formatting standards for permit drawings

This knowledge helps streamline approvals and avoid costly resubmissions.

4. Quality Assurance You Can Rely On

Reputable survey firms follow strict QA/QC procedures. Every dimension, annotation, and layer is checked against field data - significantly reducing errors before construction begins.

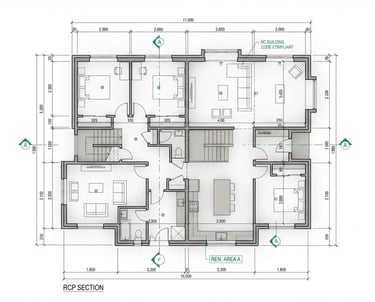

Essential As-Built Deliverables for Vancouver Projects

A professional as-built package is far more than a simple floor plan. Depending on your needs, it may include:

• Accurate floor plans: Wall thicknesses, door swings, and precise room dimensions

• Reflected ceiling plans (RCPs): Lighting, HVAC diffusers, sprinklers, and ceiling heights

• Interior & exterior elevations: Sill and lintel heights, finishes, and architectural features

• MEP & fire safety drawings: Mechanical, electrical, plumbing, and life-safety systems

• Roof & site plans: Slopes, drainage, building footprint, and site context

These deliverables become the backbone of renovation planning and construction coordination.

Who Benefits Most from Accurate As-Built Surveys?

Interior Designers

Precise as-builts are essential interior design tools. They enable accurate space planning, reduce site visits, and ensure that furniture, millwork, and fixtures fit perfectly - especially in high-end residential projects.

Contractors & Builders

Builders rely on verified dimensions to produce realistic estimates, avoid trade clashes, and minimize change orders. Accurate documentation provides the clarity needed to build efficiently and profitably.

Property Owners & Real Estate Professionals

In Vancouver's competitive market, professional floor plans add tangible value. Verified as-built records support property management, leasing analysis (including BOMA standards), future renovations, and resale.

Understanding BC Surveying Standards & Legal Requirements

In British Columbia, land surveying is regulated by the Association of British Columbia Land Surveyors (ABCLS). Any work involving property boundaries must be performed or supervised by a British Columbia Land Surveyor (BCLS).

Under the Land Survey Act of BC, boundary monuments are legally protected and must be located and preserved correctly - especially for projects near property lines or involving additions.

Many Vancouver projects also fall within Integrated Survey Areas, requiring all new monuments to be tied into official coordinate control systems. This ensures today's data remains accurate and legally defensible for decades.

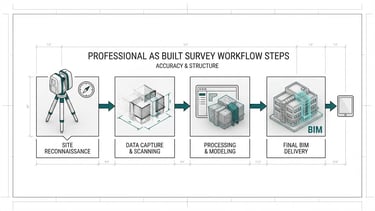

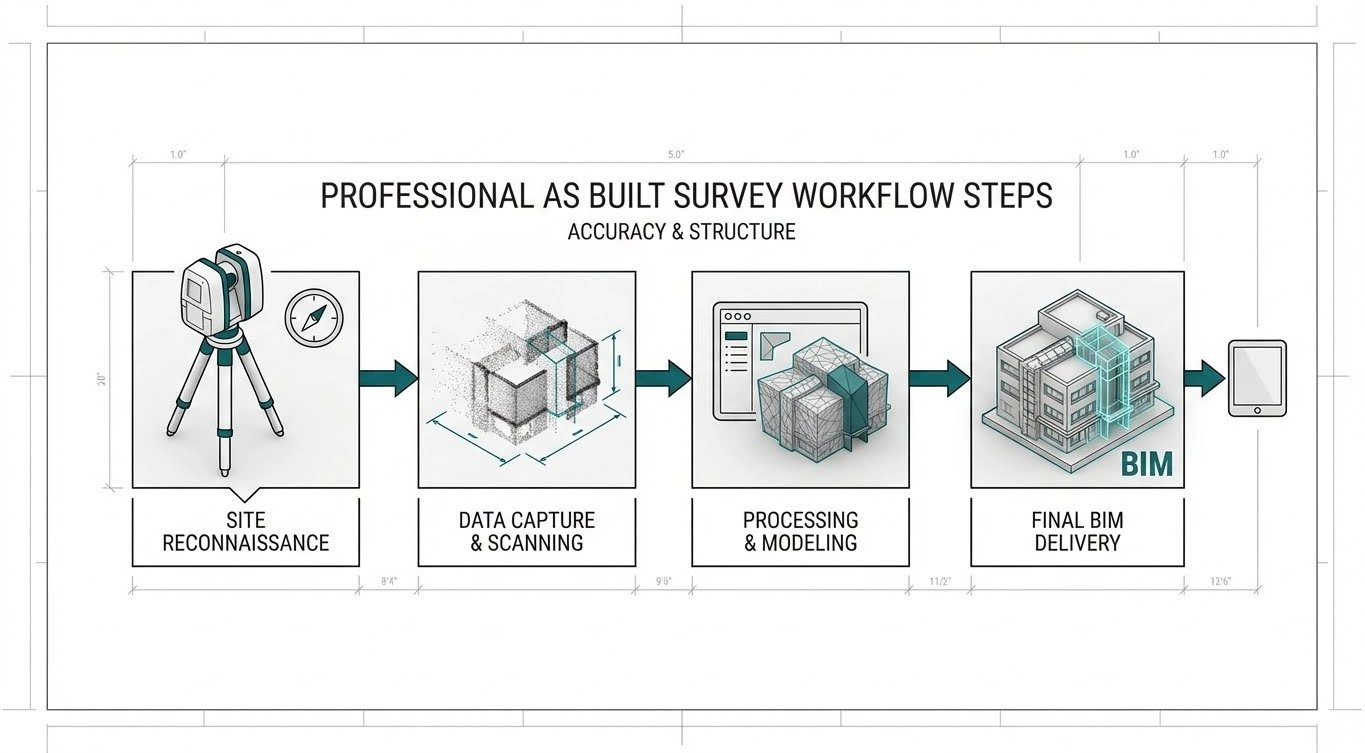

The Professional As-Built Survey Workflow

When you outsource as-built surveys in Vancouver, you can expect a structured, proven process:

1. Project definition – scope, accuracy tolerances, deliverables

2. Record research – review of existing drawings and surveys

3. Site reconnaissance – safety review and control setup

4. High-precision data capture – 3D laser scanning of geometry and MEP

5. Drafting & modeling – CAD, PDF, or BIM production

6. Quality assurance – verification against field data

7. Final delivery – DWG, PDF, Revit, or custom formats

Cost vs. Value: Why Professional Surveys Pay for Themselves

While professional as-built surveys may appear more expensive upfront, they consistently deliver long-term savings. Reduced rework, fewer site visits, and minimized errors quickly offset the initial cost.

A single major mistake - such as misaligned cabinetry or damaged utilities - can cost thousands and delay a project by weeks. For commercial projects, 3D laser scanning can reduce field time by 60-80%, accelerating the path to occupancy and revenue.

Permitting & Compliance: The Final Test

Municipalities like the City of Vancouver require accurate, professionally prepared as-built documentation for permit approvals and occupancy. Attempting to meet these standards without professional equipment and expertise often results in rejected applications and costly delays.

Conclusion: Build with Confidence from Day One

Choosing to outsource as-built survey services in Vancouver is a strategic investment in accuracy, compliance, and peace of mind. In the complex landscape of Greater Vancouver construction and renovation, precision isn't a luxury - it's a necessity.

By leveraging advanced 3D laser scanning, aligning with BC Building Code requirements, and providing all stakeholders with reliable documentation, you eliminate guesswork and reduce risk.

Whether you're an interior designer refining a layout or a contractor aiming for a clash-free build, every successful project starts with one thing: verified, professional as-built data.

When details matter, trust professionals who combine traditional surveying expertise with today's digital technology. Your Vancouver project deserves nothing less.
