Measuring Services ROI Vancouver: Cut Construction Costs

Investing in professional measuring services and 3D laser scanning is more than just a cost—it's a strategic move that delivers measurable returns for property owners, contractors, and design professionals in Vancouver. By preventing costly construction rework, eliminating system clashes, and accelerating municipal permit approvals, professional surveying transforms measurement from a line-item expense into a risk-mitigation asset.

In the Greater Vancouver market, inaccurate or outdated measurements can lead to change orders averaging 5% to 15% of total project value, proving that professional documentation often pays for itself before construction even begins.

Why Professional Measuring Services Matter in Vancouver

Relying on manual tape measurements or legacy 2D blueprints exposes projects to financial, operational, and regulatory risk. Modern measuring services deploy advanced technologies, including LiDAR scanning and Scan-to-BIM workflows, to produce millimeter-accurate digital twins of existing conditions.

Key Benefits:

• Eliminates unforeseen site conflicts

• Streamlines permitting processes with accurate BC Building Code compliance

• Ensures precise MEP (Mechanical, Electrical, Plumbing) integration

• Reduces costly change orders and material waste

By investing in professional scanning upfront, project managers protect budgets, timelines, and design integrity.

Core Analysis: Industry Logic and Financial Impacts

In the Architecture, Engineering, and Construction (AEC) sector, ROI from professional measurement is undeniable. The logic is simple: accurate data eliminates guesswork. When rework typically consumes 5–12% of a project's budget, professional scanning is essentially an insurance policy that pays for itself.

BC Building Code Implications

The BC Building Code requires strict adherence to spatial and structural tolerances. Whether performing a seismic upgrade or a multi-family retrofit, millimeter-accurate scans ensure architectural plans reflect reality, preventing:

• Permit rejections

• Structural violations

• Delays due to undocumented conditions

Professional 3D scanning captures existing conditions with 1–3mm precision, giving Vancouver projects an edge in municipal approvals.

Renovation Workflows in Greater Vancouver

Vancouver's mix of aging infrastructure and modern developments makes renovations complex. Professional measuring services provide a single, hyper-accurate baseline, eliminating common communication breakdowns and reducing risk of rework.

Measurement Accuracy and Quality Assurance

• Manual measurement: ±13mm, highly susceptible to human error

• 3D laser scanning: ±1–3mm, providing sub-millimeter accuracy

Point cloud data allows designers to overlay scans on project models, performing instant deviation analysis for QA.

Scan-to-BIM and Documentation Standards

Scan-to-BIM transforms point clouds into intelligent 3D BIM models, enabling:

• Digital clash detection

• Efficient coordination between MEP, architectural, and structural teams

• Reduced field rework, saving thousands of dollars

This workflow is now the gold standard for Vancouver projects, particularly for high-density condos, heritage restorations, and complex commercial retrofits.

Risk Mitigation and Cost Control

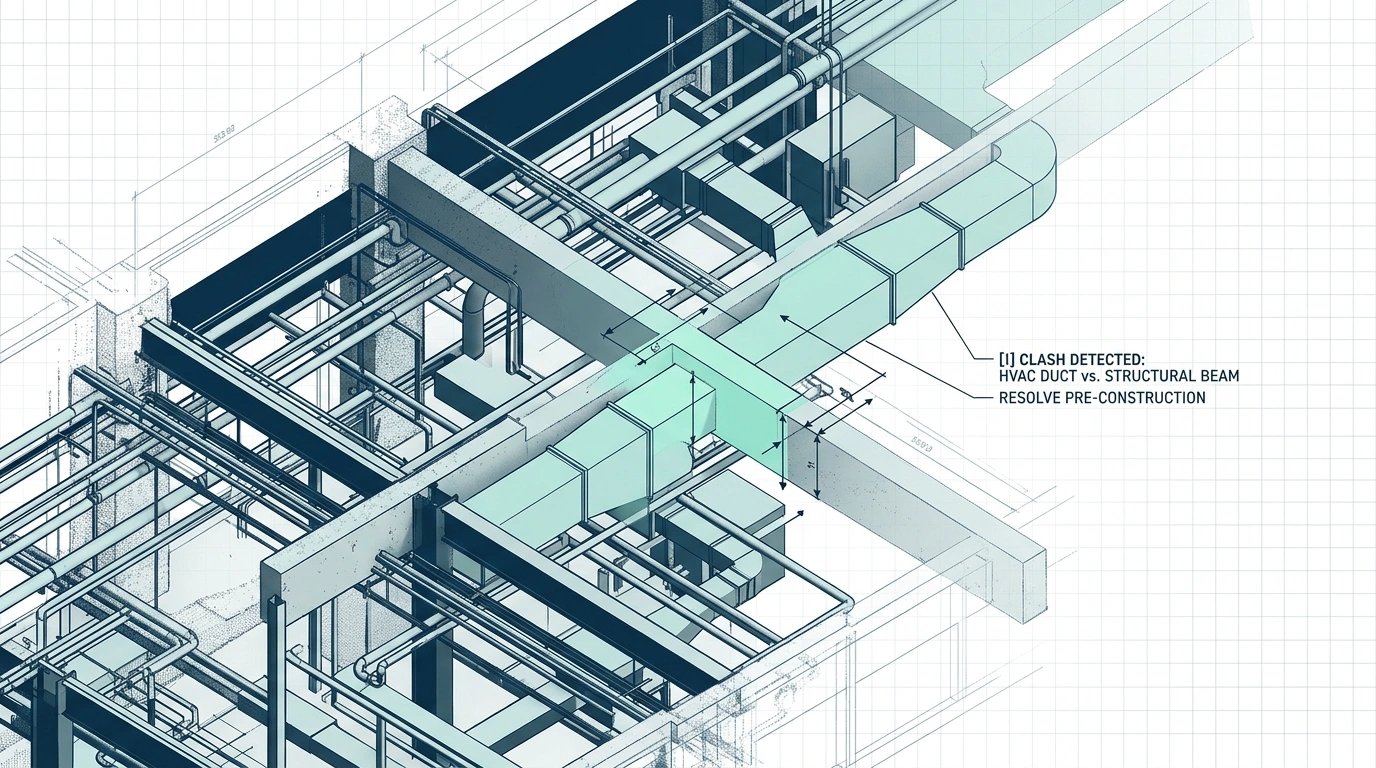

Early detection of hidden structural or MEP conflicts can save substantial costs. Example: discovering a hidden post-tensioned beam during HVAC installation could trigger a $50,000+ change order. A pre-construction laser scan identifies conflicts digitally, often yielding ROI exceeding 1,400%.

Extended Scenarios: Practical ROI Analysis

Scenario 1: Complex MEP Coordination in Commercial Retrofits

• Technical context: 3D laser scanners capture existing pipes and ductwork above drop ceilings

• Workflow impact: Engineers plan new routes using point cloud data and digital clash detection

• Financial implications: Resolving conflicts digitally is 10x cheaper than field fixes

• Regulatory considerations: Ensures BC Fire Code and municipal clearance compliance

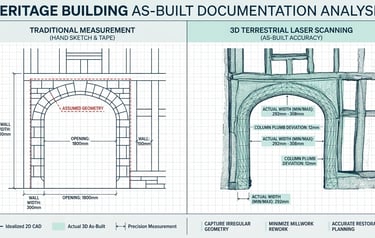

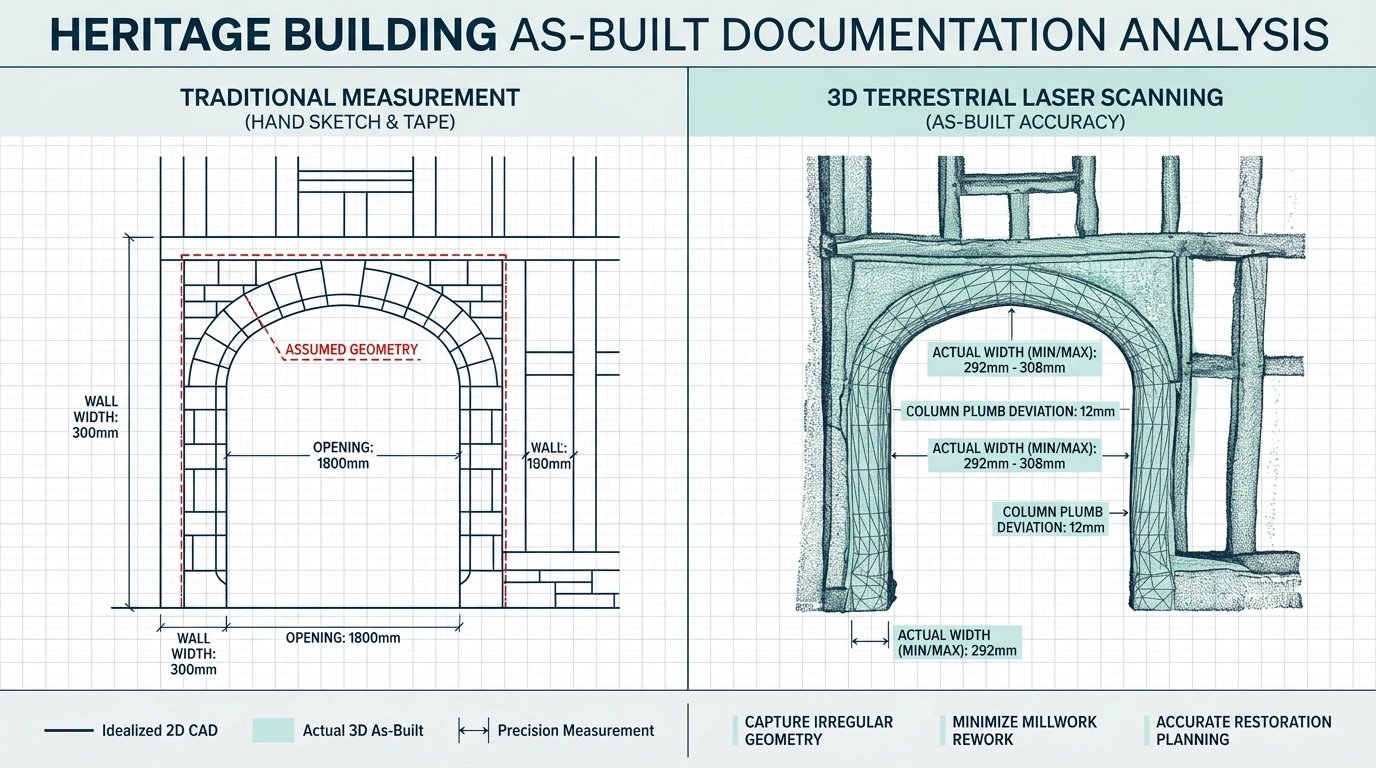

Scenario 2: Heritage Building Restorations

• Technical context: Older Vancouver buildings feature irregular geometries and sagging floors

• Workflow impact: Terrestrial laser scanning captures intricate details without physical contact

• Financial implications: Prevents costly errors when fabricating custom historical millwork

• Regulatory considerations: Provides detailed documentation for heritage committee approvals

Scenario 3: Municipal Permitting and Residential Additions

• Technical context: Accurate property boundaries and roof pitches captured via 3D scans

• Workflow impact: Scan data converted into 2D as-built floor plans for permit applications

• Financial implications: Fast-tracking permits avoids months of holding costs (taxes, interest)

• Regulatory considerations: Ensures compliance with Vancouver's Floor Space Ratio (FSR) and setbacks

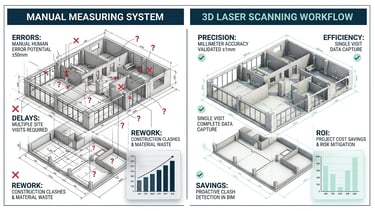

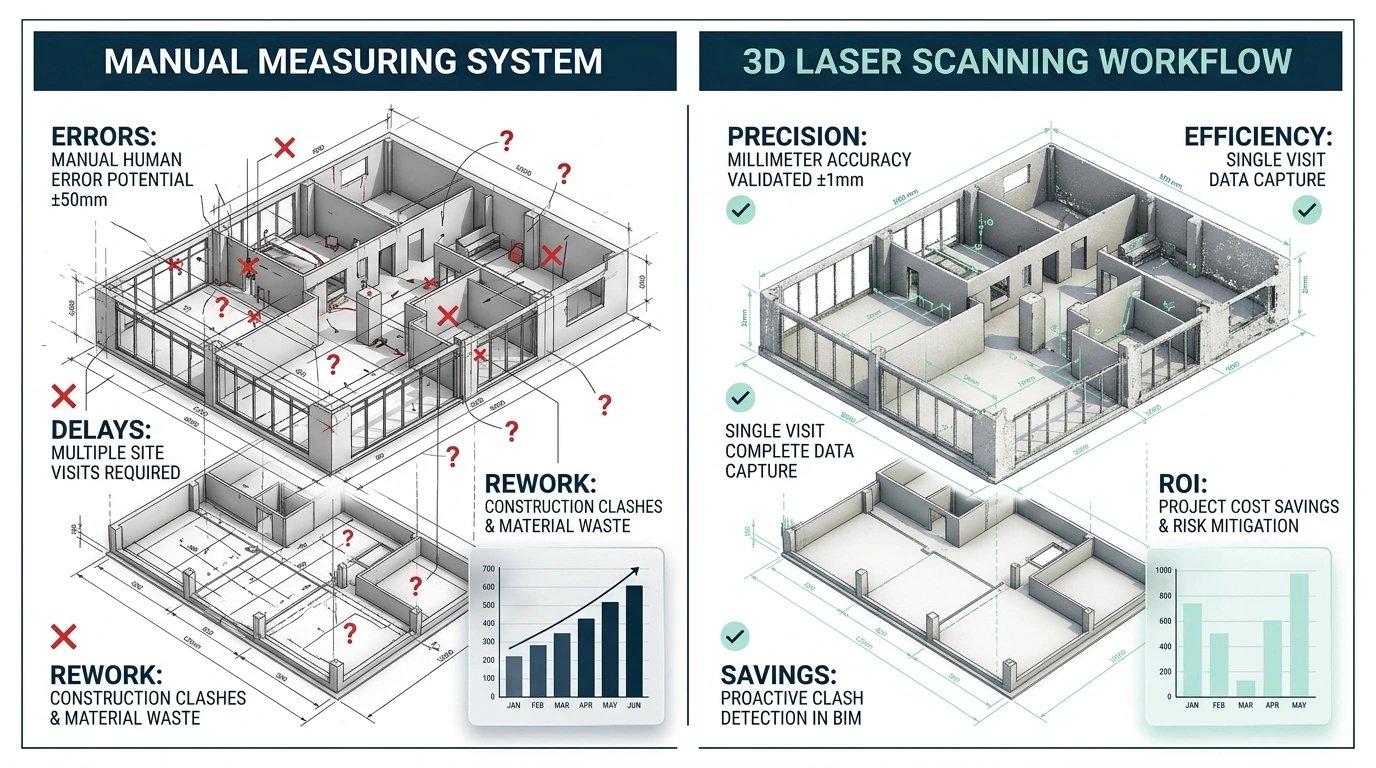

ROI Comparison: Manual Measurement vs Professional 3D Scanning

Accuracy

• Traditional manual measurement: ±13–25mm; human error prone

• Professional 3D laser scanning: ±1–3mm; mathematically precise

• ROI / Financial impact: Eliminates re-fabrication costs

Time on Site

• Traditional manual measurement: Days or weeks; frequent returns

• Professional 3D laser scanning: Hours to days; no return visits

• ROI / Financial impact: Reduces labor costs and downtime

Clash Detection

• Traditional manual measurement: Reactive; discovered on-site

• Professional 3D laser scanning: Proactive; resolved digitally

• ROI / Financial impact: Saves $10,000–$100,000+

Data Utility

• Traditional manual measurement: Flat 2D sketches

• Professional 3D laser scanning: 3D environments, BIM-ready

• ROI / Financial impact: Maximizes downstream efficiency

Risk Profile

• Traditional manual measurement: High

• Professional 3D laser scanning: Low; total spatial transparency

• ROI / Financial impact: Protects contingency and profit margins

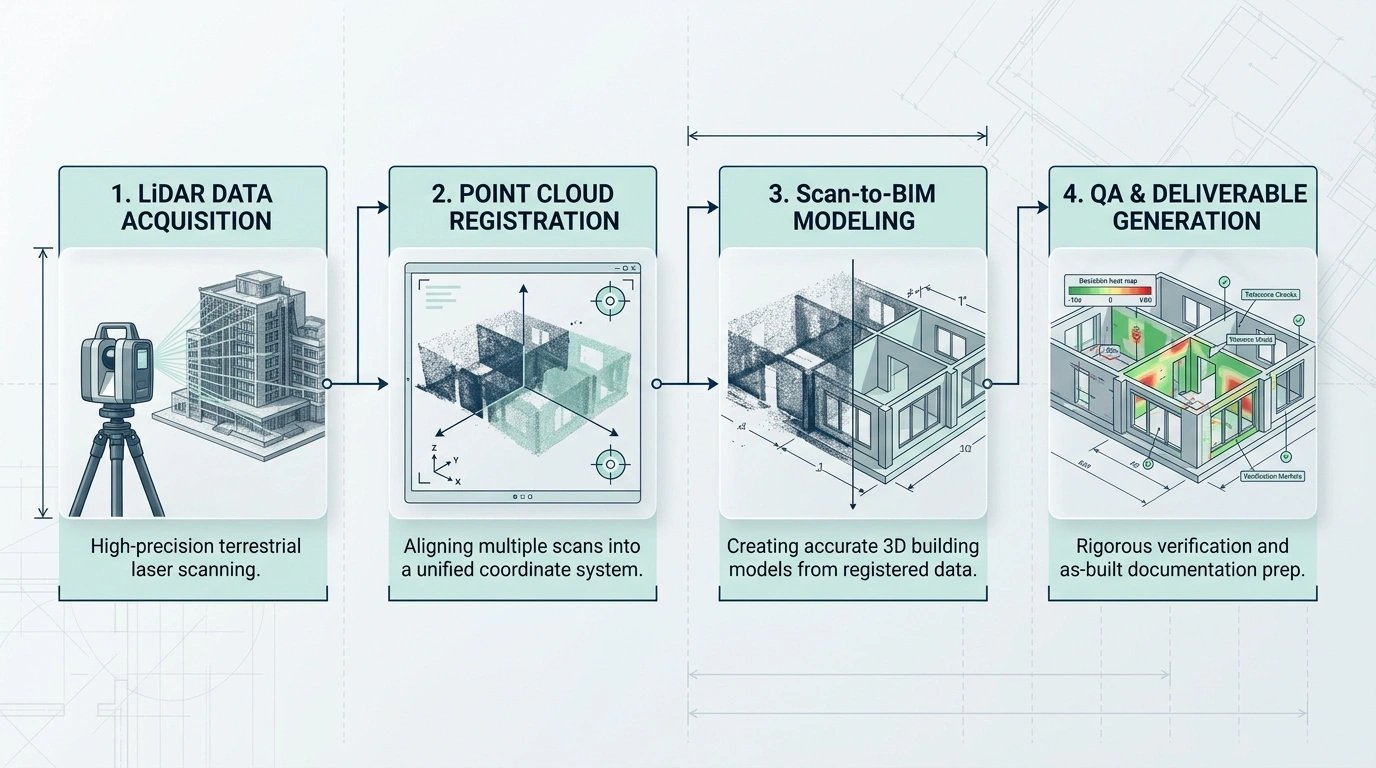

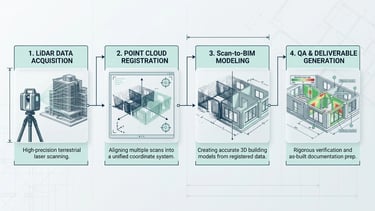

Methodology: Workflow Logic

• Technical context: LiDAR scanners sweep every surface, capturing millions of points

• Workflow impact: Individual scans stitched to create a unified 3D model

• Financial implications: Reduces site-visit costs and billable hours

• Regulatory considerations: Scan-to-BIM / CAD drafting — point clouds converted into 2D floor plans and intelligent 3D models; models cross-referenced against raw scans for millimeter-level accuracy

Myth-Busting: Professional Measuring Services

Myth 1: Scanning is too expensive for standard renovations

Fact: Cost is a fraction of the potential $50,000+ error from manual measurement

Myth 2: Contractor hand measurements are sufficient

Fact: Walls are rarely straight; hand measurements miss subtle structural deviations

Myth 3: Matterport tours are equivalent to 3D laser scanning

Fact: Matterport lacks survey-grade accuracy needed for engineering

Myth 4: Scanning slows pre-construction

Fact: Scanning accelerates workflows and eliminates repeated site visits

FAQ: Professional Measuring and Scanning Services in Vancouver

1. How much do measuring services cost in Vancouver?

• Small residential 2D as-builts: $1,000–$3,500

• Medium commercial Scan-to-BIM: $8,000–$30,000

2. What is the typical ROI?

• Reduces rework costs by 5–15% of total project value

• ROI often 1,000–1,500% of scanning cost

3. Why are laser scanners better than manual measurements?

• Captures millions of points per second with millimeter accuracy

• Eliminates blind spots in floors, ceilings, and hidden MEP systems

4. How does Scan-to-BIM reduce change orders?

Digital clash detection identifies conflicts before construction.

5. Are 3D scans required for Vancouver permits?

Not mandatory, but ensures precise, approval-ready as-built documentation.

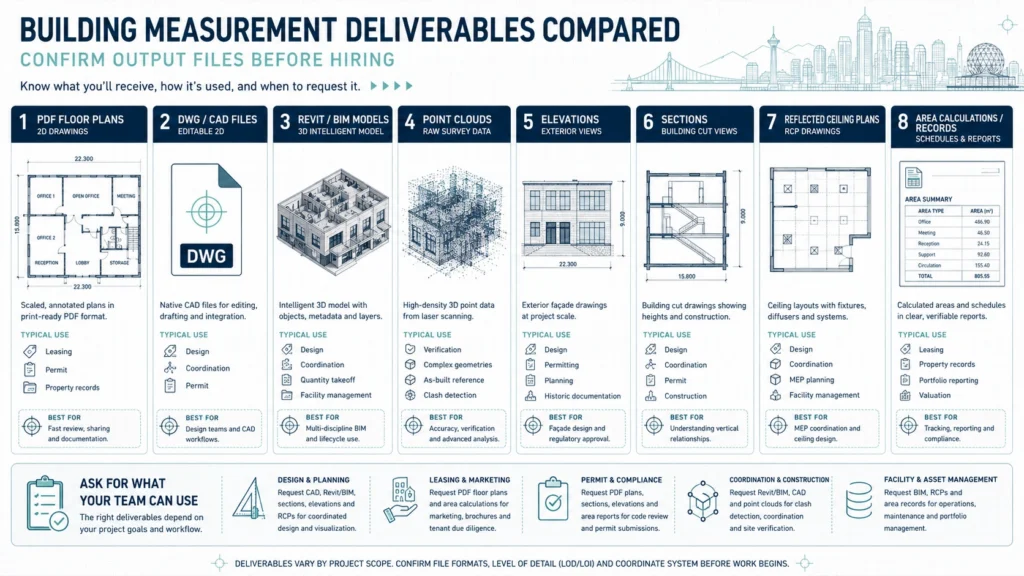

6. What deliverables should I expect?

• Raw point clouds (.RCP / .E57)

• Accurate 2D CAD drawings (.DWG / PDF)

• Intelligent 3D BIM models (.RVT)

7. How long does scanning take?

• Single-family homes / small commercial: few hours

• Large commercial: several days

• Drafting & processing: 1–3 weeks

8. Can 3D scanning capture outdoor exteriors and site topography?

Yes. LiDAR scanners and drones map rooftops, terrain, and site conditions accurately.

Conclusion

For Vancouver property owners, contractors, and interior designers, professional measuring services are more than a tool—they're an investment. By leveraging 3D laser scanning and Scan-to-BIM workflows, projects benefit from:

• Reduced risk and financial exposure

• Accurate municipal permit submissions

• Lower construction costs

• Streamlined project delivery

When analyzed through a ROI lens, investing in professional measurement pays for itself many times over, making it a critical component of modern AEC projects in Greater Vancouver.
