Home Renovation Vancouver: Avoid Disasters with As-Built Surveys

Bypassing accurate as-built drawings is one of the leading causes of catastrophic budget overruns in residential and commercial renovations in Vancouver. Without millimeter-accurate 3D laser scanning services, property owners risk costly mid-project change orders, municipal permit delays, and structural clashes.

Investing in professional as-built surveys provides precise spatial data, aligns contractor estimates, and routinely saves tens of thousands of dollars on home renovations in Vancouver.

For homeowners, developers, and design professionals navigating the Greater Vancouver Area, proceeding without verified existing-conditions documentation is a serious financial risk. Modern 3D laser scanning and Scan-to-BIM workflows have shifted from luxury tools to baseline operational necessities for any renovation project.

The Architectural and Financial Imperative of Accurate Documentation

Renovating a Vancouver home without precise documentation is a guaranteed recipe for disaster. Unreliable measurements often lead to the "horror stories" we hear across the Lower Mainland:

• Tear-down orders from municipalities

• Contractor disputes

• Budgets inflating by $50,000+ before drywall is installed

BC Building Code and Vancouver By-law Compliance

The British Columbia Building Code (BCBC) and Vancouver Building By-law (VBBL) impose strict structural and seismic requirements on renovations. Inaccurate floor plans can:

• Cause immediate permit rejection

• Prevent engineers from designing compliant upgrades

• Lead to cascading project failures

Professional as-built drawings ensure that all load-bearing assemblies and structural elements are accurately documented, forming a reliable baseline for design and permitting.

Renovation Workflows in Greater Vancouver

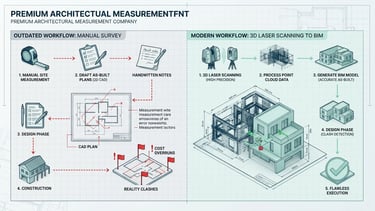

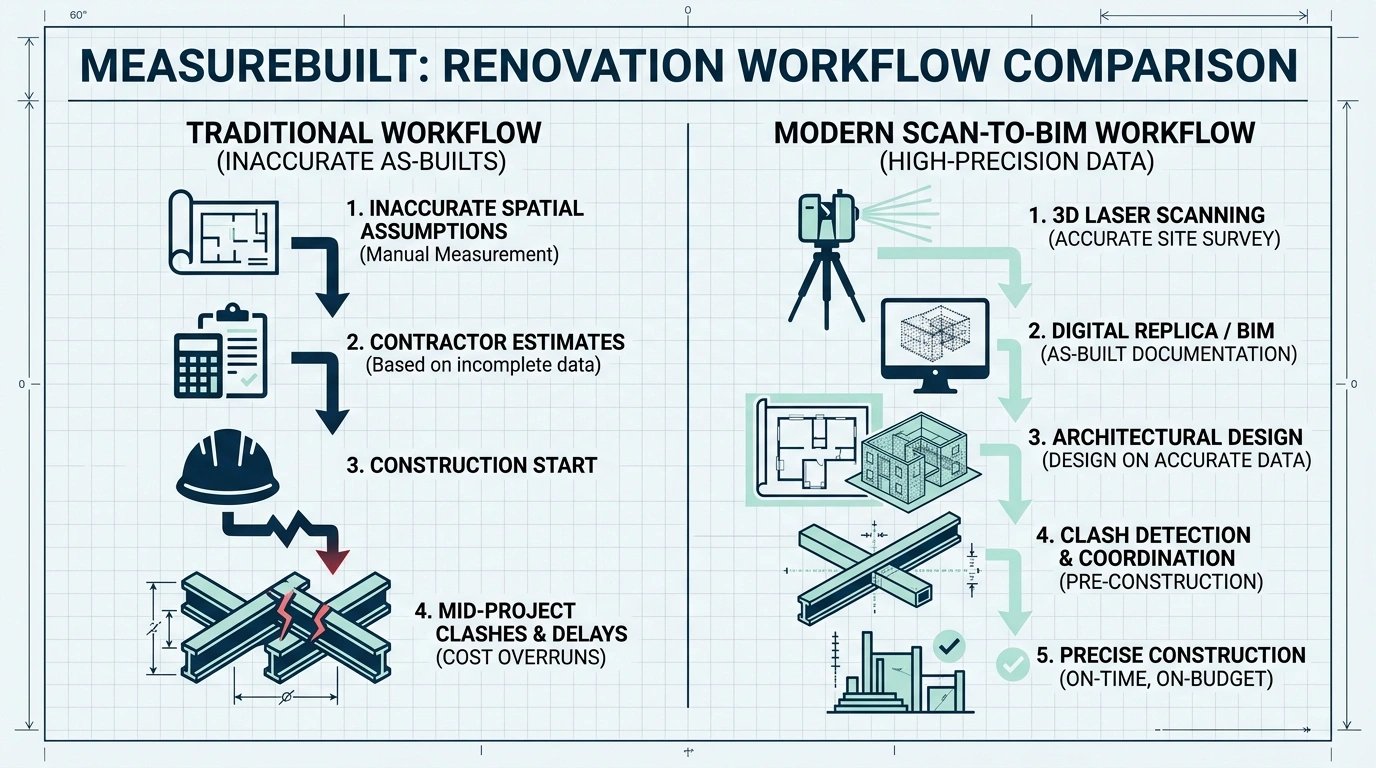

Traditional workflows - drafting 100% of permit drawings before confirming construction costs - often fail. 9 out of 10 permit-ready renovation designs contain errors caused by inaccurate measurements.

Integrating 3D laser scanning services early provides architects and designers with an exact digital replica of the property, mitigating costly surprises during construction.

Measurement Accuracy and Quality Assurance

• Traditional tape measures: ±13mm accuracy; prone to error

• Professional 3D scanning: ±1–3mm accuracy; survey-grade precision

Laser scans generate millions of data points per second, which are validated through rigorous QA protocols to ensure precise measurements.

Scan-to-BIM and Documentation Standards

Scan-to-BIM workflows convert raw point clouds into intelligent 3D models. Benefits include:

• Accurate walls, windows, beams, and MEP systems

• Virtual clash detection to resolve conflicts before construction

• Reduced material waste and on-site rework

This methodology ensures that contractors and sub-trades work from a single source of truth, drastically reducing risk and preserving budgets.

Risk Mitigation and Cost Control

When contractors quote from inaccurate drawings, estimates either include risk premiums or omit critical work, creating 10–20% change orders during construction. Professional as-built documentation eliminates these issues, providing:

• Precise construction documentation

• Reliable contractor estimates

• Lower risk of mid-project delays

Renovating Vancouver Specials and Heritage Homes

Vancouver's older housing stock - like the Vancouver Special or heritage homes - presents unique challenges:

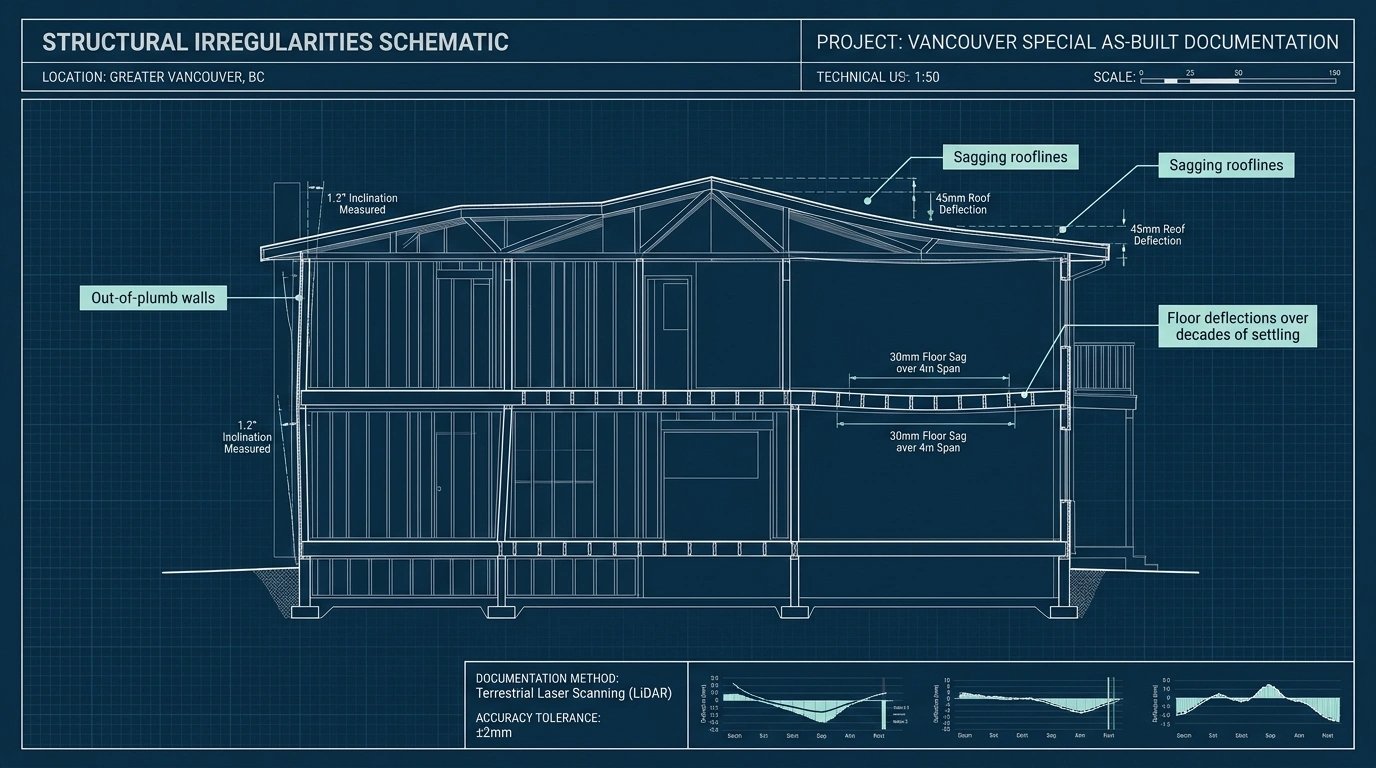

• Technical context: Walls are rarely square, floors sag, and structural irregularities are common

• Workflow impact: Without 3D laser scans, new layouts may be physically impossible to construct

• Financial implications: Framing-stage corrections can cost $30,000–$50,000

• Regulatory considerations: VBBL requires strict energy and seismic compliance

Best practice: Commission a comprehensive 3D laser scan and a detailed Revit BIM model before schematic design begins.

Design-to-Construction Handoff

The handoff from design to construction is the most volatile phase of a renovation. Accurate as-built documentation ensures:

• Verified floor plans, reflected ceiling plans (RCP), elevations, and sections

• Reliable contractor bids without placeholders

• Compliance with permit-approved drawings

Best practice: Require all construction documentation to be based on professionally executed as-built surveys.

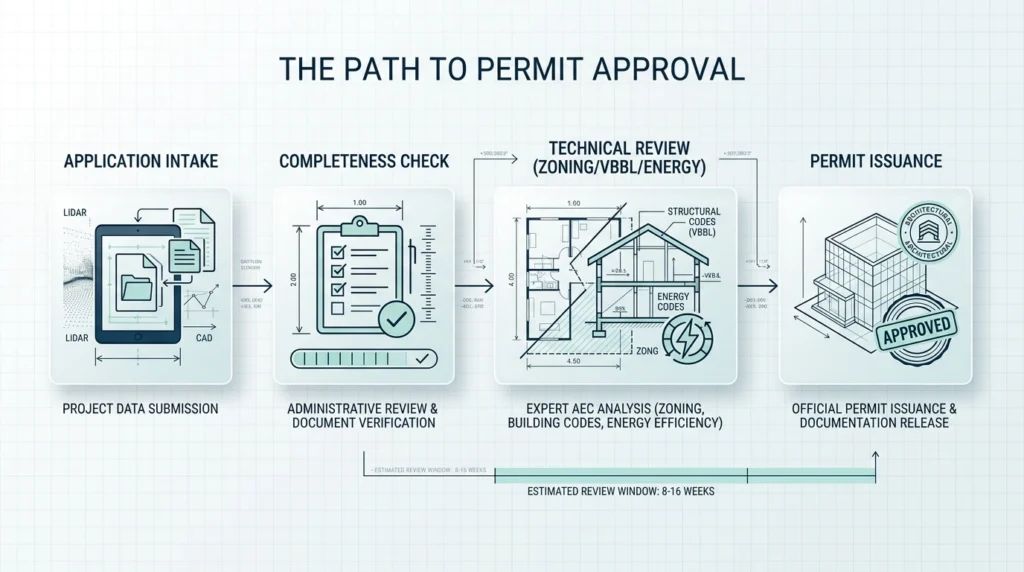

Permitting and Unpermitted Construction Realities

Greater Vancouver has some of the most rigorous municipal permitting processes in North America. Submitting inaccurate plans or bypassing permits can trigger:

• Stop Work Orders

• Mandatory demolition of newly built structures

• Legal and financial liability

Best practice: Always base your permit submission on a professional 3D as-built survey.

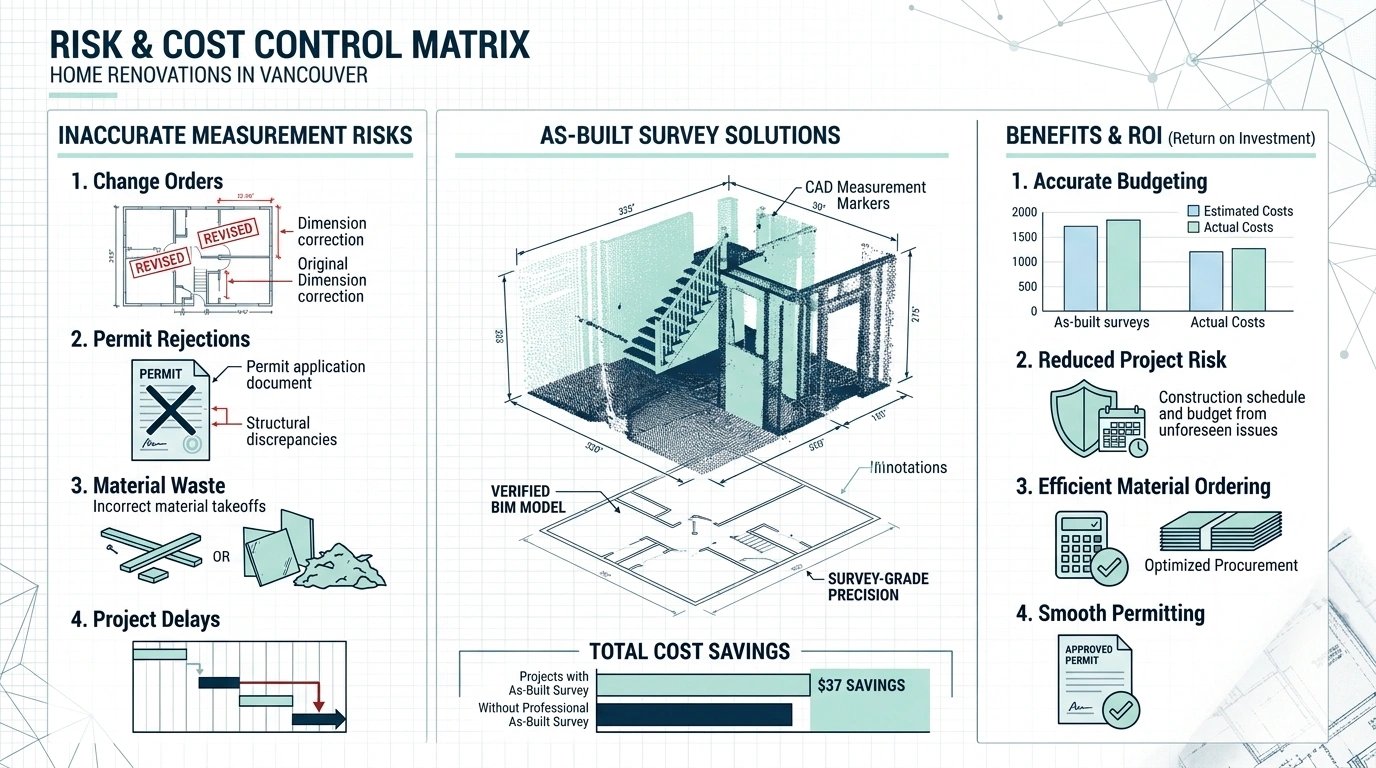

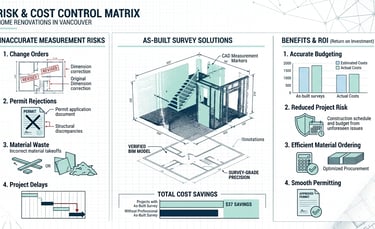

Risk & Cost Control Matrix

Inaccurate FSR / Site Coverage

• Workflow Impact: Design rejected; forced redesign

• Financial Exposure: $5,000–$15,000

• Regulatory Impact: Permit failure

• Mitigation Strategy / ROI: 3D Laser Scanning ensures exact FSR; ROI immediate

Undocumented Structural Elements

• Workflow Impact: Framing halts; engineer on-site

• Financial Exposure: $10,000–$30,000

• Regulatory Impact: Failed inspection; Stop Work Order

• Mitigation Strategy / ROI: Scan-to-BIM identifies clashes digitally

Vague Sub-trade Scopes

• Workflow Impact: RFIs; stalled installation

• Financial Exposure: 10–20% budget increase

• Regulatory Impact: Non-compliant rough-ins

• Mitigation Strategy / ROI: As-Built RCPs & sections enable fixed-price sub-trade bidding

Unpermitted Existing Work

• Workflow Impact: Illegal suites discovered

• Financial Exposure: Total loss; demolition

• Regulatory Impact: Legal liability; Stop Work Order

• Mitigation Strategy / ROI: Professional survey flags unpermitted expansions pre-construction

Implementing 3D Laser Scanning Methodology

• Technical context: LiDAR scanners emit laser pulses to measure every visible surface, creating a dense point cloud

• Workflow impact: Entire property mapped in a fraction of manual measurement time

• Financial implications: Reduces site-visit costs and billable hours

• Regulatory considerations: Accepted by municipal authorities and structural engineers

• Best practice: Specify Level of Development (LOD) when commissioning Scan-to-BIM projects

Myth-Busting As-Built Surveys

Myth 1: Original blueprints are sufficient

Fact: Settling and undocumented renovations make old plans inaccurate

Myth 2: Tape measures are enough

Fact: Cannot capture out-of-square corners or floor deflection

Myth 3: As-built surveys are the same as land surveys

Fact: Land surveys map property lines; as-built surveys map the building for design and permits

FAQ: As-Built Drawings for Vancouver Renovations

1. What is an as-built drawing?

A scaled, accurate representation of a building's current condition, including walls, structural elements, and mechanical systems.

2. How does 3D laser scanning improve renovation planning?

LiDAR captures millions of precise points, creating a digital twin and eliminating human error.

3. Can inaccurate measurements really cost $50,000+?

Yes. Contractors must halt work to resolve spatial conflicts, inflating budgets by 10–20%.

4. Difference between a land surveyor and as-built company?

Land surveyor: maps property boundaries

As-built company: maps architectural and structural realities for design and permits

5. Will original house blueprints work for permits?

Generally no; municipalities require current, scaled, and accurate drawings.

6. Deliverables from as-built surveys:

• Registered point cloud

• 2D AutoCAD DWG (Floor Plans, RCPs, Elevations)

• PDF drawing sets

• 3D BIM model (Revit)

7. How do accurate as-builts prevent change orders?

Contractors base estimates on millimeter-accurate data, eliminating ambiguity.

8. Consequences of building without approved permits:

Severe legal and financial repercussions, including Stop Work Orders and possible demolition.

Conclusion

For Vancouver homeowners, developers, and architects, skipping professional as-built drawings is a financial and regulatory gamble. Using 3D laser scanning and Scan-to-BIM workflows:

• Eliminates costly errors and delays

• Ensures BC Building Code and VBBL compliance

• Provides contractors with precise, verifiable data

• Maximizes ROI and protects capital investment

In short, as-built surveys are not optional - they are essential for safe, efficient, and financially secure renovations in Greater Vancouver.
